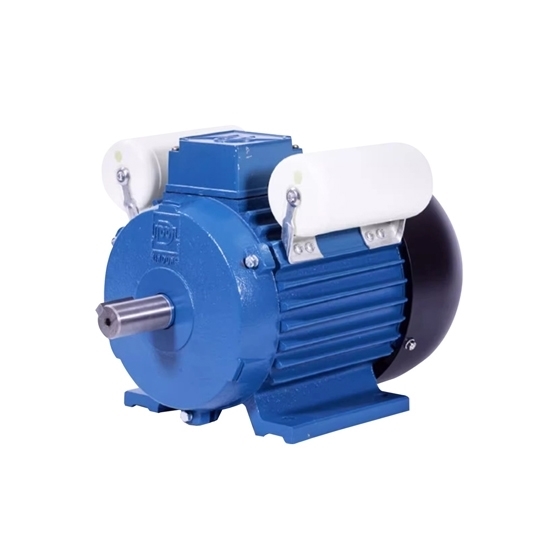

3 hp single phase motor, is also called an asynchronous motor. It has 1500rpm/3000rpm speed, 220V/110V/230V/240V voltage, and works at 50Hz/60Hz frequency. 2.2kW 1 phase motor is available with two capacitors, offers zero starting torque at rest, used for drills, air conditioners, compressors, pumps, cranes, garage door opening and closing systems.
Specifications
Model |
ATO-YL90L-2 |
ATO-YL100L1-4 |
Rated Output |
2.2kW (3hp) |
Efficiency |
77% |
77% |
Power Factor |
0.95 COSφ |
Rated Speed |
2820rpm |
1420rpm |
Rated Current |
13.1A |
13.3A |
Pole |
2 Pole |
4 Pole |
Voltage |
220V AC 50Hz (Default), other customizations can be customized. |
Tmax/Tn |
1.8 times |
Ts/Tn |
1.7 times |
ls/ln |
80 times |
80 times |
Dimension (Unit: mm)

Frame Size |
Mounting Dimension |
Overall Dimension |
A |
B |
C |
D |
E |
F |
G |
H |
K |
AB |
AC |
AD |
AE |
HD |
L |
90L |
140 |
125 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
180 |
185 |
160 |
130 |
240 |
400 |
100L |
160 |
140 |
63 |
28 |
60 |
8 |
24 |
100 |
12 |
205 |
220 |
180 |
140 |
260 |
430 |
Details

Tips: Advantages of single phase asynchronous motors
A single phase asynchronous motor is a motor powered by a single-phase AC power source. It has a simple structure, low cost, reliable operation, low vibration and noise, and convenient maintenance. Due to the universality of the power supply, it is widely used in industrial and agricultural production, electronic instruments, medical equipment and household appliances.
