3 kW Air Cooling BLDC Motor For Electric Vehicle

Buy 3 kW brushless DC motors for electric vehicles online, air-cooled BLDC motors with 48V/60V/72V voltage ratings and 10 N.m torque ratings. The high-power BLDC motor has a higher torque to weight ratio and is paired with a brushless controller to make the vehicle lighter while still providing sufficient torque.

Specifications

• Model: ATO-HPM3000A
• Voltage: 48V/60V/72V (Optional)
• Rated Power: 3 kW
• Peak Power: 6 kW
• Rated Current: 75A/55A
• Max Phase Current: 240A/220A
• Protection Class: IP54
• Efficiency: >90%
• Rated Speed: 3600rpm
• Rated Torque: 10 N.m
• Peak Torque: 25 N.m
• Poles: 8
• Weight: 8 kg
• Matched Controller: ATO-VEC200
• Cooling System: Air cooling
• Dimension: 18cm dia. 12.5cm height
• Measurement: 25cm*25cm*26cm/CTN

Features

• 3 kW brushless dc motor has a compact design, water resistant, stainless steel shaft and self-cooling fan.
• An air-cooled brushless motor is easy to build and requires no additional equipment.
• If you want to build an electric motorcycle with plenty of air to provide cooling air, the cooling system will be your best choice.

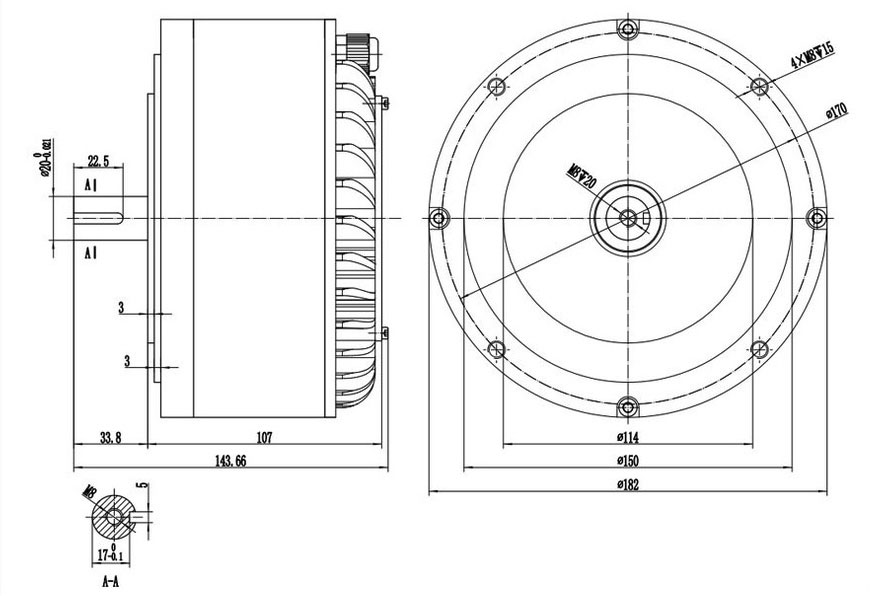

Dimensions (Unit: mm)

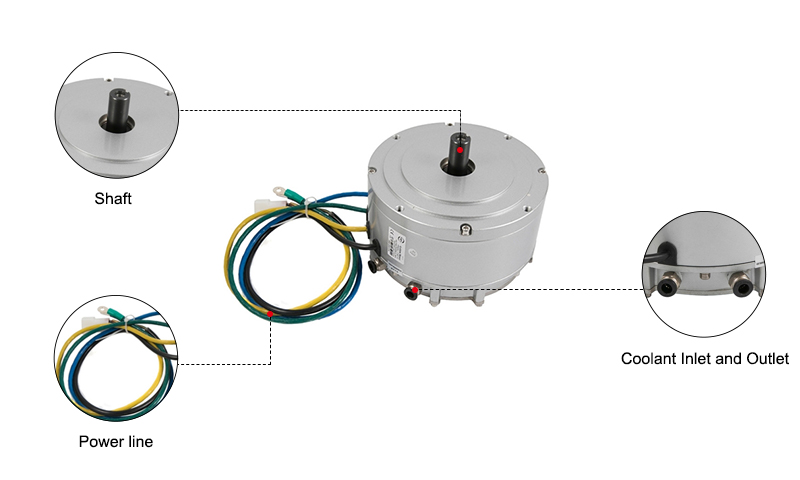

Details

Applications

3 kW brushless DC motors are suitable for cars, motorcycles, golf carts, ATVs, UTVs and yachts.

Tips: What type of brushless DC motor can be used in electric vehicles?

Brushless motors are often used in electric vehicle species because brushless motors do not have a commutator and brush arrangement, the commutation of such motors is done electronically, so brushless DC motors are maintenance-free. Brushless DC motors have traction characteristics such as high starting torque and high efficiency of about 95-98%.
