30 hp VFD, 1-Phase 220V to 3-Phase 380V VFD

5 out of 5 based on 7 reviews | Write a review

$2,455.97

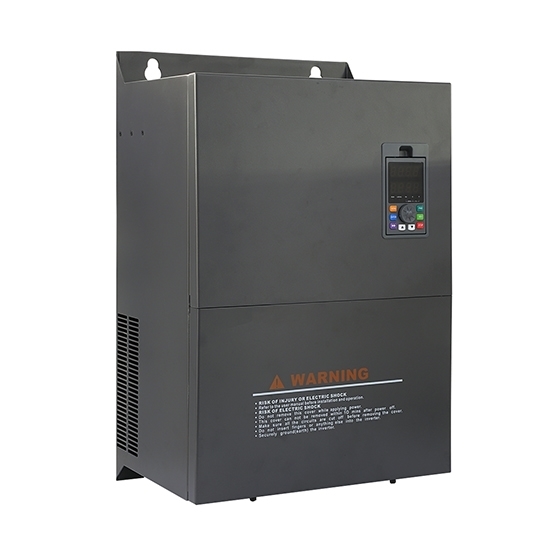

30 hp VFD for sales, converts 1-phase 220V input to 3-phase 380V output, 45A rated current, 50Hz/ 60Hz input frequency, 0-400Hz output frequency. It can be used as a motor speed controller and a frequency inverter.

Input Voltage (Single phase) *
Output Voltage (Three phase) *
Output Voltage (Three phase) *

SKU: GK3000-CS0220G

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
User Manual

Customize 30 hp (22kW) variable frequency drive at good price, with single phase 220 volt input and three phase 380 volt output, easy to operate and wire, convenient for you to use.

Specification:

Basics	Model	GK3000-CS0220G
	Capacity	30 hp (22 kW)
	Shipping weight	31 kg
	Dimension	530320235 mm
	Installation size	511*200 mm
I/O Feature	Rated current	45 A
	Input voltage	1 phase 220~240V AC
	Input frequency	50Hz/ 60Hz
	Output voltage (Optional)	3 phase AC 380V/ 400V/ 415V/ 440V/ 460V (Note: 440V, 460V output voltage only for the 1-phase 240V input VFD)
	Output frequency	0Hz~1000Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F control; Sensorless vector control;
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Tips: Variable frequency drive control mode

Vector control
Vector control is to control the size and phase of the stator current of the motor through the vector coordinate circuit, so as to control the excitation current and torque current of the motor in the d, q, 0 coordinate axis system respectively, and then achieve the purpose of controlling the motor torque. By controlling the action sequence and time of each vector and the action time of the zero vector, various PWM waves can be formed to achieve various control purposes. At present, the vector control methods actually used in the VFD mainly include the vector control method based on slip frequency control and the vector control method without speed sensor.

V/F control
V/F control is in order to obtain the ideal torque-speed characteristic, based on the idea that while changing the power frequency for speed regulation, it is proposed to keep the magnetic flux of the motor constant. Basically, general-purpose VFD use this control method. The V/F control inverter is very simple, but this method cannot achieve higher control performance. Moreover, at low frequencies, torque compensation must be performed to change the low-frequency torque characteristics.

PDF:

GK3000 Series VFD User Manual

Quick Setup Manual & Application
