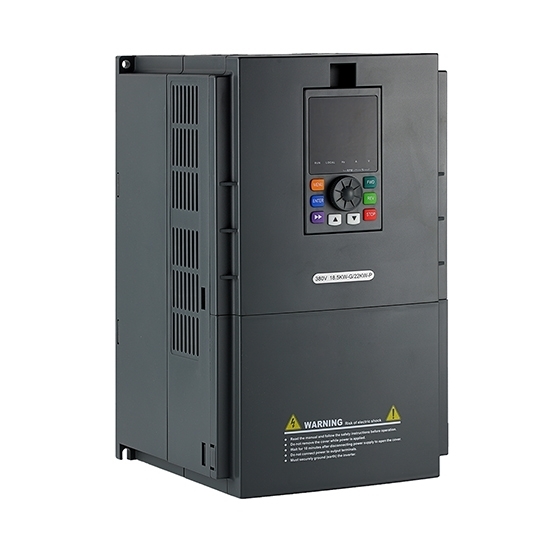

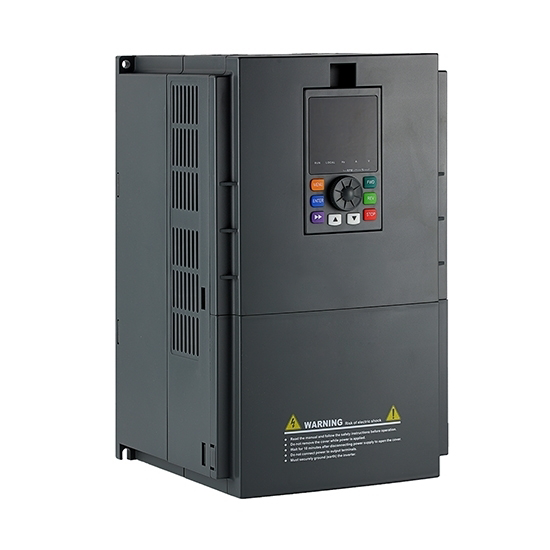

    25 hp VFD, 1-Phase 220V to 3-Phase 380V VFD

    5 out of 5 based on 1 reviews | Write a review
    25 hp variable frequency drive with single phase 220V input, three phase 380V output, 37 amps, V/F control. Competitive price 18.5kW VFD designed for 3-phase asynchronous motor speed control.
    SKU: GK3000-CS0185G
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    1-phase 220V to 3-phase 380V VFD for sales, 50Hz/ 60Hz input frequency, 0-400Hz output frequency, has RS485 communication port. 25 hp VFD can be used for constant torque loads and a phase converter.


    Basics Model GK3000-CS0185G
    Capacity 25 hp (18.5 kW)
    Shipping weight 22 kg
    Dimension 530*320*235 mm
    Installation size 511*200 mm
    I/O Feature Rated current 37 A
    Input voltage 1 phase 220~240V AC
    Input frequency 50Hz/ 60Hz
    Output voltage (Optional) 3 phase AC 380V/ 400V/ 415V/ 440V/ 460V (Note: 440V, 460V output voltage only for the 1-phase 240V input VFD)
    Output frequency 0Hz~1000Hz
    Over load capacity 150% of rated current for 1 minute, 180% of rated current for 3 seconds
    Control Feature Control mode V/F control;
    Sensorless vector control;
    Communication RS485
    Speed regulation 1:100
    Start torque 150% of rating torque at 1 Hz
    Speed control accuracy ≤±0.5% of rating synchronous speed
    Frequency precision Digital setting: max frequency x± 0.01%;
    Analog setting: max frequency x± 0.2%
    Frequency resolution Analog setting: 0.1% of max frequency;
    Digital setting: 0.01Hz
    Torque boost Automatic torque boost, manual torque boost 0.1%~30.0%
    Interior PID controller Be convenient to make closed-loop system
    Automatic energy save running Optimize V/F curve automatically based on the load to realize power save running
    Automatic voltage regulation (AVR) Can keep constant output voltage when power source voltage varies.
    Automatic current limiting Limit running current automatically to avoid frequent over-current which will cause trip
    Environment Enclosure rating IP 20
    Temperature –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
    Humidity 5%-95%, without condensation
    Altitude ≤1000m; VFD will be derated if above 1000m
    Impingement and oscillation Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
    Store environment –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

    Tips: How to run 3-phase 380V motor on 220V power supply?

    When the variable frequency drive turns the three-phase motor on the occasion with only 220V household power supply, it has the features of slow starting and small starting impact on the household circuit. Generally, there are two main types of VFDs that drive a three-phase motor with 220 volt household voltage.

    The first type is a three-phase 220V input and 220V output VFD. When this type of VFD drives a three-phase 380V motor, it generally uses a 380V star connection for a relatively low-power motor. When using a three-phase 220V output VFD , change the connection of the motor to a delta connection. The motor can be driven normally.

    The second type is the VFD whose input is 220V and output is three-phase 380V, which is suitable for slightly larger three-phase motors. The motor itself is a 380V delta connection, so the connection can no longer be modified. Therefore, the motor can no longer use the modified connection to reduce the voltage, and can only use the VFD with a three-phase 380V output. When using this kind of variable frequency drive, the problem of on-site power supply capacity is mainly considered, because the motor power is larger, the input current should also be larger. The connection method is very simple, and the motor does not require special connection changes.

    This video is about how to use buttons to run single-phase VFD of three-phase motors.

    The video shows the parameter setting methods for the V/F control mode and vector control mode of single-phase to three-phase VFD.

    This video provides insights into the wiring process for converting single-phase to three-phase VFD, specifically from 220V to 380V.

    Existing reviews of 25 hp VFD, 1-Phase 220V to 3-Phase 380V VFD
    Can you recommend the VFD I need based on my needs?
    I have a 2 hp, 3ph motor I would like to have speed control on. I am single phase 220 input. My motor draws 10 amps at 60 hz. What vfd do you recommend?
    From: Genot | Date: 20/08/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    If your motor is 3-phase, 10A, 220V, and your supply is 1-phase, 220V, then recommended drive model: GK3000-2S0037, 5hp capacity.
