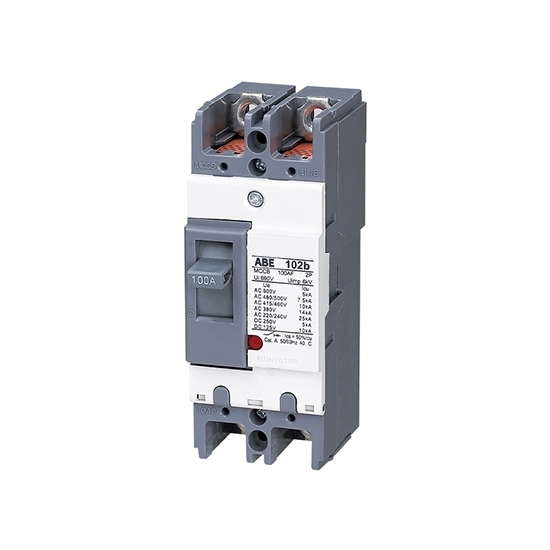

    100A 2P Molded Case Circuit Breaker

    $44.15
    Lower price molded case circuit breaker with rated current 100 amp, two pole, complying with IEC, GB standard, is suitable for conversion of line and infrequent starting motor.
    SKU: ATO-MCCB-ABE-102b
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Molded Case Circuit Breaker Information

    • Model: ATO-ABE-102b
    • Rated Current: 100 amp
    • Rated Voltage: 380/415V AC, 50Hz/ 60Hz
    • Number of poles: Two pole
    • 50 kA short circuit interrupting capacity

    Specification

    Standard Certifications IEC60947 GB14048
    Electrical Parameters Model ATO-ABE-102b
    Rated Current 10A, 15A, 20A, 30A, 40A, 50A, 60A, 75A, 100A
    Numbers of Poles 2 Pole
    Rated Operating Voltage 400V
    Rated Insulated Voltage(Ui) 800V
    Rated Frequency 50Hz/60Hz
    Ultimate Short Circuit Breaking Capacity, Icu DC 125V 10kA
    250V 5kA
    AC 50Hz/60Hz 230V 25kA
    380V 14kA
    415V 10kA
    440V 10kA
    480V 7.5kA
    600V 5kA
    Mechanical Parameters Electrical Life 1500 times
    Mechanical Life 8500 times
    Protection Degree IP20
    Operating Temperature -25℃~+50℃
    Weight 0.6kg
    Color White

    Dimension (Unit: mm)

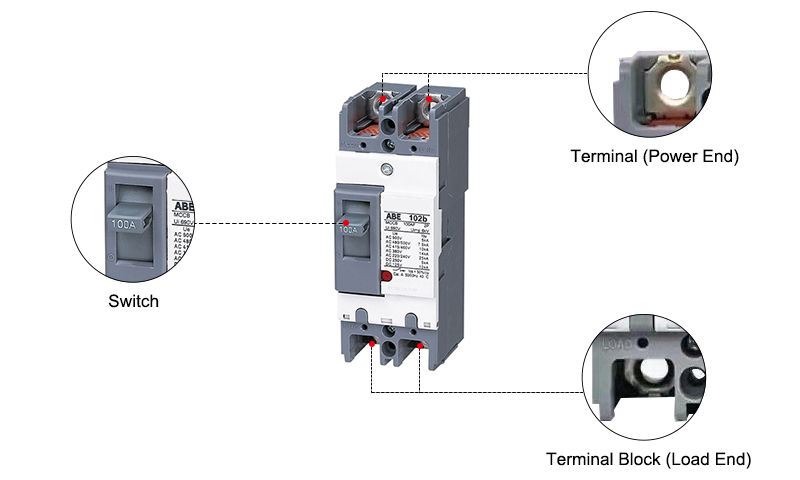

    Diemension of molded case circuit breaker           Diemension of molded case circuit breaker 1            Diemension of molded case circuit breaker 2

    Model Dimensions Mounting Dimensions
    C C1 E F G G1 H H1 H2 H3 H4 H5 L L1 L2 W W1 W2 A B Φd
    ATO-ABE-102b 87 124 50.5 22 19.5 7.5 68 102 18 5 4 4.5 150 185 132 92 30 120 36 142 7

    Tips: What is a Molded Case Circuit Breaker?
    Molded case circuit breakers are also called device-type circuit breakers. All parts are sealed in a plastic case. The auxiliary contacts, undervoltage releases and shunt releases are mostly modularized. Due to the very compact structure, the molded case circuit breaker cannot be overhauled. It mostly adopts manual operation, and large capacity can choose electric opening and closing. Due to the application of electronic overcurrent releases, molded case circuit breakers can also be divided into two types: A and B. Type B has good three-stage protection characteristics. However, due to price factors, thermal magnetic releases are used. Class A products have a higher market share. Molded case circuit breaker is the contact, arc extinguishing chamber, trip unit and operating mechanism are all installed in a plastic shell. Generally, maintenance is not considered. It is suitable for branch circuit protection switch. The overcurrent release has thermomagnetic There are two kinds of type and electronic type. Generally, the thermal magnetic molded case circuit breaker is a non-selective circuit breaker, and only has two protection methods: overload long delay and short circuit instantaneous protection. Four protection functions: time delay, instantaneous short circuit and ground fault. Some of the newly launched products of electronic molded case circuit breakers also have a regional selective interlocking function. Most molded case circuit breakers are manually operated, and some have motor operating mechanisms.
