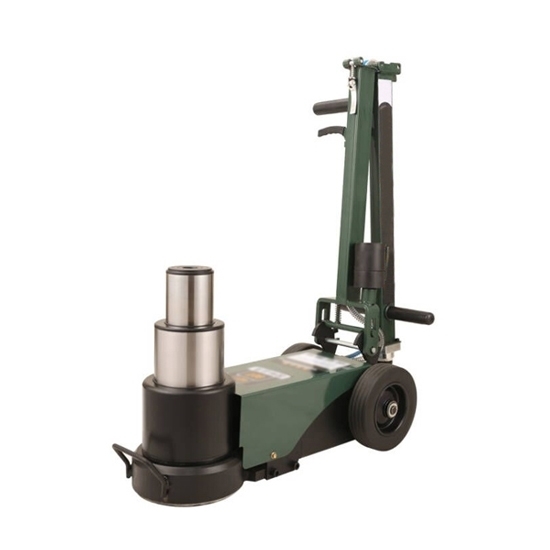

30 Ton Hydraulic Floor Jack

Air powered hydraulic floor jack is a mechanical device for lifting heavy loads, such as vehicles, using hydraulic power. The hydraulic car jack is positioned under the load, and by pumping the handle, hydraulic pressure is generated, causing the lifting arm to rise, thereby lifting the load off the ground.

Specification

• Model: ATO-HFJ-30T
• Lifting Weight: 15 Ton/ 30 Ton
• Minimum Altitude: 165mm
• Maximum Height: 340mm
• Base Diameter: 140mm
• Outer Cylinder Diameter: 120mm
• Middle Cylinder Diameter: 70mm
• Small Cylinder Diameter: 50mm
• Air Pressure: Above 8 kg
• Top Length: 42mm
• Top Width: 28mm
• Pole Net Length: 850mm
• Ground Clearance: 110mm
• Net Weight: 27kg

Note: After the second section is raised, the height increases, and the load capacity halves.

Load Capacity

• Section 1: The load capacity is 30 Ton.
• Section 2: The load capacity is 15 Ton.

Applications

Tips: What is a hydraulic floor jack?

A hydraulic floor jack is a mechanical device designed to lift heavy objects, primarily used for lifting vehicles such as cars or trucks. It operates on the principle of hydraulic power, utilizing fluid pressure to generate the lifting force. The jack consists of a sturdy metal frame with a horizontal lifting arm and a lifting pad or saddle at the top. Beneath the arm is a hydraulic cylinder containing oil or hydraulic fluid. When force is applied to the jack's handle or lever, it activates a pump mechanism that transfers the force to the hydraulic fluid. This causes the fluid to flow into the cylinder, exerting pressure and pushing the piston upward, thus lifting the load. The hydraulic floor jack is a popular tool in automotive repair shops, garages, and for roadside emergencies due to its portability, ease of use, and ability to handle heavy loads.
