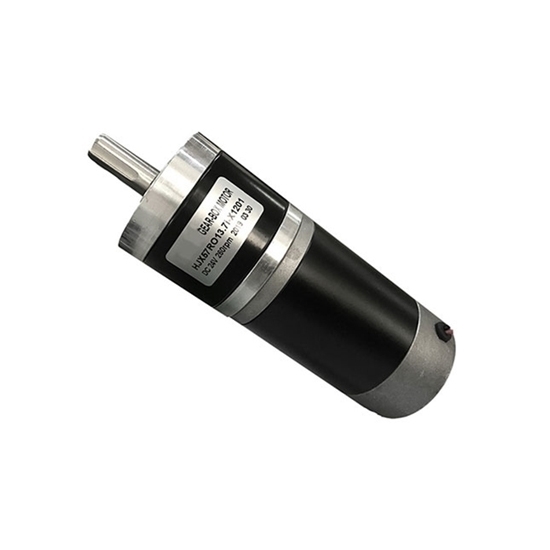

    Brushed DC Motor with Gearbox, 3000rpm, 12V/24V, 57mm

    5 out of 5 based on 1 reviews | Write a review
    $179.89
    Favorable price brushed gear DC motor for sale, 12V or 24V, 3000rpm rated speed, can reach 313.73mN•m high torque at maximum efficiency. It is Designed with 57mm gearbox, 1/3.7 to 1/139 gear ratio for your choice.
    SKU: ATO-BDM-3000R57
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    BDC gear motor, 12V or 24V DC, comes with 57mm diameter gearbox. It has wide industrial applications, such as food processing machine, sealing equipment, textile machine, etc.

    Features

    • Brushed DC motor with gearbox has compact structure and strong overload capacity.
    • The gear ratio is finely graded, which provides you wide selections for different applications.
    • BDC gear motor is low energy consumption, low vibration and low noise. The efficiency of the gearbox is up to 96%.
    • It adopts a new type of sealing device, which can work continuously in harsh environments such as corrosion and humidity.

    Specification

    Model ATO-BDM-57RO5590
    DC Motor Technical Parameter Rated Voltage 12V DC 24V DC
    No Load Speed 3600rpm 3600rpm
    Current 1.00A 0.70A
    At Max Efficiency Speed 3000rpm 3000rpm
    Current 8.2A 4500A
    Torque 294.12mN·m 313.73mN·m
    3000g·cm 3200g·cm
    Power 96W 100W
    Stall Torque 1176.5mN·m 1323.5mN·m
    12000g·cm 13500g·cm
    Current 27.0A 13.5A
    Gearbox Technical Parameter Gear Ratio 1/3.7 1/5.2 1/13.7 1/19.2 1/27 1/51 1/71 1/100 1/139 1/3.7 1/5.2 1/13.7 1/19.2 1/27 1/51 1/71 1/100 1/139
    Gearbox Diameter (mm) 57 57
    Gearbox Length (mm) 37.8 51 64.4 37.8 51 64.4
    Rated Torque kg·cm) 10.0 14.0 32.9 46.1 64.8 107.1 149.1 210.0 291.9 10.7 15.0 35.1 49.2 69.1 114.2 159.0 224.0 311.4
    Rated Speed (rpm) 811 576.9 219.0 156.3 111.1 58.8 42.3 30.0 21.6 811 576.9 219.0 156.3 111.1 58.8 42.3 30.0 21.6
    Stall Torque (kg·cm) 53.9 75.8 177.6 248.8 349.9 579.3 800.0 800.0 800.0 57.5 80.9 189.4 265.4 373.2 616.9 800.0 800.0 800.0

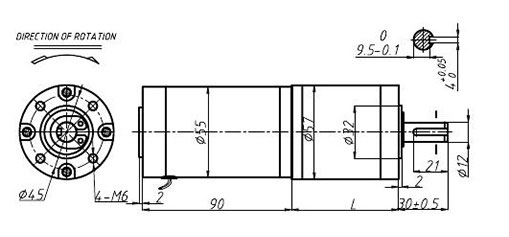

    Dimensions

    Units: mm

    Dimensions of Brushed DC Motor with Gearbox 3000rpm 12V/24V 57mm

    Tips: Difference between brushed and brushless DC motor

    1. Brushed dc motor is a device to convert electrical energy into mechanical energy or convert mechanical energy into electrical energy. BDC motor is the basis of all motors, it has the characteristics of fast start, timely braking, and smooth speed regulation in a large range, relatively simple control circuit and so on. Brushless dc motor is a typical mechatronics product, which is composed of motor body and driver. Because the brushless DC motor is operated in automatic control, it will not add the starting winding on the rotor like the induction motor started under the frequency conversion speed regulation, and it will not oscillate and lose step when the load suddenly changes. Small and medium capacity BLDC motor permanent magnet, now more use of high magnetic energy product of rare earth Nd-Fe-B material. Therefore, the volume of this is a smaller frame than that of the same capacity three-phase induction motor.
    2. When the brushed motor work, coil and commutator rotates, magnetic steel and carbon brush does not turn. The alternating change of coil current direction is with the motor rotation of the commutator and brush to complete. There are a lot of differences between brushed and brushless motors. As you can see from the name, brushed motors have carbon brushes while brushless motors have no carbon brushes.
    3. Brushed motor is a traditional product with relatively stable performance. Brushless motor is an upgrade product, however, its control circuit is more complex, and the aging screening of components is strictly required. Although the motor has a long life, the control circuit is prone to failure. Therefore, the selection of brushless motor to go through strict reliability test to ensure quality. However, as the technology continues to upgrade a few steps, brushless motor technology has been quite mature.
    4. In the actual production process, the brushed DC motor is a high-speed motor with small gear teeth and easy to wear, but the strength is large and the climbing ability is strong. The brushless DC motor can save the cost of replacing the carbon brushes. However, high precision is required in the process of controlling the BLDC motor, and its controller is expensive. In contrast, the brushed DC motor with gearbox is cheaper and easier to control than brushless DC motor.
    5. brushed motor refers to the motor is a direct current input, the controller only to provide it with the size of the current can be adjusted. Brushless motor is actually a three-phase AC motor to convert direct current into three-phase AC through the controller and make the motor normal operation according to the Hall sensor in the motor for commutation. To put it bluntly, brushless motors have a longer life and a more efficient start, but its controller costs more than brushed controller.
    Existing reviews of Brushed DC Motor with Gearbox, 3000rpm, 12V/24V, 57mm
    Great deal for the price
    Can I use this motor to make a wind turbine?
    From: Toby | Date: 19/07/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, this motor is able to work for wind turbine projects. ATO brushed DC motor is equipped with a 57mm gearbox. This brushed motor can reach a rated speed of 3000rpm and a high torque of 313.73mN•m at maximum efficiency.
