    Brushed DC Motor with Gearbox, 2800rpm, 12V/24V, 32mm

    $96.30
    Favorable price 6.5W/7W Brushed DC motor for sale, 12V or 24V, 2800rpm rated speed, 3500rpm no load speed, comes with 32mm diameter gearbox, gear ratio from 1/3.7 to 1/139 to provide different rated speed and torque.
    SKU: ATO-BDM-2800R32
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

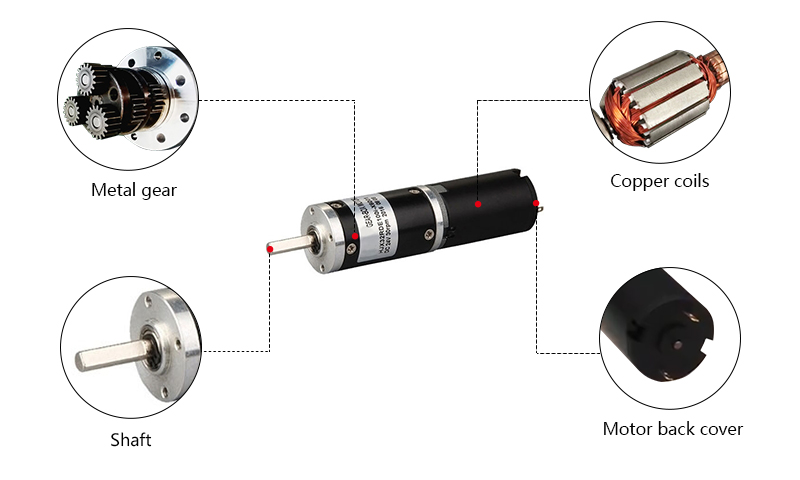

    Brushed DC gear motor with 2800 rpm rated speed, 12V or 24V. It is suitable for a lot of industrial applications such as food processing machine, sealing equipment, textile machine, etc.

    Features

    • Brushed DC motor with gearbox has compact structure and strong overload capacity.
    • The gear ratio is finely graded, which provides you wide selections for different applications.
    • BDC gear motor is low energy consumption, low vibration and low noise. The efficiency of the gearbox is up to 96%.
    • It adopts a new type of sealing device, which can work continuously in harsh environments such as corrosion and humidity.

    Specification

    Model ATO-BDM-ZY3154R3
    DC Motor Technical Parameter Rated Voltage 12V DC 24V DC
    No Load Speed 3500rpm 3500rpm
    Current 0.16A 0.1A
    At Max Efficiency Speed 2800rpm 2800rpm
    Current 1.25A 0.7A
    Torque 13.7mN·m 14.2mN·m
    140g·cm 145g·cm
    Power 6.5W 7.0W
    Stall Torque 88.2mN·m 95.1mN·m
    900g·cm 970g·cm
    Current 4.3A 2.45A
    Gearbox Technical Parameter Gear Ratio 1/3.7 1/5.2 1/13.7 1/19.2 1/27 1/35 1/51 1/71 1/100 1/139 1/3.7 1/5.2 1/13.7 1/19.2 1/27 1/35 1/51 1/71 1/100 1/139
    Gearbox Diameter (mm) 32 32
    Gearbox Length (mm) 30 38.6 45 30 38.6 45
    Rated Torque (kg·cm) 0.5 0.7 1.5 1.5 3.0 5.0 5.0 7.0 9.8 13.6 0.5 0.7 1.6 1.7 3.1 5.3 5.2 7.2 10.2 14.1
    Rated Speed (rpm) 757 538.5 204.4 145.8 103.7 80.0 54.9 39.4 28.0 20.1 757 538.5 204.4 145.8 103.7 80.0 54.9 39.4 28.0 20.1
    Stall Torque (kg·cm) 2.9 4.2 9.8 13.8 19.4 25.2 32.1 44.7 63.0 87.5 3.2 4.5 10.5 14.7 20.8 26.9 34.3 47.8 67.4 93.7

    Dimensions

    Units: mm

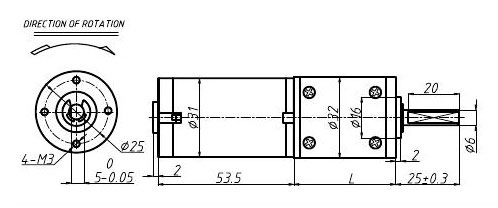

    Dimensions of Brushed DC Motor with Gearbox 2800rpm 12V/24V 32mm

    Tips: Brushed DC motor basics

    The operation of all motors (with the exception of special ones, such as piezoelectric motors) depends on the interaction between the stator and the rotor's electromagnetic fields, which are controlled to periodically generate the attraction and repulsion forces between the stator and the rotor to cause motion.

    So how does a brushed DC gear motor generate the rotating magnetic field needed to rotate its armature without the need for an external controller? The motor does the work itself. A pair of 180° separate brushes on the motor housing direct the applied current to the armature coil through two commutator contacts (metalplates). Each metal plate covers an armature of approximately 180°. As the motor rotates, the current circuit will automatically switches every half turn.

    The armature's magnetic field interacts with the rotor's magnetic field. The direction of the magnetic field generated by the coil is always switching and is attracted or repulsed by the field generated by the external coil or permanent magnet. As the rotor rotates, the direction of its magnetic field also reverses, thus keeping the motor rotating.
