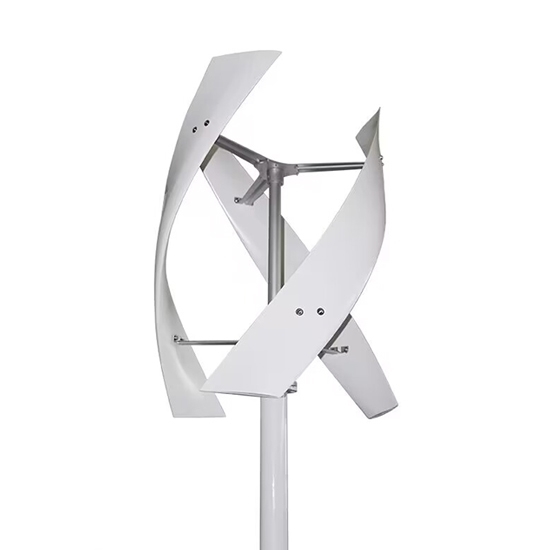

300W Vertical Axis Wind Turbine, 12V/24V

$798.56
300W residential vertical axis wind turbine for sale, rated at either 12V or 24V. The small vertical wind generator makes efficient use of the wind resource and generates more power. It is widely used in street lighting, landscape lighting, traffic monitoring and communication base stations.
*
SKU: ATO-VAWT-300
30-day Returns
Free Shipping
Delivery date: 6-12 days

Buy a low-price 12V vertical air wind turbine online, a 3-blade vertical wind turbine rated at 300 watt, with a starting wind speed of 2m/s and a rated wind speed of 12m/s. This vertical axis turbine is compact, lightweight and easy to install, making it an excellent choice for residential, commercial and industrial applications.

Specification

Model ATO-X5-300
Rated Power 300W
Rated Voltage 12V/24V
With Controller Yes
Start Up Wind Speed 2m/s
Rated Wind Speed 12m/s
Survival Wind Speed 50m/s
Wind Wheel Diameter/Height 0.55m/0.75m
Number of Blades 3
Blades Material Nylon
Fuselage Material Aluminum alloy
Magnetic Steel NdFeB
Generator Type Three-phase AC permanent magnetically suspended generators
Controller System Electromagnetic brakes
Speed Regulation 360° Automatically Adjust Windard
Installation Flange DN20
Degree of protection IP54
Gross Weight 10kg
Top Net Weight 11kg
Dimension 860*380*200mm


Dimension
(Unit: mm)

300-400W axis wind turbine dimension

Applications

The battery is charged by the wind turbine and solar panels through the controller, and the DC output port of the controller directly supplies power to the DC load. On days without wind or light, the power output by the wind turbine and solar panels is not enough to charge the battery, which can cause the battery to be under-voltage. In this case, the controller output dry contact control signal automatically switches to the grid power to supply the load.

Vertical axis wind turbine application

Tips: How to choose horizontal and vertical wind turbine?

  • Horizontal-axis wind turbines (HAWT) are the most common type of wind turbine and are characterized by having blades that rotate around a horizontal axis. HAWTs are more efficient than vertical-axis wind turbines (VAWT) in areas with strong and consistent winds. HAWTs are also easier to maintain and repair, and they can be located further away from residential areas, reducing noise pollution.
  • On the other hand, vertical-axis wind turbines (VAWT) have blades that rotate around a vertical axis, and they are better suited for urban and low-wind areas. They are also more compact, making them easier to install in tight spaces. VAWTs are also less affected by turbulence, so they can be located closer to buildings and other structures.
  • In conclusion, both horizontal and vertical wind turbines have their advantages and disadvantages, and the best choice depends on the specific needs and conditions of the installation site.
