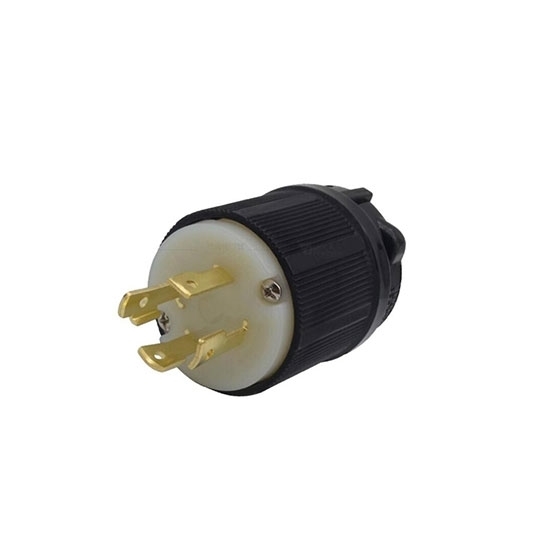

30A 480V Locking Plug, 3 Pole 4 Wire

5 out of 5 based on 2 reviews | Write a review

$38.99

Electrical locking plug for sale online, 30A rated current 480V rated current, 3 pole and 4 wire grounding, male plug and female plug available. It is widely used for medical devices, electronics, generators and lifts.

Plug *

SKU: ATO-L16-30

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Twist locking plug is suitable for medical devices, electronics, lighting, machinery, grills, generators and lifts, etc. It comes with nylon material, high quality and durable, fall resistant and explosion-proof. Plug matching socket has the function of clamping the power cord to prevent the phenomenon of slack power failure in the work.

Specification

Model	ATO-L16-30
Plug Type	NEMA L16-30 Plug
Materials	Nylon and full copper
Certifications	UL/ CSA/ CUL
Rated Voltage	480V
Rated Current	30 Amp
Wiring & Connecting	3 Pole 4 Wire
Terminal Clamp Material	0.08" (2) steel-nickel plated
Terminal Screw Material	10-32 Brass white finish on neutral screw when use
Ground Screw Material	10-32 Brass (green finish), multi-device
Dielectric Voltage Withstand	18000V minimum
Current Interrupting	Certified for current interrupt at full rate current
Temperature Resistant	Max 30℃ temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75℃
Operating Temperatures	Maximum continuous 75℃ minimum -40℃ (w/o impact)
Terminal Identification	14/3, 12/3, 10/3 AWG size conductors; terminals identified in accordance with UL498 (X, Y, Z, white, green)

Purchase Guide

In this video, we have developed a comprehensive guide that details the key factors to consider before making a purchase decision for outlets.

NEMA Outlets Explained

NEMA outlets are electrical connectors that are manufactured according to standards established by the National Electrical Manufacturers Association and they are everywhere across the United States and other countries that use the standards. Among others, NEMA 5 are the most common of the non-locking connectors.

Existing reviews of 30A 480V Locking Plug, 3 Pole 4 Wire

Excellent 480V locking plug

The 480V locking plug came in a box with wiring instructions. I found this plug one of the easiest to wire up. All the screws are permanently attached so they will never fall out.

From: Johanes | Date: 01/12/2022

Was this review helpful? Yes No (0/0)

This locking plug was exactly what I needed.

This locking plug was exactly what I needed. It connected up to my cable easily and fits my generator outlet perfectly. Insulation is good.

From: Tammie | Date: 28/06/2022

Was this review helpful? Yes No (0/0)
