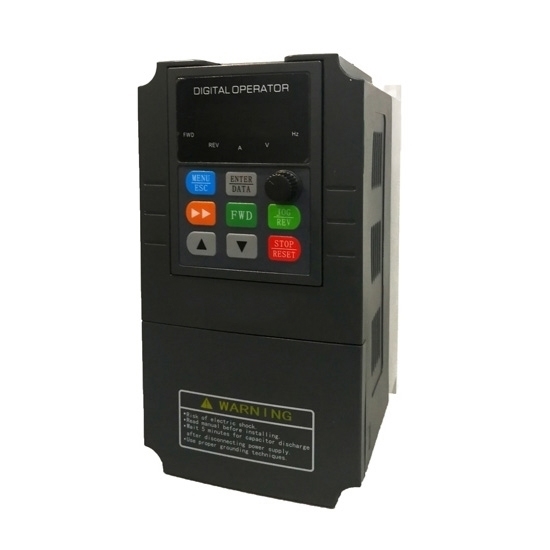

    3 hp VFD, Single Phase to Three Phase VFD

    4.9 out of 5 based on 11 reviews | Write a review
    $238.14
    Low price 3hp VFD, convert 220V/230V/240V 1 phase to 3 phase, 9.6 amps, RS485 enabled, shipping weight 3kg, manufacturer direct sale.
    SKU: GK3000-2S0022
    Availability: In stock
    30-day Returns
    Free Shipping
    Delivery date: 2-3 days

    3hp variable frequency drive, 2.2kW, single phase 220V-240V to three phase VFD, 10 amps.

    Specification:

    Basics Model GK3000-2S0022
    Capacity 3 hp (2.2 kW)
    Shipping weight 3 kg
    Dimension 190*104*150 mm
    I/O Feature Rated current 9.6 A
    Input voltage 1 phase 220~240V AC
    Input frequency 50Hz/ 60Hz
    Output voltage 3 phase AC 0~input voltage
    Output frequency 0Hz~1000Hz
    Over load capacity 150% of rated current for 1 minute, 180% of rated current for 3 seconds
    Control Feature Control mode V/F, Sensorless vector control (SVC), Speed sensor vector control (FVC)
    Communication RS485
    Speed regulation 1:100
    Start torque 150% of rating torque at 1 Hz
    Speed control accuracy ≤±0.5% of rating synchronous speed
    Frequency precision Digital setting: max frequency x± 0.01%;
    Analog setting: max frequency x± 0.2%
    Frequency resolution Analog setting: 0.1% of max frequency;
    Digital setting: 0.01Hz
    Torque boost Automatic torque boost, manual torque boost 0.1%~30.0%
    Interior PID controller Be convenient to make closed-loop system
    Automatic energy save running Optimize V/F curve automatically based on the load to realize power save running
    Automatic voltage regulation (AVR) Can keep constant output voltage when power source voltage varies.
    Automatic current limiting Limit running current automatically to avoid frequent over-current which will cause trip
    Environment Enclosure rating IP 20
    Temperature –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
    Humidity 5%-95%, without condensation
    Altitude ≤1000m; VFD will be derated if above 1000m
    Impingement and oscillation Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
    Store environment –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

    Note: ATO VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

    Details

    3 hp Single Phase to Three Phase VFD Details

    Tips: Variable frequency drive overcurrent
    Overcurrent is the most frequent alarm phenomenon of VFD.

    A. Phenomenon

    1. When restarting, VFD trips once speed up. This is a very serious phenomenon of overcurrent. The main reasons are: Load short circuit, mechanical parts stuck, inverter module damaged, and smaller motor torque and so on.
    2. Tripping after power on. This phenomenon cannot be reset. The main reasons are: Module broken, bad driving circuit, and bad current detection circuit.
    3. The tripping is not happening when restart but when accelerating, the main reasons are: Acceleration time setting is too short, current upper limit setting is too small, and the torque compensation (V/F) setting is too high.

    B. Maintenance examples

    1. The VFD displays "OC" once starting.
      Open the cover and don't find any signs of burn out. Online measure IGBT finds no problems. In order to further determine the problem, disassemble the IGBT and measure the seven high-power transistors, the opening and closing are good. When measuring the upper half of the bridge drive circuit, find a circuit is obviously different with the other two. After careful inspection, find an optocoupler A3120 output pin and negative power supply short circuit. Replace it and test again, three circuits are the same. Finally install IGBT and everything running well.
    2. A 3 hp VFD displays "OC" and cannot be reset.
      First check the inverter module but don't find the problem. Second, check the drive circuit and find no abnormal phenomenon. It is estimated that the problem is not here, and may be in the part of over-current signal processing. Remove the circuit sensor and then power on showing everything is normal, so the sensor has been broken. After replaced with a new sensor, the on-load experiment shows everything normal.

    If you have a three phase motor but only single phase power supply. Using ATO single phase to three phase VFD can operate the three phase motor. single phase to 3 phase variable frequency drives convert the single phase into a three phase, allowing the use of more efficient and less expensive three phase motors. Now you can start by following our video.

    VFD Programming for Stabilizing Water Pressure in Water Supply System

    In this video, we explore how to use ATO's VFD to ensure stable water pressure in your water supply system. We have covered the complete process from wiring, parameter setting and test run.

    VFD Frequency Setting to 400Hz

    In this video we show you a step-by-step guide on how to set the frequency of ATO's GK3000 VFD to 400Hz.

    VFD Basic Troubleshooting Guide

    In this video, ATO will show you the vfd basic troubleshooting guide.

    VFD Analog Output Setting and Wiring

    This video introduces the process of VFD analog output setting and wiring. ATO inverter can use RS485 interface communication to monitor the operating status, and can also use its analog output function for monitoring.

    How to Control VFD with Push Button Switch/Terminal Control/Wire Control?

    This video shows a single phase to three phase inverter to make the motor forward and reverse in terminal control mode (push button switch control/3 wire control). This method can start and stop the motor without approaching the inverter.

    4-20mA is as common in analog control systems as 0~10V, and ATO GK3000 series VFDs are also perfectly compatible.

    Existing reviews of 3 hp VFD, Single Phase to Three Phase VFD
    About specifications
    I wanted to confirm a couple of specifications that are unclear. First, what is the maximum output frequency? The online documentation says 1000Hz but the nameplate only says 0-500Hz. We will be using this in a high-speed milling application so we need the high frequency operation. Second, the user manual says that an internal braking resistor is included for this size of the VFD. However, the wiring terminal includes connections for an external braking resistor. Could you please confirm that there is one internally? What is the resistance and power dissipation capacity of the resistor?
    From: Shigar | Date: 04/12/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. Yes, our VFD can reach a maximum output frequency of 1000HZ, no problem.
    To set 400Hz, set as follows:
    Before setting the motor frequency P8.04 = 400Hz, it is necessary for you to set the frequency resolution P0.21 = 1 (0.1Hz) and then reset the upper and lower frequency limits and the motor frequency parameter.
    Following is the parameter list of modifying the output frequency from 320HZ to 400Hz:
    P0.21=1
    P0.05=400.0Hz
    P0.06=400.0Hz
    P0.07=0.0Hz
    P8.04=400.0Hz
    2. The VFD has a built-in brake unit, and the brake resistor can only be connected externally. This unit GK3000-2S0022G has an external brake resistor of 75Ω/500W.
    How to program in this VFD?
    I will be going to a job site in the next couple of days in which I need to program approximately 20 of the GK3000 VFDs. The VFDs are connected to exhaust fans. The fans will run continuously at 25Hz and then we want them to ramp up to 60 Hz when we send a signal from our relay. We have a normally open dry contact.  When the relay closes we want the VFD to ramp up the fans to 60Hz. Can you send me step-by-step instructions on how to program this in the GK3000.  I have the manual, but I am not finding the instructions to be very clear (for me…I am not normally the one who programs VFDs so a lot of the information is new to me).
    From: Drosy | Date: 08/08/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    If the VFD you purchased is not 120VAC input, you can refer to the following parameter settings:
    If you would like the VFD to run at 2 speeds, you only need to configure an external contact x1 to achieve it. The parameter settings are as follows:
    P0.01=2 (frequency comes from digital given)
    P0.02= 25HZ (0 segment speed, when X1 and COM are disconnected)
    P0.03=1 (terminal control mode)
    P4.00=1
    P3.26=60HZ (1 stage speed, when X1 and COM are closed)
    I don't know how to do?
    I did test the hoist with no load but it doesn't work, I bought the VFD that you guys recommended to me. I just didn't know that it couldn't drive the hoist because of the contactors and components. I thought that as long as the hoist saw 240V 3 phase it would work.
    From: Sameh | Date: 22/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    You can follow our suggestions below and try again.
    1. First, please make sure your hoist has a brake. If it has a brake, you need to trigger the brake signal and then release the brake before you can run the VFD, otherwise, the VFD will malfunction.
    2. As we mentioned below, our VFD is directly connected to the motor. The forward and reverse contactor your hoist was using before needs to be removed. But if you want to continue to use the previous forward and reverse contactor, using an external push button switch, you can change one control: Please use the contacts of the forward contactor to control the forward signal of the VFD - FWD-COM; use the contacts of the reverse contactor to control the reverse signal of the VFD - -REV-COM. Please refer to the demonstration video about the VFD forward and reverse control motor at: https://www.youtube.com/watch?v=nBUm4i9wnzY&list=PLlo8RulDRnthBFbP4ydheukDSKw2hAfDn&index=12
    Not sure if that is correct
    I set these settings on my VFD. The first one PP-01 I don't seem to have so I assumed it was a typo and set FP-01 to 1. After setting all I tested again and got Error-04. Re-checked and FP-01 reverted back to 0. Not sure if that is correct.
    From: Beahn | Date: 21/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    If you set the parameters, please set again and got Error-04. Please re-set F3-01=1.0 F3-10=63 F3-12=40, and test again. Also, can you replace other motors for testing?
    My confusion comes from the input wiring
    My confusion comes from the input wiring. In the manual the terminal diagram for the 220V 1-phase shows 7 terminals L1, L2, Blank, E, U, V,W
    I have wired the 3 phase motor to the E (ground), U (T1), V (T2), and W (T3). Unfortunately the unit's terminal is different than the manual.
    It has : 8 terminals - P , L, N, PB, E, U, V,W thus I am unsure as to how to wire the input 220V supply. I have a 2 wire plus a ground? I have wired the machine on / off switch to the fwd and com connections, as this was how my previous VFD was wired.  Is this correct?
    From: Frederick | Date: 09/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Regarding the wiring of the VFD, please connect the single-phase 220V voltage to the L and N terminals, and connect the ground wire to the terminal marked E. The on/off switch you used earlier needs to be connected to the control terminals of the VFD. You can refer to our demo video, please see on: https://www.youtube.com/watch?v=zxTVneMG5Jo&list=PLlo8RulDRnthBFbP4ydheukDSKw2hAfDn&index=27&t=61s
    I want to properly set it up
    I bought this VFD for a chain hoist. I entered all the correct motor parameters. But everytime I let it pick up to 60z and I hit my remote it immediately throws the E-09 code. Which according to the manual is an inverter overload condition. I want to properly set it up. Or if there is anything I missed.
    From: Cboh | Date: 07/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Please follow the attached quick setup document to check whether the VFD parameter settings are correct. Please set P0.09=10, P0.17=15, P0.18=15, P0.22=2 OR 3, And test again.
    If you still have problems, please send us the VFD & motor nameplate label, photos of the motor and VFD wiring, etc. for further confirmation.
    I put in the parameters you specified but still throws the error code E-09.
    I put in the parameters you specified but still throws the error code E-09. I took pictures of the nameplates as well as the wiring. On the VFD I landed temporary wires they are all black but I wire-nutted them in the proper places.
    From: Gibson | Date: 03/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. First of all, the rated output current of the GK3000-2S0022G you bought is only 10A, and the current of your motor is 7.9A when the voltage is low. The rated current of the motor is very similar to the capacity of the VFD, which can easily lead to overload. So we suggest that you run the motor with no load when testing.
    2. The drawing you provided shows that there are contactors and other components on the motor, so we are not sure how your motor is wired. Please note that our VFD can directly drive the motor, and directly connect the motor cable to the VFD output terminals U, V, W without going through a contactor or other components. In order to confirm that your motor is wired correctly, please send us the wiring manual of the motor for further confirmation.
    Where is my 220V input supposed to connect?
    I want to hook up my new VFD. My manual shows 220V single phase input to be connected to terminals R, S, T. My VFD does not have those labels. my terminal block is labeled P , L, N, PB, E, U, V, W.  where is my 220V input supposed to connect?
    From: Abys | Date: 27/05/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    If the terminals of VFD you received marked P+, L, N, PB, E, U, V and W, then the 220V single-phase input should be connected to terminal L and N. (Some of VFD models show R, S, T terminals, and one of which is marked red and cannot be used without screw removal.)
    I have some doubts about 3hp VFD
    Does the 3 hp VFD, single phase to three phase VFD SKU: GK3000-2S0022 have the ability to put out 415V when connected to a single phase 240 volt connection? If so, what amperage input line do I need to connect to?
    From: Robb | Date: 28/11/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    No, the GK3000-2S0022 VFD output is only 3-phase, 220/230V.
    And it can run motors with rated current up to 6-7A.
    Can I use your 3 hp Single Phase to Three Phase VFD for my saw
    Hi,
    my table saw has a 3 phase Baldor 3HP motor and I need a drive. Can I use your 2.2 kW variable frequency drive for it. 10A is good. The saw runs on one speed only will the VFD be a problem?
    From: Andy | Date: 10/08/2020
    Was this review helpful? Yes No (0/0)
    ATO Responded
    If your motor is 3-phase, 220/230V, and your supply voltage is 1-phase, 220/230V, then recommended 5 hp (4 kW) 1 phase to 3 phase VFD. Buy it on: www.ato.com/5hp-vfd
    Works great, excellent vfd.
    I received my VFD in a few days and it took me a while to set up the power, but now it is up and running. This 3 hp VFD is better than described, I waited to review till I had it fully installed and cutting. Manual is very well written, and each word and diagram is important to study.
    From: David | Date: 05/09/2018
    Was this review helpful? Yes No (0/0)
    Load more reviews...
    Write your review for 3 hp VFD, Single Phase to Three Phase VFD
    • Only registered users can write reviews
    • Bad
    • Excellent
    Customers who bought this item also bought

    1 hp VFD, Single Phase to Three Phase VFD

    $159.32
    SKU: GK3000-2S0007
    1 hp VFD, convert single phase to three phase for AC motor speed controls, IP20, RS485 enabled, shipping weight 2kg, manufacturer direct sale.

    PID Temperature Controller, Dual Digital, Universal Input

    $69.85
    SKU: ATO-TEMPC-2D
    PID temperature controller has dual digital 4 LED display, on-off control/PID control, support universal inputs (Cu50/Pt100/K/E/J/T/S/R, 4-20mA, etc.), 4 kinds of output mode for select (relay output/SSR output/SCR/transmitter output 4-20mA), and additional output RS485/232 communication output, timer relay, etc.

    2 hp VFD, Single Phase to Three Phase VFD

    $183.16
    SKU: GK3000-2S0015
    2 hp VFD, convert single phase to three phase for AC motor speed controls, 7 amps, IP20, RS485 enabled, manufacturer direct sale.

    5 hp VFD, Single Phase to Three Phase VFD

    $294.31
    SKU: GK3000-2S0037
    5hp variable frequency drive, single phase to three phase VFD, 17 amps, RS485 enabled, shipping weight 4kg, manufacturer direct sale.

    5 hp VFD, 1-Phase 220V to 3-Phase 380V VFD

    $473.54
    SKU: GK3000-CS0037
    Best 5 hp variable frequency drive at low price. Single phase 220 volt input to three phase 380 volt output VFD for AC motor speed control, IP20, RS485 enabled, V/F and sensorless vector control mode.
