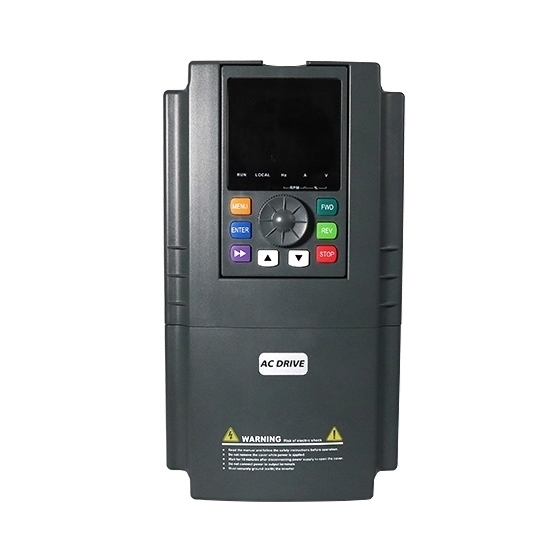

3 hp (2.2 kW) VFD, Three Phase 220V, 380V, 480V

4.9 out of 5 based on 10 reviews | Write a review

$280.48

Low cost 3 hp (2.2 kW) VFD, three phase 220V, 380V, 480V variable frequency drive, IP20 enclosure, RS485 enabled, V/F & vector control, brand new direct sale by manufacturer.

Input Voltage (Three Phase) ±15%

SKU: GK3000-4T0022G

Qty:

30-day Returns

Free Shipping

Delivery date: 2-3 days

Overview
User Manual
Related Video

3 hp 3 phase variable frequency drive, 220V, 380V, 480V for selection.

Specification:

Basics	Model	GK3000-4T0022G/ GK3000-2T0022G
	Capacity	3 hp (2.2 kW)
	Shipping weight	3 kg
	Dimension	236130176 mm for GK3000-4T0022G/ 272172182 for GK3000-2T0022G
I/O Feature	Rated current	5.1A at 380V ~ 480V, 9A at 220V ~ 240V
	Input voltage	3 phase 220V /380V /480V AC ±15% (Optional)
	Input frequency	50Hz/ 60Hz
	Output voltage	3 phase AC 0~input voltage
	Output frequency	0Hz~1000Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F control; Sensorless vector control;
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Note: ATO VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

Details

Tips: Variable frequency drive noise and vibration problems and solutions
When using VFD for speed adjusting, it will produce noise and vibration. This is because the VFD output waveform contains high harmonic wave. With the change of the operating frequency, the fundamental component and the harmonic component all change in a large range, which is likely to resonate with the inherent mechanical vibration of the motor, and the resonance is the source of noise and vibration.

When the low harmonic wave components in the output resonate with the inherent mechanical frequency of the rotor, the noise will increases. When the high harmonic wave components in the output are resonated with the iron core, machine enclosure and bearing bracket at the vicinity of the respective natural frequencies, the noise will increases.
The noise generated by the drive motor, especially the harsh noise, is related to the switching frequency of the PWM control, especially in the low frequency region. To solve this problem, usually connect AC reactor on the VFD output side. If there is electromagnetic torque margin, u/f can be set lower to reduce noise.
When the VFD is in operation, the magnetic field caused by the higher harmonic wave in the output waveform generates electromagnetic driving force for many mechanical parts. When the driving force frequency is close or overlap with inherent frequency of these mechanical components, will resonate. The main effect on the vibration is the lower harmonic wave component, which has a greater impact in the PAM mode and square wave PWM mode. But when using SPWM mode, the low harmonic wave component is low, and the impact is also lower.
The method of reducing or eliminating the vibration is to connect the AC reactor to the output side of the VFD to absorb the high harmonic current component. If still using PAM mode or square wave PWM mode VFD, switch to SPWM mode VFD to reduce pulsating torque, weaken or eliminate vibration, and to prevent the mechanical part damage due to vibration.

PDF:

GK3000 Series VFD User Manual

Quick Setup Manual & Application

VFD Troubleshooting Guide

How to Measure Circuits with a Digital Multimeter?

This video will show you how to measure electrical circuit using a digital multimeter.

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

4-20mA speed Control on VFD

4-20mA is as common in analog control systems as 0~10V, and ATO GK3000 series VFDs are also perfectly compatible.

How to Control VFD with 0-10V (CI port)

This is port CI usage method for 0~10V to control the frequency of ATO GK3000 upgrade version. It is suitable for 1-phase, 1-phase to 3-phase, and 3-phase VFD.

VFD Analog Input 0-10V Frequency Control (VI Port)

ATO GK3000 VFD uses external voltage analog to control the frequency so as to achieve the purpose of motor speed regulation.

Control VFD with Potentiometer & Button (VI Port)

ATO GK3000 vector VFD supports control of synchronous motors, and supports external potentiometer and button control.

Forward and Reverse VFD Button Control

This video is for ATO GK3000 upgrade version VFD 1-phase to 3-phase & 3-phase VFD (3-wire control/external terminal control mode).

Existing reviews of 3 hp (2.2 kW) VFD, Three Phase 220V, 380V, 480V

Good Quality VFD

The flow rate of the centrifugal pump I use for fish farming is always unstable, so I bought this 3hp VFD. I want to adjust the speed of the centrifugal pump to better control the flow rate and head. I have considered the compatibility of the inverter and the centrifugal pump but encountered problems during the setting process. I am setting up a 3hp, 3-phase VFD for a constant pressure setup. I am getting an alarm (E-39). I don't know how to solve this E-39 problem.

From: Rako | Date: 12/06/2024
