Digital 4-20 milliamp Signal Generator

$240.34
Cheap 4 20 milliamp signal generator for sale online, available with 3000mAh lithium battery, TYPE-C interface, adjustable button backlight high-definition TFT color LCD screen. The digital signal generator can provide mA input & output, voltage input, rotating-speed test, voltage output, resistive output, millivolt output, and programming test function, easy to use and carry.
SKU: ATO-SG-004A
30-day Returns
Free Shipping
Delivery date: 6-12 days

Digital 4 20 milliamp signal generator provides mA input, mA output, voltage input,  rotating-speed test, voltage output, resistive output, millivolt output, and programming test function, 3000mAh lithium battery, TYPE-C interface, adjustable button backlight high-definition TFT color LCD screen, mainly used for debugging industrial field PLC, process instrumentation, and electric valves.

Specifications

  • Model: ATO-SG-004A
  • Size: 82x27x112mm
  • N.W: 167g
  • Color: Black+Yellow
  • LCD Size: 2.4 inch
  • Interface: Type-C
  • Input: 5V-12V/10W (Max)
  • Battery: 3000mAh
  • Standby Time: 24h

Technical Parameters

Signal Scope Precision Resolution Internal Impedance
Current (mA) 0~24mA ±(0.02%+0.003) 0.001mA 100Ω
Voltage (V) 0~24V ±(0.02%+0.003) 0.001mA 500k
Passive (XMT) 0~24mA ±(0.02%+0.003) 0.001V 100Ω
24V loop 0~24mA 0.006 0.01mA 100Ω
FRQ (Hz) 0~9999Hz ±2% 5 digits 1Mk
Millivolt (mV ) 10~100mV 0.0303 0.01mV 2k
Thermocouple (TC-S) 0~1760℃ 1.002 1℃ 2k
Thermocouple (TC-B) 0~1810℃ 1.005 1℃ 2k
Thermocouple (TC-E) 0~990℃ 1.002 1℃ 2k
Thermocouple (TC-K) 0~1320℃ 1.002 1℃ 2k
Thermocouple (TC-R) 0~1760℃ 1.003 1℃ 2k
Thermocouple (TC-J) 0~1190℃ 1.003 1'C 2k
Thermocouple (TC-T) 0~390℃ 1.002 1'C 2k
Thermocouple (TC-N) 0~1290℃ 1.002 1℃ 2k
Thermocouple (WRe3/25) 0~2320℃ 1.002 1℃ 2k
Thermocouple (WRe5/26) 0~2320℃ 1.002 1℃ 2k
Resistance (ohm) 0~3900 ±(0.2%+1) 0.1℃ /
Pt100 -200~650℃ ±(0.5%+1) 0.1℃ /
Cu50 -20~150℃ 1.005 0.1℃ /
Output Signal
Active Current 0~24mA
Passive Current 0~24mA
Voltage 0~24V
Frequency/PWM 0~9999Hz
24V loop 0~24mA
mV/Thermocouple -10~110mV
Resistance/Thermal Resistance 0~390Ω
Input Signal
Active Current 0~24mA
Voltage 0~24V
Frequency/PWM 0~9999Hz
mV/thermocouple -10~110mV
Resistance/Thermal Resistance 0~400Ω
Extended Function
Program Automatic Lift Output History Record
Preset Output Output Timing
Signal Linear Conversion Output USB Analog Serial Communication
Real-Time Curve USB Emulated U Disk Firmware Upgrade

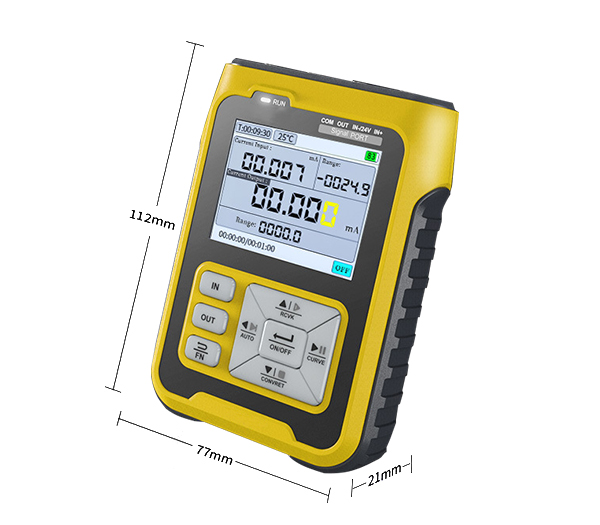

Dimension

4-20 milliamp signal generator

Details

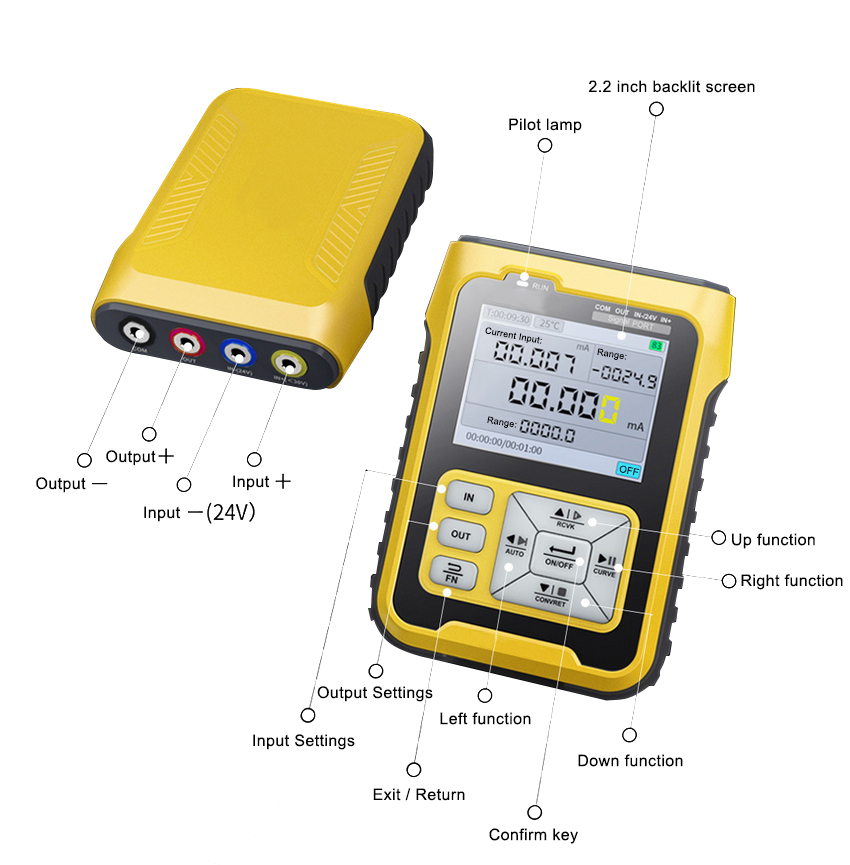

Digital 4-20 Milliamp Signal Generator Details

Applications

Signal generator applications

Tips: What is a 4 20 milliamp signal generator?

A 4-20 milliamp (mA) signal generator is a device designed to produce an electrical current signal within the range of 4 to 20 milliamps. This type of signal is commonly used in industrial applications for process control and monitoring. The 4-20mA signal is popular in industrial instrumentation because it provides a standardized, reliable, and low-noise method of transmitting analog signals over long distances.

The signal generated by a 4-20mA signal generator is often used to represent a measurement or a control setpoint. For example, sensors like pressure transducers, temperature sensors, and level sensors might output a 4-20mA signal proportional to the measured parameter. Similarly, the 4-20mA signal can be used to control devices such as valves or motor drives.

The key advantage of the 4-20mA signal is its ability to provide accurate and stable data transmission over relatively long distances without significant signal degradation or susceptibility to interference. This makes it well-suited for industrial environments where precise control and monitoring are crucial.
