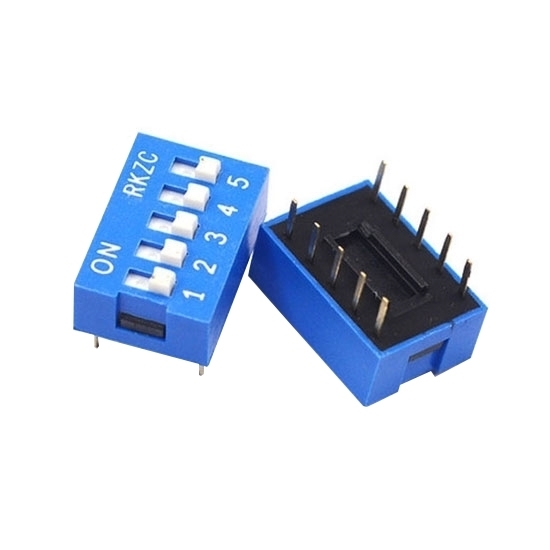

5 Position DIP Switch, 10 Pin, SPST

5 out of 5 based on 2 reviews | Write a review

$9.39

Surface mount 5 position DIP switch for sale, SPST loop, pin spacing 2.54mm. This miniature DIP switch consists of 5 switches in a single unit which can be mounted on a PCB, breadboard or motherboard to control circuits.

Color *

SKU: ATO-DIP-5P

This product has a minimum quantity of 10

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Low price 5 way electronic DIP switch with 10 pins is a dual in-line package switch that can be mounted directly on a circuit board to activate or deactivate different electronic circuits.

Specification

Model		ATO-DIP-5P
Spacing		2.54mm
Number of Switch		5
Number of Pin		10
Maximum Operating Force		8N
Push Button Stroke		2mm
Operating Temperature		-20℃~+70℃
Storage Temperature		-40℃~+85℃
Contact Resistance		Initial Value: 50MΩ, After Test: 100MΩ
Insulation Resistance		100MΩ, 500VDC
Compressive Strength		500VAC/1min
Interpolar Capacitance		5pF
Loop		SPST (Single Pole Single Throw)
Electrical Life		Tested under voltage 24V DC and current 25mA, it can be dialed back and forth about 2000 times
Rated Current	Does not Switch Frequently	10mA, Withstand Voltage 50V DC
	Switch Frequently	25mA, Withstand Voltage 24V DC
Weight		0.1kg

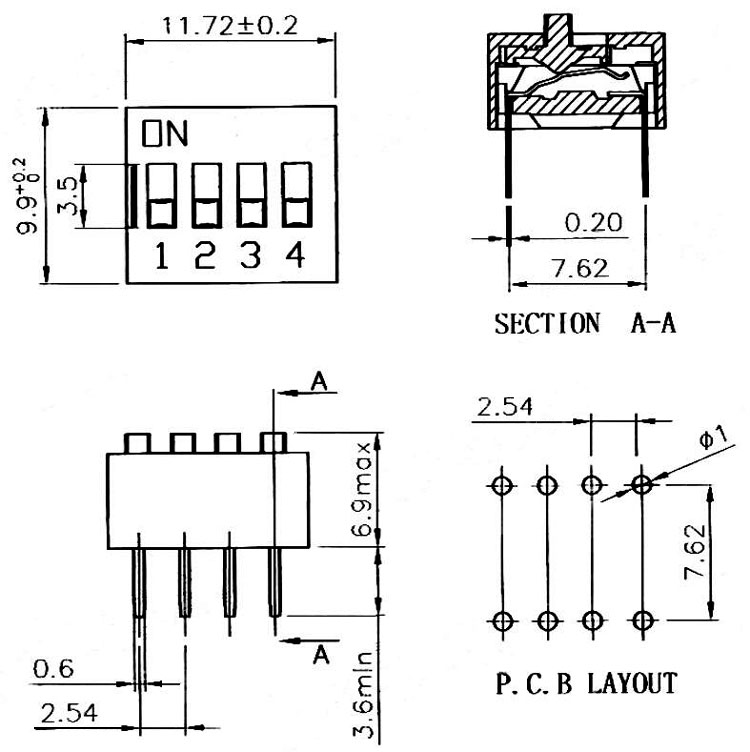

Dimensions (Unit: mm)

Tips: Difference between DIP switch and button switch

Dip switch: Dip switch is a kind of micro switch that needs to be operated manually.
Button switch: Button switch is a switch that uses a button to push the transmission mechanism to make the moving contact and the static contact press or disconnect and realize the circuit changeover.
