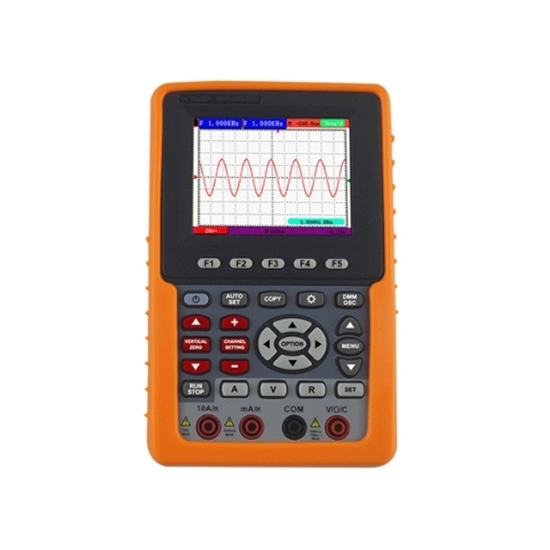

    60 MHz Handheld Oscilloscope, 500 MSa/s, Single Channel

    The 3-in-1 oscilloscope and multimeter offer a bandwidth of 60 MHz, sample rates of 500 MSa/s, and record lengths of 24k points. Digital oscilloscope has the advantages of small in size, lightweight, multifunction and long service life.
    SKU: ATO-HO-60
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Lower-cost single-channel portable oscilloscope with 500 MSa/s sample rates, 8 bits, and 6 kinds of automatic measurement functions. The single-channel oscilloscope can quickly and accurately detect the faults of the circuit under test and can serve as an assistant, and will provide a great convenience for you at work.


    Performance Characteristics

    Model ATO-HDS2061M-N
    Bandwidth 60 MHz
    Channel Single channel
    Sample rate 500 MSa/s
    Horizontal Scale (s/div) 5ns/div~100s/div, step by 1~2.5~5
    Record length 24K points
    Display 3.7" color TFT display (640 * 480 pixels)
    Waveform refresh rate 10000 wfrms/s
    Input coupling DC, AC, Ground
    Input impedance 1 MΩ±2%, in parallel with 18 pF±5 pF
    Probe attenuation 1X,10X,100X,1000X
    Max. input voltage 400V (PK - PK) (DC + AC, PK - PK, 1MΩ input impedance, probe attenuation 10 : 1), CAT II
    Bandwidth limit(typical) 20MHz / Full bandwidth
    Sampling rate range 5ns/div ~ 500s/div, step by 1 – 2 - 5
    DC Accuracy (average) average >16: ±(5% reading + 0.05div) for △V
    Vertical Sensitivity 5mV/div~5V/div (at input)
    Rise time (at input, Typical) ≤ 17.5ns
    Trigger type Edge and Video
    Trigger model Auto, Normal, Single
    Trigger level range ±6 div from the screen center
    Automatic measurement Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot,
    Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay A→B , Delay A→B
    Cursor measurement ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
    Communication interface USB Type-C
    Acquisition Mode Sample, Peak Detect, and Average
    Interpolation sin (x) / x
    Vertical Resolution (A/D) 8 bits
    Waveform Storage 4 waveforms
    Communication Interface Mini-USB,mini-RS232
    Power Supply 100V-240V AC, 50/60Hz

    Digital Multimeter Specification

    Full-Scale Reading 3 3/4 digits (max 4000-count)
    Diode 0V-1.5V
    Input Impedance 10 MΩ
    On/ Off Test < 50 (± 30) beeping
    Voltage VDC: 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input: DC 1000V
    VAC: 4V, 40V, 400V: ±(1% ± 3 digits), 750V: ±(2% ± 3 digits); Frequency: 40Hz - 400Hz;
    Max input: AC 750V (virtual value)
    Current DC: 40mA, 400mA : ±(1.5% ± 1 digit), 10A: ±(3% ± 3 digits)
    AC: 40mA: ±(1.5% ± 3 digits), 400mA: ±(2% ± 1 digit), 10A : ±(5% ± 3 digits)
    Impedance 400Ω: ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ: ±(1% ± 1 digit), 40MΩ: ±(1.5% ± 3 digits)
    Capacitance 51.2nF - 100uF: ±(3% ± 3 digits)


    • Power cord
    • CD rom
    • USB cable
    • Probe
    • Probe Adjust
    • Multimeter lead
    • Adapter
    • User manual
    • 5V, 1KHz Output
    • Capacitance Ext Module
    • Soft Bag
    • Metal Case (optional)

    Dimension (mm)

    Handheld oscilloscope dimension

    Tips: Tips for using a handheld oscilloscope

    • Thermal electronic instruments generally need to avoid frequent startup and shutdown, and the same is true for oscilloscopes.
    • If you find that the waveform is disturbed by the outside world, you can ground the oscilloscope shell.
    • The voltage of "Y input" should not be too high, so as not to damage the instrument, and it should not exceed 400V at the maximum attenuation. When the "Y input" wire is suspended in the air, interference waveforms will appear due to external electromagnetic interference, which should be avoided.
    • Before shutting down, turn the brightness adjustment knob counterclockwise to the bottom to minimize the brightness, and then turn off the power switch. Analog oscilloscope.
    • When observing and adjusting the bright spot on the screen, the brightness of the bright spot should be moderate and not too bright.
