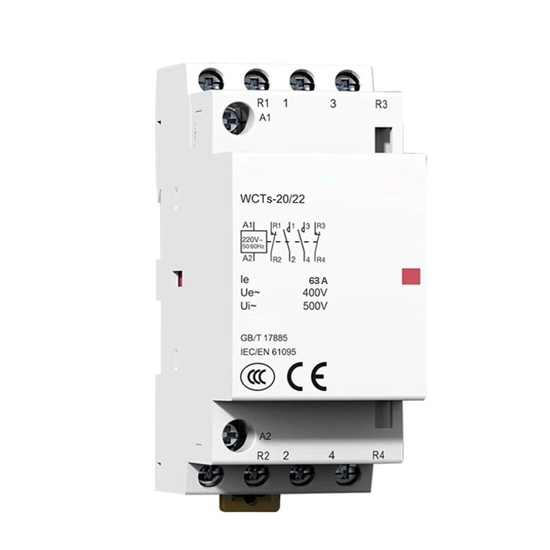

    63 amp 4 pole Lighting Contactor, 110V/220V Coil

    5 out of 5 based on 2 reviews | Write a review
    $82.47
    Buy a low price 60 amp lighting contactor online. 4 pole contactor has coil voltage 220V/110V AC, 100,000 cycles, low noise and long life, ac contactor with auxiliary contacts works at safer load, and offers reliable and convenient lighting control, supplies for home appliances, large-scale industrial and commercial.
    SKU: ATO-LCON-63
    *
    *
    Free Shipping Worldwide
    Delivery date: 10-20 days

    60 amp lighting contactor for sale is a magnetic contactor, mainly used to control lighting systems, contactor auxiliary contacts can be selected, 220V/110V 4 pole modular contactor works at lower but safer load, suitable for home, large-scale industrial and commercial.

    Specifications

    Model ATO-WCT-63
    Power Circuit
    Voltage rating (Ue)
    4P 400V AC
    Frequency 50Hz or 60Hz
    Endurance (O-C)
    Electrical 100,000 cycles
    Maximum number of switching operation a day 100
    Additional Characteristics
    Insulation voltage (Ui) 500V AC
    Pollution degree 2
    Rated impulse withstand voltage (Uimp) 2.5kv (4 kV for 12/24/48V AC)
    Degree of protection
    (IEC 60529)
    Device only IP20
    Device in modular enclosure IP40
    Operating temperature -5℃ to 60+℃
    Storage temperature -40℃ to 70+℃
    Tropicalization ( IEC 60068-1) Treatment 2 ( relative humidity 95% at 55℃ )
    ELSV compliance (Extra Low Safety Voltage) for 12/24/48 V AC versions
    The product control conforms to the SELV (Safety Extra Low Voltage) requirements

    Note: In the case of contactor mounting in an enclosure for which the interior temperature is in range between 50℃ and 60°℃, it is necessary to use a spacer, between each contactor.

    Consumption

    Type Raring (In) Control Voltage
    (V AC) (50Hz)
    Consumption Max Power
    AC7a AC7b Holding Inrush
    4P 63A 20A 24 6.5VA 53VA 2.1W
    220-240 6.5VA 53VA 2.1W
    24 6.5VA 53VA 2.1W
    220-240 6.5VA 53VA 2.1W
    220-241 6.6VA 54VA 2.2W

    Contact Type Diagram

    4NC 2N0+2NC 4NO 3NO+1NC contact type diagram

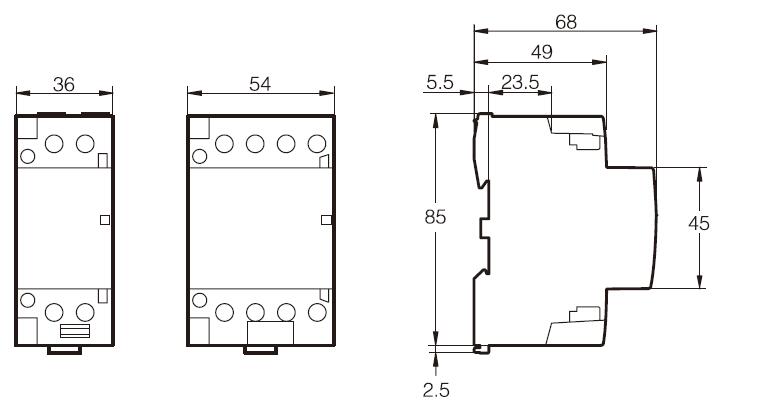

    Dimension (Unit: mm)

    Lighting Contactor Dimension

    Tips: The Applications of Household Contactors

    The lighting contactor is a commonly used household contactor Household contactors can be used in a wide range of lighting circuit control, public hot water control, geothermal system power control, automatic roller shutter control, small motor control and other occasions. It can effectively control all kinds of electrical equipment in large public places such as hotels, hotels, stations, hospitals, office buildings, etc., and can be used as terminal executive components of intelligent building systems.
