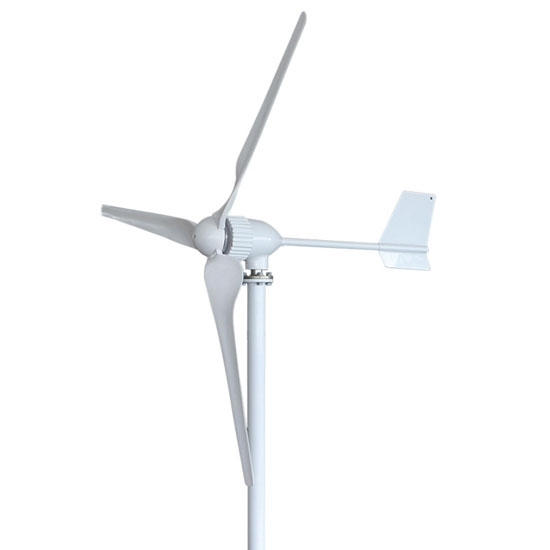

    800W Horizontal Axis Wind Turbine, 24V/48V

    5 out of 5 based on 1 reviews | Write a review
    Buy cost effective horizontal axis wind turbines for caravans, and houses, rated wind speed 12.5 m/s, wind turbine power 800 watts, rated voltage 24 volts or 48 volts. The blade material is reinforced glass fibre, with a low start-up wind speed and a high wind energy utilisation factor.
    SKU: ATO-WT-800M5
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Cheap price horizontal axis wind turbine generator for sale, rated power of 800 watt. With its advanced design and state-of-the-art components, the turbine delivers high power output while minimizing noise and vibration.


    Model ATO-WT-800M5
    Matched Controller Model ATO-WTC-800
    Rated Power 800W
    Maximum Power 820W
    Rated Voltage 24V/48V
    Start Up Wind Speed 2.5 m/s
    Rated Wind Speed 12.5 m/s
    Survival Wind Speed 40 m/s
    Wheel Diameter 2.2m
    Blase Number Reinforced Glass Fiber
    Generator Three Phase Permanent Magnet AC Generator
    Magnetic Steel NdFeB
    Generator Case Die-Casting Aluminum
    Controller System Electromahnet
    Speed Regulation Automatically Adjust Windard
    Installation Flange DN40
    Working Temperature -40°C~80°C
    Gross Weight 38kg
    Top Net Weight 31kg
    Package Dimensions 1200*395*300mm

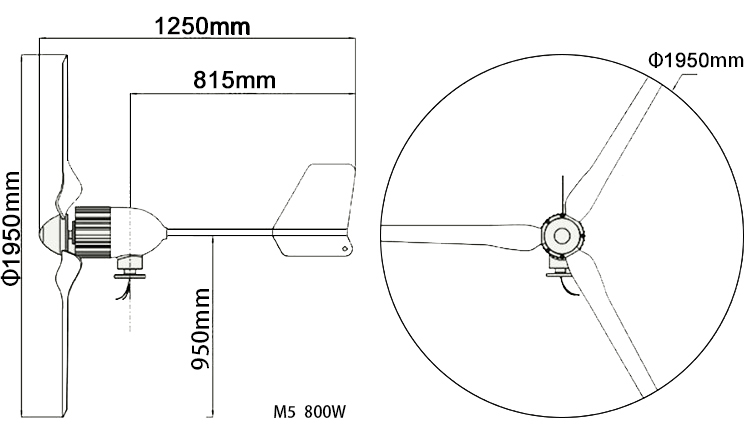

    Wind Turbine Dimensions (Unit=mm)
    800w wind turbine dimensions

    1. The starting speed is slow, the wind energy utilization rate is high.
    2. Easy to install, tube or flange connection is optional.
    3. The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
    4. Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
    5. Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.

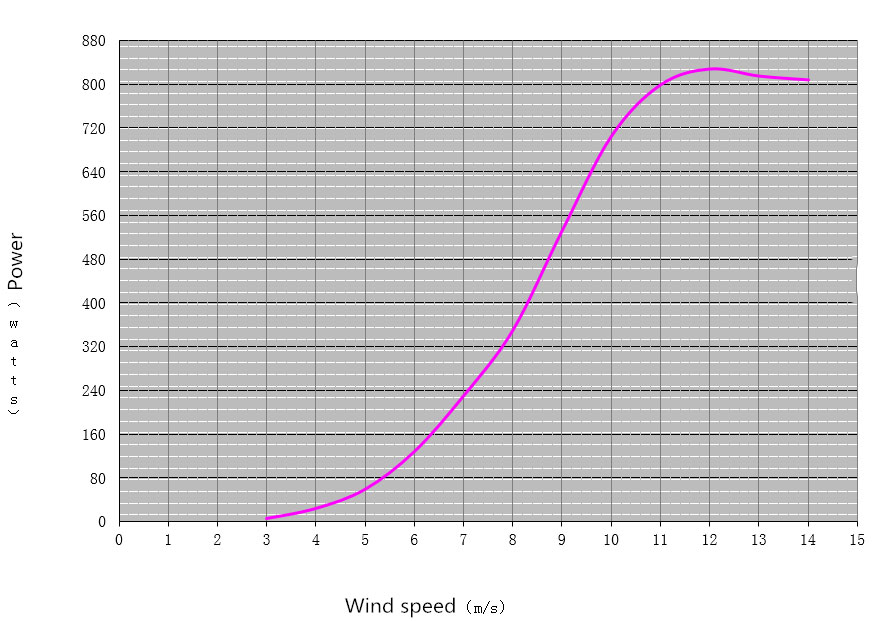

    800W Wind Turbine Power Curve
    800W wind turbine power curve

    800W Wind Turbine (Flange Seat) Exploded View
    800W wind turbine exploded view

    1. The body behind the wind wheel, 2. Front body of wind wheel, 3. Wind wheel hub, 4. Wind turbine shaft 5. Anti-loose nut, 6. Fairing, 7. Shell locking bolt, 8. Body locking bolt, 9. Wind turbine flange seat, 10. Rubber pad, 11 Bolt, 12. Flat washer, 13. Elastic washer, 14. Nut, 15. Steel tube bracket (tower), 16. Lock nut, 17. Stainless steel screw, 18. Wind wheel.

    Tips: Why do wind turbines use three blades?

    Three leaves are easy to balance, and too many leaves are difficult and expensive to balance. So, the smaller the number of blades, the better?

    First of all, the advantage of multiple blades lies in the larger torque conversion rate, but in terms of energy conversion rate, the efficiency of 4-blade and 5-blade wind machine is lower than that of 3-blade wind machine. The main reason is that the multi-blade wind machine, due to the large resistance, caused a considerable part of the disturbance to the rotation of the blade turbulence, thus reducing the conversion of energy.

    So 3 leaves is better than 4 or 5 leaves. Second, too few blades affect the efficiency of power generation.

    The smaller the blade is, the higher the rated speed is, and the higher the speed is to a certain degree. The circumferential linear speed of the blade tip is very large, which causes large wind resistance. The resistance moment limits the further improvement of power generation and speed. Therefore, too little blade is not good, three blade is mainly good balance, and low cost, after a long time to verify, has become today's common fan form.
