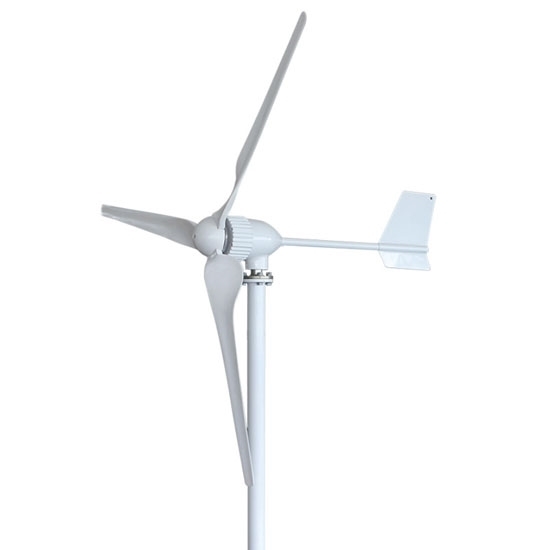

    1000W Horizontal Axis Wind Turbine, 24V/48V

    5 out of 5 based on 2 reviews | Write a review
    Buy cheap price 1 kW horizontal axis wind turbine generator for home use, 24V or 48V rated voltage, wind turbine blades made of reinforced glass fiber, widely used in houses, fishing boats, and power plants. ATO wind turbines are efficiently designed to withstand the harshest weather conditions even in low wind conditions.
    SKU: ATO-WT-1000M5
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    1000 watt horizontal axis wind turbine for sale, rated wind speed 12.5 m/s. Horizontal axis wind turbines are manufactured using the latest technology and the highest quality materials to ensure reliability and durability.


    Model ATO-WT-1000M5
    Matched Controller Model ATO-WTC-1000
    Rated Power 1000W
    Maximum Power 1050W
    Rated Voltage 24V/48V
    Start Up Wind Speed 2.5 m/s
    Rated Wind Speed 12.5 m/s
    Survival Wind Speed 40 m/s
    Wheel Diameter 2.4m
    Blase Number Reinforced Glass Fiber
    Generator Three Phase Permanent Magnet AC Generator
    Magnetic Steel NdFeB
    Generator Case Die-Casting Aluminum
    Controller System Electromahnet
    Speed Regulation Automatically Adjust Windard
    Installation Flange DN40
    Working Temperature -40°C~80°C
    Gross Weight 38kg
    Top Net Weight 31kg
    Service Life 15 years
    Warranty 18 months
    Package Dimensions 1320*395*300mm

    1. The starting speed is slow, the wind energy utilization rate is high.
    2. Easy to install, tube or flange connection is optional.
    3. The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
    4. Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
    5. Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.

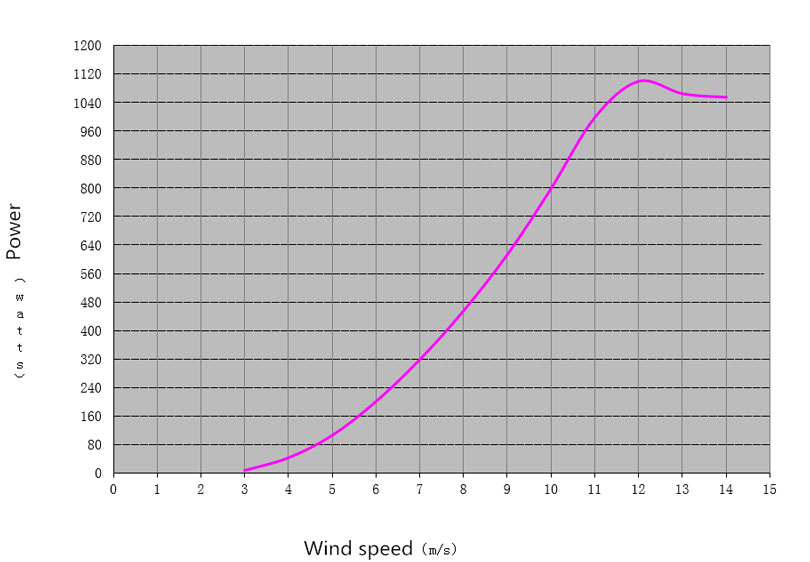

    1000W Wind Turbine Power Curve
    1000W wind turbine power curve

    1 kW Wind Turbine (Flange Seat) Exploded View
    800W wind turbine exploded view

    1. The body behind the wind wheel, 2. Front body of wind wheel, 3. Wind wheel hub, 4. Wind turbine shaft 5. Anti-loose nut, 6. Fairing, 7. Shell locking bolt, 8. Body locking bolt, 9. Wind turbine flange seat, 10. Rubber pad, 11 Bolt, 12. Flat washer, 13. Elastic washer, 14. Nut, 15. Steel tube bracket (tower), 16. Lock nut, 17. Stainless steel screw, 18. Wind wheel.

    Tips: How many watts of wind turbines should be used for household electricity?

    300W wind turbine, less power, can only be used for TV, lighting, electric fans. 500W fan can carry TV, lighting, electric fan, washing machine. The 1000W fan can supply electricity for TV sets, lighting, electric fans, washing machines and small refrigerators.
