    80A DC Contactor, single pole, 12V/24V/48V

    5 out of 5 based on 1 reviews | Write a review
    80A rated current DC contactor has one normally open contact (SPST-NO), single pole, available any way to install, coil rated voltage with 12V/24V/48V DC for choice.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

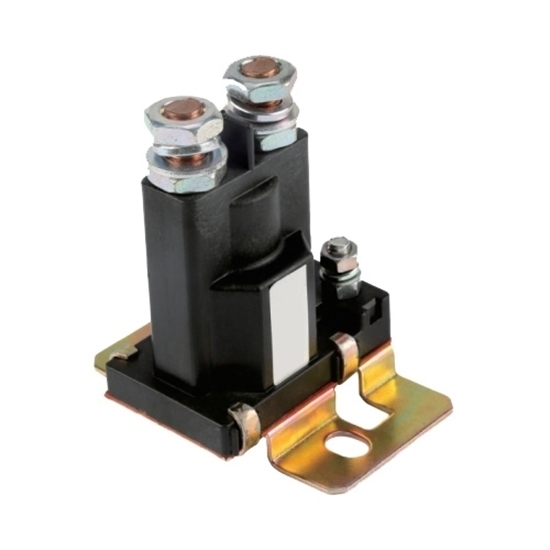

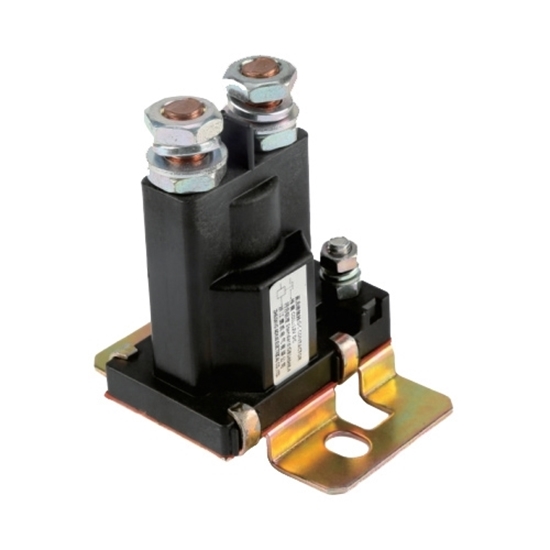

    ATO-ANR80 single pole DC contactor with normal open contact (SPST-NO), using for battery, rectification power supply, pump motor and other electronic vehicles.

    80A DC Contactor Features

    • 80 amps rated load current of contact circuit.
    • 12V, 24V, 48V DC coil rated voltage for selection.
    • The allowed range of coil voltage is ±20%.
    • 2A/48VDC and 5A/24VDC auxiliary contact rated load to choose.
    • Mechanical life up to 300 thousand times.

    80A DC Contactor Specifications

    Basics Model ATO-ANR80
    Body Size 75*55*82 mm
    Weight 210 g
    Technical Parameters Coil Rated Voltage 12V/24V/48V
    Rated Load Voltage 12~72V DC
    Contact Circuit Rated Load Current 80 A
    Contact Form 1 NO
    Overload Current ≤7 le
    Coil Power 4-10 W
    Main Contact Voltage Drop at 100A Load ≤100 mV
    The Allowed Range of Coil Voltage ±20%
    Pull-In Time (N/O Contacts to Open) ≤30 ms
    Drop-Out Time (N/O Contact to Close) ≤20 ms
    Insulation Resistance ≥50 MΩ
    Dielectric Withstanding Voltage 50Hz/60Hz 1500VAC/Min
    Electric Life Continuous 20000 times
    Mechanical Life 300 thousand times
    Environment Operating Temperature -25℃~55℃
    Operating Humidity 5~95% RH
    International Protection IP 50

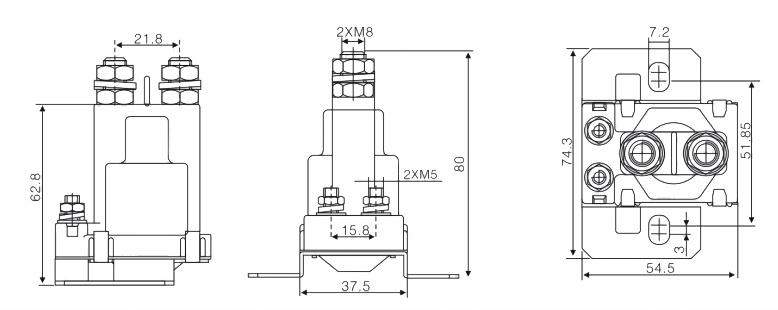

    80A DC Contactor Installation Diagram (Unit: mm)

    80A DC contactor dimension

    Tips: The contactor coil is overheated or burned down

    Possible causes of the fault:

    • Supply voltage is too high.
    • Contactor is frequently operated.
    • High ambient temperature, end face of the contactor's iron core is not smooth.
    • There's a mechanical failure on the contactor's movable iron core, which makes the iron core unable to suck, turn-to-turn short circuit.

    Maintenance method:

    1. Measure whether the working voltage on the contactor conforms to the rated voltage of the contactor coil, if it's too high or too low, adjust it to the normal voltage value.
    2. Improve the temperature of working environment, strengthen heat dissipation.
    3. Clean and wipe the end face of contactor iron core, replace the iron core when necessary.
    4. Check if the mechanical part of the contactor moves flexibly, replace a same type coil after repairing if the coil has been burned out.
    5. Eliminate the reasons for causing mechanical damage of the contactor coil, replace the coil.
