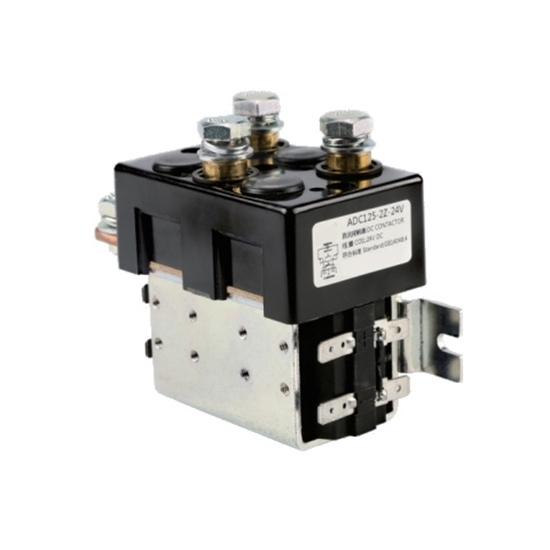

    125A DC Reversing Contactor, 2 pole, 12V/24V/48V

    5 out of 5 based on 1 reviews | Write a review
    $88.77
    Excellent conductivity reversing contacor is designed for demanding forward/reverse control of the motors. 2 pole DC contactor with 12V/24V/48V coil, 2NO and 2NC contact form, and is available with two optional auxiliary contacts.
    SKU: ATO-ADC125
    *
    Delivery date: 6-12 days

    ATO ADC125 reversing contactor is used to change the direction of rotation in alternating current motors, start them gently and to monitor their load. It is widely used in auto electric winch, telecommunication equiment, engineering machinery and other electric control system.

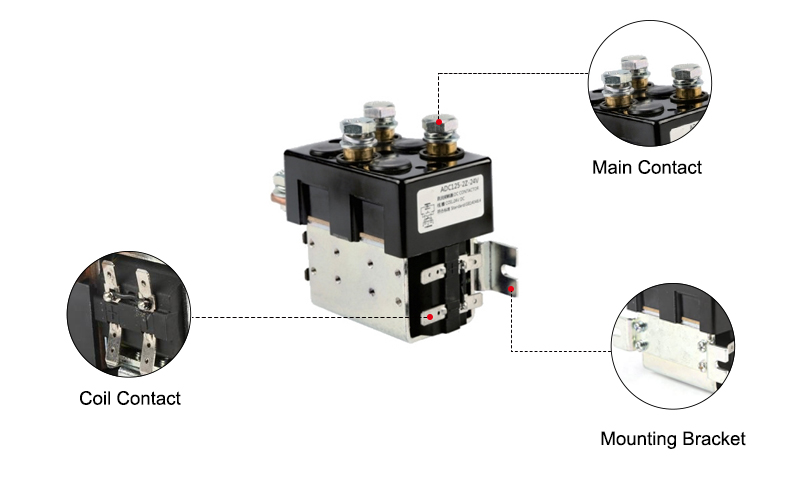

    125A DC Reversing Contactor Features

    • 125 amps rated load current of contact circuit.
    • 2 pole, DPST-NO, DPST-NC contact form.
    • 12V, 24V, 48V DC coil rated voltage for selection.
    • Main contact voltage drop at 100A, not above 100mV.
    • Mechanical life up to 300 thousand times.

    125A DC Reversing Contactor Specifications

    Basics Model ATO-ADC125
    Body Size 105*53*94 mm
    Weight 1030 g
    Technical Parameters Coil Rated Voltage 12V/24V/48V
    Rated Load Voltage 12~60V DC
    Contact Circuit Rated Load Current 125 A
    Contact Form 2NO and 2NC
    Starting Current ≤4 A
    Overload Current ≤7 le
    Coil Power ≤12 W
    Main Contact Voltage Drop at 100A Load ≤100 mV
    The Allowed Range of Coil Voltage ±20%
    Pull-In Time (N/O Contacts to Open) ≤30 ms
    Drop-Out Time (N/O Contact to Close) ≤20 ms
    Insulation Resistance ≥50 MΩ
    Dielectric Withstanding Voltage 50Hz/60Hz 1500VAC/Min
    Auxiliary Contact Rated Load (Option) 2A/48VDC, 5A/24VDC
    Electric Life Continuous 20000 times
    Mechanical Life 300 thousand times
    Environment Environmental Proctection IP 50
    Operating Temperature -25℃~55℃
    Operating Humidity 5~95% RH

    DC Reversing Contactor Circuit Diagram
    dc reversing contactor circuit diagram125A DC Reversing Contactor Installation Diagram

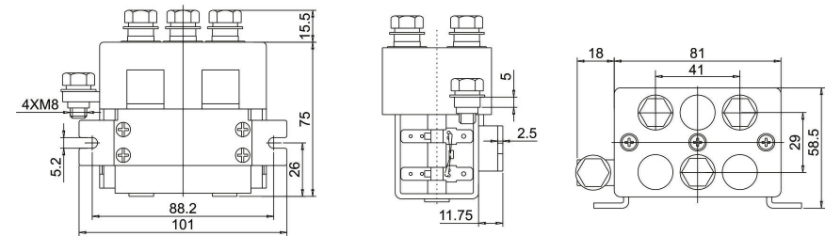

    dc reversing contactor 125a dimensionTips: How to select a DC contactor?

    1. The DC contactor shall be selected in accordance with the type of load current and degree of load, namely whether it's the AC load or DC load, the light load, general load or heavy load.
    2. Rated current of the main contact of a DC contactor should be greater than or equal to the current of load circuit. If the motor controlled by DC contactor starts, brakes or reverses frequently, the rated current of the contactor's main contact shall be generally degraded by one in its application.
    3. Rated voltage of the main contact refers to the rated voltage that the main contact can bear according to the value marked on the label, it doesn't refer to the voltage of sucking coil. When using, the rated voltage of the contactor's main contact should be greater than or equal to the rated voltage of the load.
    4. Selection of operation frequency. Operation frequency refers to the times the contactor connects and disconnects every hour. When the on-off current is large or the on-off frequency is too high, the contact will be seriously overheated, even suffer from fusion welding. In case the operation frequency exceeds the specified value, please select a DC contactor that has a higher level rated current.
    5. Selection of the coil's rated voltage. Rated voltage of the coil may not be necessarily equal to that of the main contact. When the circuit is simple and less appliances are used, please select a 380V or 220V voltage directly. If the circuit is complex and the appliances shall be used for more than 5 hours, a coil with a voltage at 24V, 48V or 110V can be selected.
