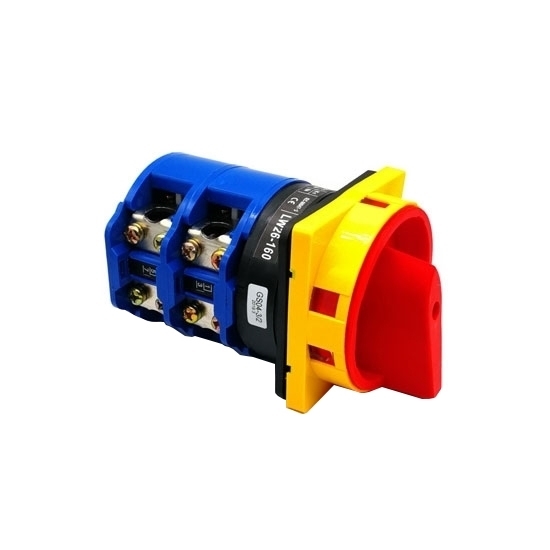

    2 Position 20A Rotary Switch, 4 Pole

    5 out of 5 based on 2 reviews | Write a review
    Selector switch 2 position for sale, 20 amp samll rotary cam switch, 4 pole, rated voltage 440V, mainly applied to AC 50 Hz, rotary switch is ideal for power switches in power lines, rotary selector switch design, easy to control, easy to install square plate.
    SKU: ATO-LW26GS20
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    2 position 4 pole rotary switche has the characteristics of compact structure, good insulation, flexible switching operation, safe and reliable. Small size, light weight and long service life.


    Model ATO-LW26GS20
    Rated Voltage 440V
    Rated Thermal Current 20A
    Rated Working Current AC-21 20A
    AC-22 20A
    AC-23 15A
    Pole 4 Pole
    Position 2 Position
    Rated Power 7.5 kW
    Escutcheon Plate M2
    Dimension A 64
    C 43
    L 43
    H 42
    E 48
    F 48
    D1 φ10
    D2 φ4.5
    Ambient Temperature -25℃-40℃
    Altitude ≤2000m
    Humidity ≤50%

    Dimensions (Unit=mm)
    Rotary switch 4-pole dimension

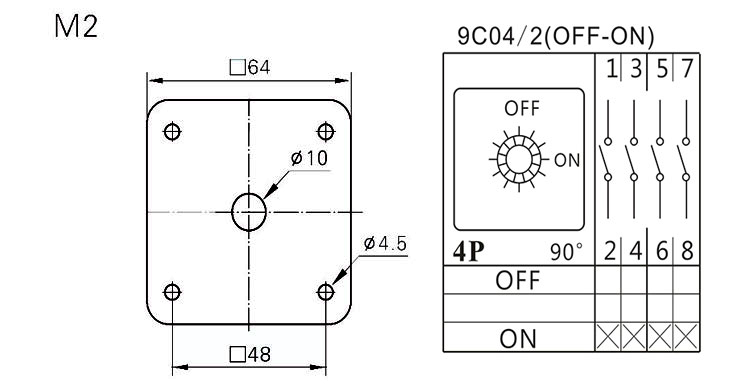

    20A 4 Pole M2 Panel

    Rotary switch escutcheon plate
    Tips: What is a rotary switch?

    The rotary switch is actually a multi-function, multi-loop combination switch for controlling the circuit to issue control commands or for remote control. It can also be used as a voltmeter, a commutation switch for an ammeter or as a start and adjust for a small-capacity motor. Speed and commutation control.
