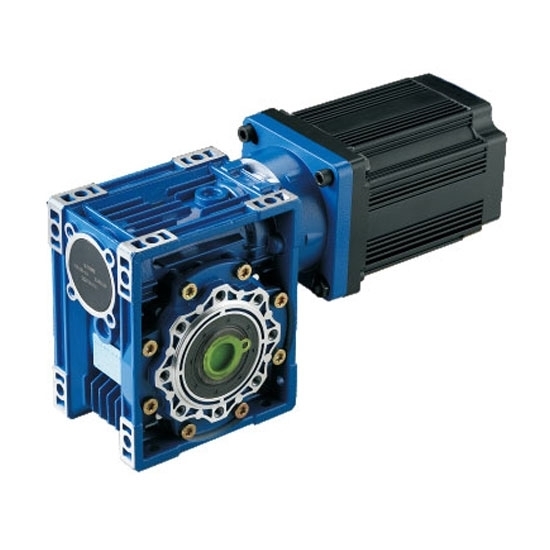

    90 W DC Worm Gear Motor, 12V/24V/48V

    5 out of 5 based on 1 reviews | Write a review
    Economical price 90 W DC worm gear motor for sale online, optional 12V, 24V, 36V or 48V power supply, gear ratio from 7.5:1 to 60:1, rated speed 2000 rpm, rated torque 0.29N·m, motor dimension 86mm, brushless design for electric car and industrial equipment.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy 90 W worm gear motor at best price. This BLDC gear motor is best for new energy electric car, renewable energy systems, industrial equipment which require high torque density and compact occasions.


    Motor Model ATOD5BLD90-12A ATOD5BLD90-24A ATOD5BLD90-36A ATOD5BLD90-48A
    Motor Type BLDC Motor
    Power 90W
    Voltage 12V DC 24V DC 36V DC 48V DC
    Rated Current 9.38A 4.69A 3.13A 2.34A
    No Load Current <0.85A <0.7A <0.6A <0.5A
    No Load Speed 2700 rpm
    Rated Speed 2000 rpm
    Rated Torque 0.29N·m
    Peak Torque 0.87N·m
    Motor Dimension 86mm
    Shaft Diameter 11mm
    Construction Permanent Magnet
    Direction of Rotation CW/CCW
    Certificate CCC, CE, ROSH, LVD, EMC
    Gear Ratio 7.5, 10, 15, 20, 30, 40, 50, 60
    Recommended Drive Model ATO-BLD300B ATO-BLD300B ATO-BLD300B ATO-BLD300B
    What Parameters of ATO Worm Gear Motors Can Be Customized?
    Power Yes
    Voltage Yes
    Speed Yes
    Shaft Yes
    Motor Length Yes
    Motor Lead Yes

    Allowable Torque with Gear Head

    Gear Ratio 7.5 10 15 20 30 40 50 60
    Rated Output Speed (rpm) 267 200 133 100 67 50 40 33
    Rated Output Torque (Nm) 2.6 3.4 5.2 6.7 9.5 10.0 10.0 10.0


    • This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
    • The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

    Dimensions (Unit: mm)

    Mounting screws are included with gearhead

    Dimensions of 90 W DC Worm Gear Motor

    Speed-Torque Curve

    90 W DC Worm Gear Motor Speed Torque Curve

    • Instantaneous maximum torque line
      The maximum torque momentarily impacts the load when the motor is started.
      Beyond this torque, the over-current protection of the driver will cause the motor to stop.
    • Short time operation area
      The motor can run at a short time within this torque range at different speeds.
      If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
    • Rated operating torque line
      The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
    • Continuous operating area
      When the motor rotates at different speeds, it runs continuously in this corresponding zone.


    90W DC Worm Gear Motor Details

    Tips: Factors affecting the service life of DC worm gear motors

    • The installation and commissioning process of the worm gear motor was not strict enough, and the problems found were not dealt with in time.
    • the quality of the worm gear motor itself is poor.
    • Insufficient maintenance of various indicating instruments and incorrect indications of the instruments, resulting in operating errors.
    • The maintenance and maintenance of the worm gear motor is not enough, and the operation of the equipment is not regularly checked on time.
    • The worm gear motor is overloaded, such as large defects.
    • The job responsibility system is not sound enough, such as job responsibility system, job operation method, shift system, safety technology, etc.
    • The operator is not familiar with the equipment structure, performance, allowable load, lubrication and related technical parameters.
    • Insufficient lubrication management, unreasonable selection of lubricating oil, failure to clean up the outlet end and return end of the lubrication pipeline, and timely replacement of lubricating oil in accordance with relevant regulations.

    In order to prolong the service life of the worm gear motor, you should pay attention to standard operation during use. Whether the operation method is correct can often directly affect the quality of the equipment and production safety. In addition, pay attention to maintenance and overhaul in peacetime, and try to prevent failures in advance. If problems are found, they must be dealt with in a timely manner to avoid small things from becoming bigger.
