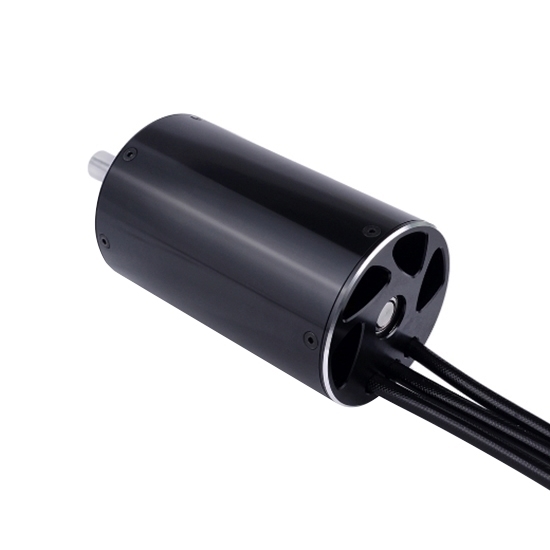

980KV Brushless RC Boat Motor

5 out of 5 based on 1 reviews | Write a review

$195.82

Powerful brushless RC boat motor for sale at lower cost, with 980KV rotation speed, 30V Max voltage, 5200W Max power and 172A Max current. A waterproof brushless motor with incredible smoothness, reliability and maximum RPM, is ideal for RC boats.

SKU: ATO-RB-980

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Get a low-price 980KV brushless motor online. High torque brushless motor with maximum voltage 42V, 7350W Max. power. Ultra-thin (0.2mm) lamination stator which makes the motor easier to remove and replace.

Specifications

Model: ATO-SP-056112-10
Rotational Speed: 980KV
Maximum Current: 175A
Maximum Voltage: 42V
Maximum Power: 7350W

Length: 112mm
Diameter: 56mm
Winding Type: DELTA
Number of Turns: 4D
No-load Current: 2.2A

Max Seed: 30000KV
Number of Rotor Stages: 4
Shaft: 10mm
Weight: 1040g

Features

700KV brushless motor has a 4-stage 12-slot high-torque motor design.
CNC machined billet, 6061-T6 aluminum heat sink.
High-purity copper coil for maximum performance.
High-speed ABEC5 oversized bearings.
Highly balanced rotor, high smoothness, accuracy and high speed.
Ultra-thin (0.2mm) stator blades.
Removable/replaceable rotor.
Precision design for maximum energy conversion.

Dimension (Unit: mm)

700KV brushless rc boat motor dimension

Detail

700KV brushless rc boat motor detail

Tips: How long do brushless RC motors last?

If you are looking for a motor with a long life expectancy, consider a brushless motor. Brushed motor life is limited by the brush type and can attain 1,000 to 3,000 hours on average, while brushless motors can attain tens of thousands of hours on average, as there are no brushes to wear.
