2000KV Brushless RC Boat Motor

5 out of 5 based on 1 reviews | Write a review

$205.43

Powerful brushless RC boat motor with 1800KV rotation speed, Max. speed up to 50000KV. Waterproof brushless motor for RC boat comes with motor size Φ36*80 mm, Max. current 105A and Max. voltage 19V. Small brushless motor has high-purity copper coil for maximum performance.

SKU: ATO-RB-2000

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Factory price 1800KV brushless motor with 22V Max voltage, Max. power 2000W. High torque brushless motor with high power and rotation speed to provide a longer run time for RC boat.

Specification

Model: ATO-RB-4074
Rotation Speed: 2000KV
Max. Current: 93A
Max. Voltage: 30V
Max. Power: 2800W
Motor Size: Φ40*74 mm
Winding Type: WYE
Number of Poles: 2.25Y
No-load Current: 3.1A
Max. Speed: 60000KV
Shaft: Φ5 mm
Number of Rotor Poles: 4
Weight: 358g

Features

2000KV brushless motor has a 4-stage 12-slot high-torque motor design.
CNC machined billet, 6061-T6 aluminum heat sink.
High purity copper coil for maximum performance.
High-speed ABEC5 oversized bearings.
Highly balanced rotor, high smoothness, accuracy and high speed.
Ultra-thin (0.2mm) stator blades.
Removable/replaceable rotor.
Precision design for maximum energy conversion.

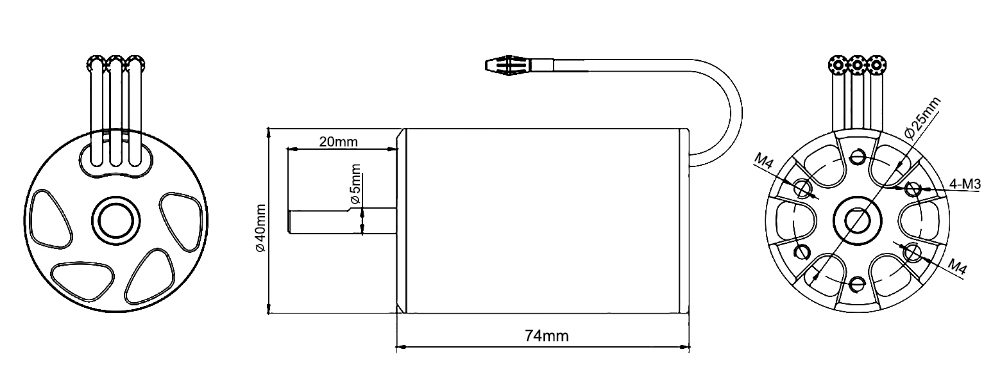

Dimension (Unit: mm)

2000KV brushless rc boat motor dimension

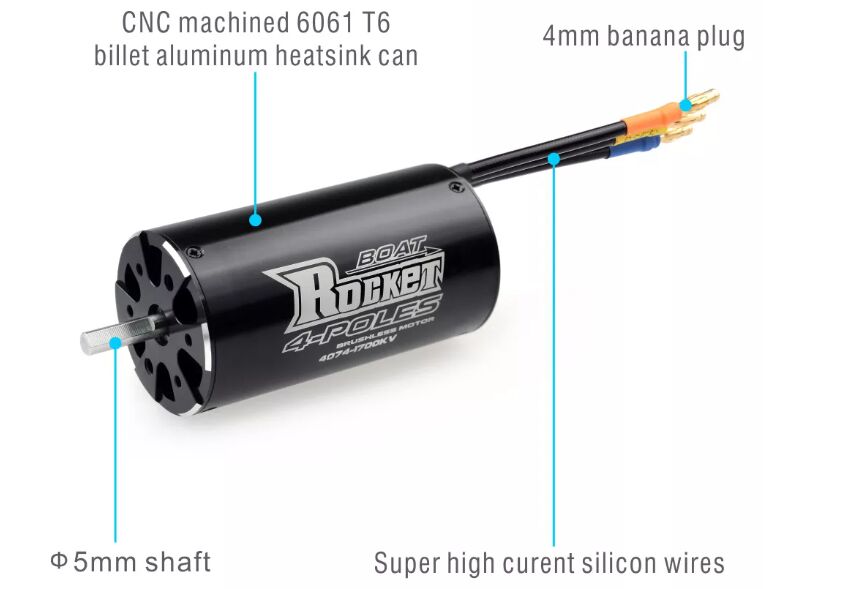

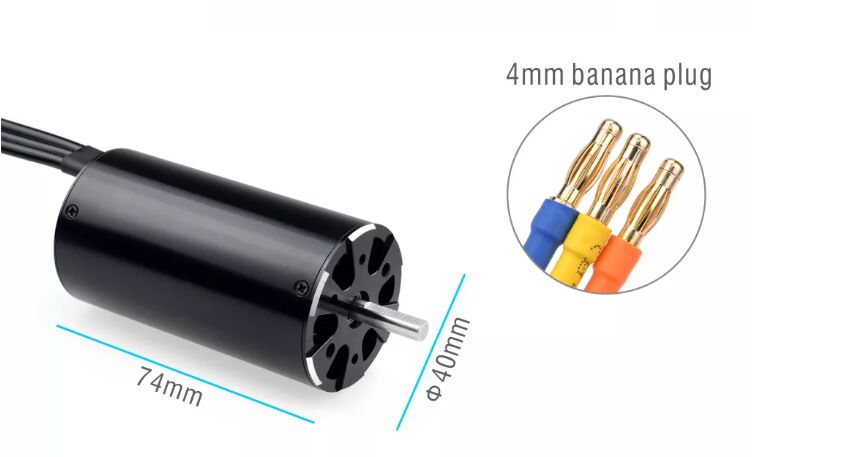

Detail

2000KV brushless rc boat motor details

Tips: Is using brushless motors better than brushed motors for RC boats?

Yes. RC boats usually use more brushless motors. The quality and performance of brushless motors are better than brushed motors, and brushless motors do not require long-term maintenance, and they last longer. RC boats with brushless motors are usually more expensive than boats with brushed motors.
