800KV Brushless RC Boat Motor

5 out of 5 based on 1 reviews | Write a review

$285.58

Factory price 800KV brushless RC boat motor for sale. Powerful brushless motor for RC boat comes with Max. current 78A, 4200W Max. power, motor size Φ40*92 mm. Small brushless motor has highly balanced rotor, high smoothness, accuracy and high speed advantages.

SKU: ATO-RB-800

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

800KV brushless motor online which is designed for RC boats. A waterproof brushless motor has a maximum voltage of 54V, a 4-stage 12-slot high-torque motor design.

Specification

Model: ATO-RB-4092
Rotation Speed: 800KV
Max. Current: 78A
Max. Voltage: 54V
Max. Power: 4200W
Motor Size: Φ40*92 mm
Winding Type: WYE
Number of Poles: 4Y
No-load Current: 1.1A
Max. Speed: 50000KV
Shaft: Φ5 mm
Number of Rotor Poles: 4
Weight: 455g

Features

800KV brushless motor has a 4-stage 12-slot high-torque motor design.
CNC machined billet, 6061-T6 aluminum heat sink.
High-purity copper coil for maximum performance.
High-speed ABEC5 oversized bearings.
Highly balanced rotor, high smoothness, accuracy and high speed.
Ultra-thin (0.2mm) stator blades.
Removable/replaceable rotor.
Precision design for maximum energy conversion.

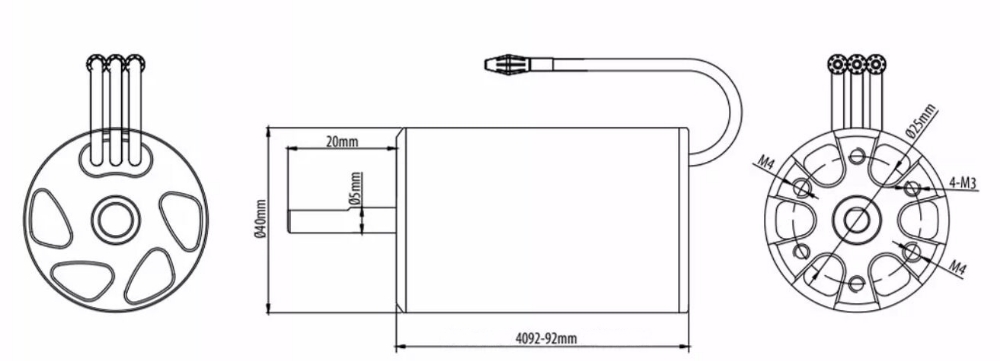

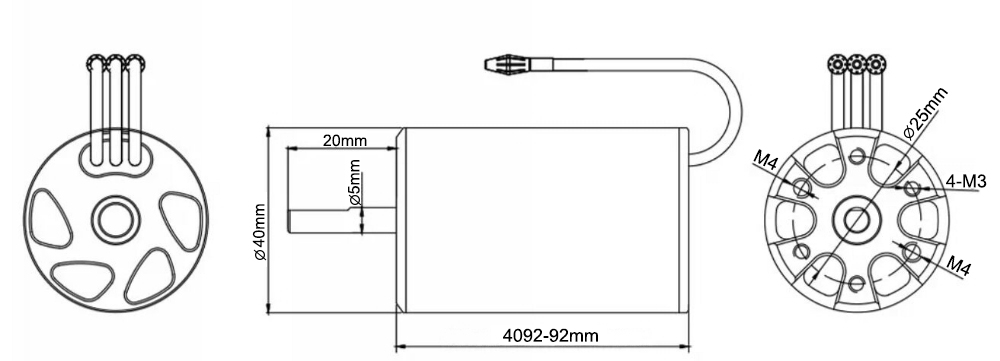

Dimension (Unit: mm)

800KV brushless rc boat motor dimension

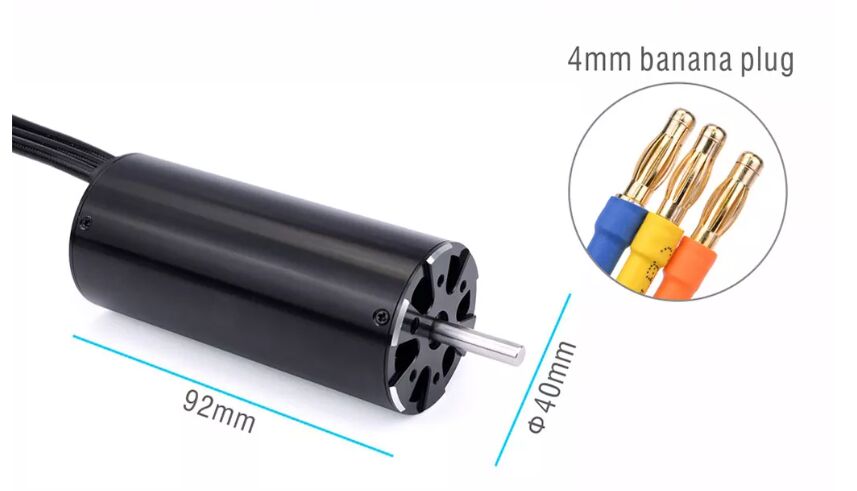

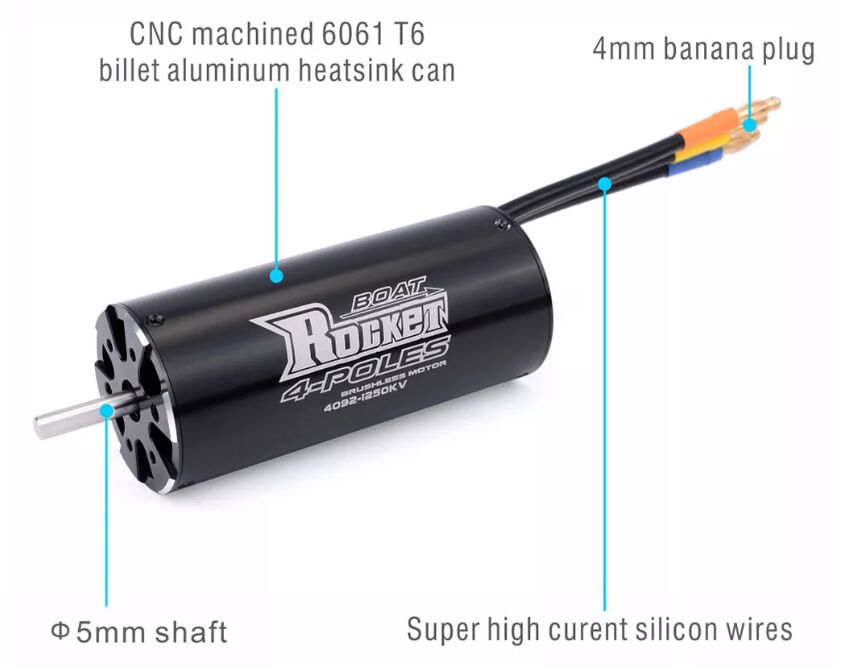

Detail

800KV brushless rc boat motor detail

Tips: How to choose the right diameter of brushless RC boat motor?

You want to start with the correct can size (motor diameter) to suit the size and weight of the hull you intend to run.

Here are some basic starting point suggestions for a single motor hull.

28-29mm can size- will power most hulls up to 600mm.
36mm can size- up to around 800mm.
40mm can size- up to 1200mm as long as it’s a light brushless dedicated or abs hull.
Anything over that will require 56– 58mm motor.
