1200KV Brushless RC Boat Motor

Waterproof 1200KV brushless RC boat motor with Max. speed 60000KV, 4-stage 12-slot high-torque motor design, RC boat brushless motor's excellent torque ensures long operation.

Specifications

• Model: ATO-RB-3670
• Rotational Speed: 1200KV
• Maximum Current: 45A
• Maximum Voltage: 36V
• Maximum Power: 1600W
• Length: 70mm
• Diameter: 36mm
• Winding Method: WYE
• Number of Turns: 4Y
• No-load Current: 1.2A
• Max Speed: 60000KV
• Shaft: 5mm
• Number of Rotor Stages: 4
• Weight: 275g

Features

• 4-stage 12-slot high-torque motor design.
• CNC machined billet, 6061-T6 aluminum heat sink.
• High-purity copper coil for maximum performance.
• High-speed ABEC5 oversized bearings.
• Highly balanced rotor, high smoothness, accuracy and high speed.
• Ultra-thin (0.2mm) stator blades.
• Removable/replaceable rotor.
• Precision design for maximum energy conversion.

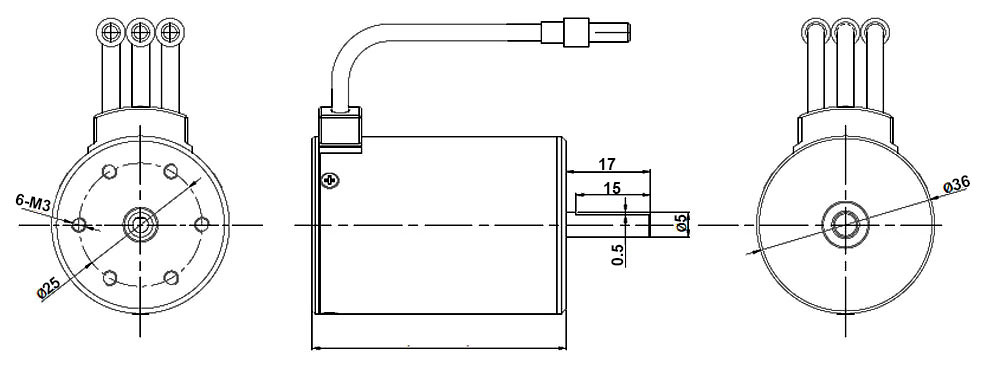

Dimension (Unit: mm)

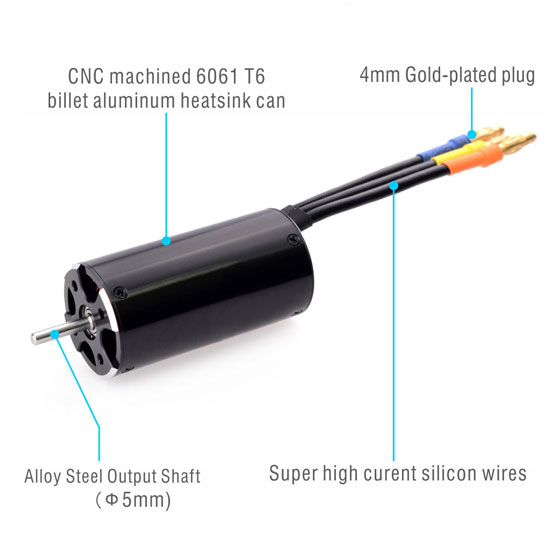

Detail

Tips: Do brushless RC motors wear out?

Since brushless DC motors have no brushes to get worn out, they represent a huge leap forward in technology. Brushless motors have significantly higher efficiency and performance and lower susceptibility to mechanical wear than their brushed counterparts.
