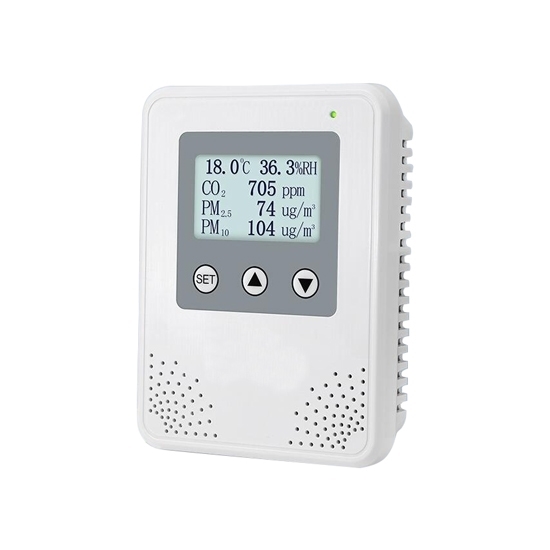

Digital Air Quality Sensor for Home, RS485 Output

5 out of 5 based on 1 reviews | Write a review
$320.89
The digital air quality sensor for home purchased uses a laser dust sensor to measure the PM2.5 or PM10 concentration in the environment. Available with isolated/non-isolated RS485 output signals, wide power supply range, perfect over-voltage and reverse connection protection, and with the buzzer, it can realize a more comprehensive independent control/alarm function.
*
SKU: ATO-AQS-LFG303
30-day Returns
Free Shipping
Delivery date: 6-12 days

Indoor air quality sensor for sale, this ATO shop air quality monitoring sensor with digital display optional isolated/non-isolated RS485 output signal, long service life, maintenance-free, fast response, stable performance and high accuracy. Can be optional relay output, equipped with a display and keys can be set to different relay operating mode, providing 3-color LED indicator intuitive prompts the degree of environmental pollution. Compact size, simple installation, can be widely used in all kinds of commercial complexes, intelligent buildings office environment, hospitals, schools and other places in the air PM2.5/PM10 particle monitoring.

Specification

Model ATO-LFG601
Temperature
Sensor Digital Temperature Sensor
Range 0~50°C
Accuracy ±0.5°C @ 20°C, ±1°C @ 0~50°C
Response Time 10~30s (20°C, slow air)
Relative Humidity
Sensor Digital Humidity Sensor
Range 0~100%RH
Accuracy ±3%RH @ 20°C, 20~80%RH
Response Time ≤10 seconds (20°C, slow air)
PM2.5
Sensor Laser Dust Sensor
Particle Size 0.3–2.5 μm
Range 0–500 μg/m³
Consistency ±10% FS @ 100–500/600 μg/m³
Resolution 1 μg/m³
PM10
Sensor Laser Dust Sensor
Particle Size 0.3–10 μm
Range 0–600 μg/m³
Consistency ±10%FS@100–500/600 μg/m³
Resolution 1 μg/m³
CO2
Sensor NDIR sensor with ABC self-check
Range 0–5000 ppm
Accuracy ±40 ppm ±3% MV
Response Time (T90) 2 min
Power Supply 12–36 VDC / 24 VAC ±20%
Output Signal Isolated/non-isolated RS485 (optional)
Operating Environment 0–50°C & 0–95% RH (no condensation)
Storage Temperature –20–60°C & 0–95% RH (no condensation)
Display and Buttons Yes
LED Indicator Lights Green: Good
Yellow: Average
Red: Poor
Protection Rating IP30
Installation Method Indoor type
Housing Material PC
Net Weight 148g


Feature

  • This home air quality sensor adopts laser dust sensor, detecting particle size 0.3~10μm.
  • Equipped with a variety of output methods to choose from, adapting to different scene requirements.
  • Perfect over-voltage and reverse connection protection, high long-term reliability.
  • 3-color LED indicator can intuitively prompt the degree of environmental pollution.
  • Air quality monitoring sensor housing design is lightweight and beautiful, standard 86 box mounting hole spacing.

Dimension (unit: mm)

Air quality sensor for home dimension

Wiring Diagram

Air quality sensor for home detail

Installation Methods

Air quality sensor for home installation method

  • Open the transmitter by pressing the cover button under the back cover of the indoor air quality sensor (e.g. 1, 2).
  • Follow the wiring diagram to complete the electrical connections and introduce the cables through the crossing holes (e.g. 3, 4).
  • The back cover of the digital air quality transmitter has three mounting holes, use expansion screws to fix it on the wall (e.g. 5), or you can use screws to fix it on top of the pre-buried 86 box on the wall (e.g. 6).
  • Align and fasten the position of the front cover with the bottom case to complete the installation (e.g. 7).

Application

Air quality sensor for home application

Tips: How to choose the right air quality sensor for home use?

When choosing an air quality sensor for home use, it is recommended to focus on the following points: First, make sure that the air particulate sensor is capable of detecting the type of pollutant you are concerned about. Second, check the sensor's detection accuracy and response speed. In addition, consider whether the air quality monitoring sensor has real-time monitoring, historical data logging, and compatibility with smart home systems. Finally, choose the right sensor according to the size of your home and make sure its coverage is adequate.

Indoor air quality sensors require regular maintenance to ensure their accuracy and long-term stability. Typically, the detection element of an air quality transmitter needs to be replaced every 6 months or 1 year. Some sensors offer automatic calibration, but it is also important to regularly check the working condition of the device and clean the sensor surface to avoid dust accumulation.
