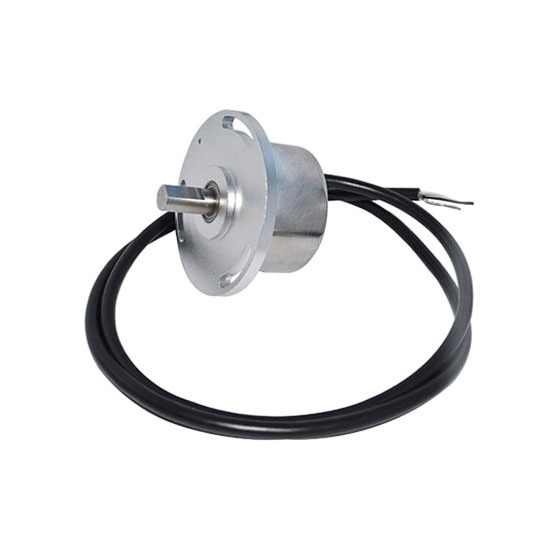

Magnetic Angle Sensor, Non-Contact, 4-20mA/ 0-20mA

5 out of 5 based on 1 reviews | Write a review

$389.99

Magnetic angle sensor is processed by DSP to achieve programmable intelligent control of linearity correction, temperature compensation, 4-20mA or 0-20mA output signal, digital filtering, multiple different slope settings and the range of 0 ~ 360°.

Precision *
Measuring Range *
Output Signal *

SKU: ATO-AS-420

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

ATO angle sensor is powered by 9V ~ 36V power supply, with reverse and anti-pulse peak voltage protection function, suitable for water, oil, gas, vibration, shock and other harsh industrial environment.

Specification

Model	ATO-LW128B	ATO-HW228B
Full Range Precision	±0.3°	±0.1°
Temperature Drift	±0.02°/°C
Zero Drift	4mA
Measuring Range	0~30°, 0~60°, 0~90°, 0~180°, 0~270°, 0~360° (Optional)
Output Signal	4-20mA, 2-20mA (Optional)
Output Load	240Ω
Voltage Input	9-6V DC
Typical Voltage	12V
Sampling Frequency	1KHz
Linearity	0.5%-0.15%
High Vibration Resistance	>20000g
Frequency Response	100Hz
Angle Resolution	0.022°
Full Range Accuracy	±0.3°
Operating Temperature	-40°C~+85°C
Storage Temperature	-55°C~+100°C
Power-on Startup Time	0.2s
Response Time	0.01s
Average Operation Time	≥55000 Hour/Time
Cable	with 1.5m length shielded cable 3*0.3mm2
Power Reverse Protection	40mV
Signal Reverse Protection	40mV
Running Torque	<10mN·m
Material	Shell: Aluminum alloy oxidation Back Cover: Stainless steel Shaft: Stainless steel
Protection Grade	IP66
Weight	1kg

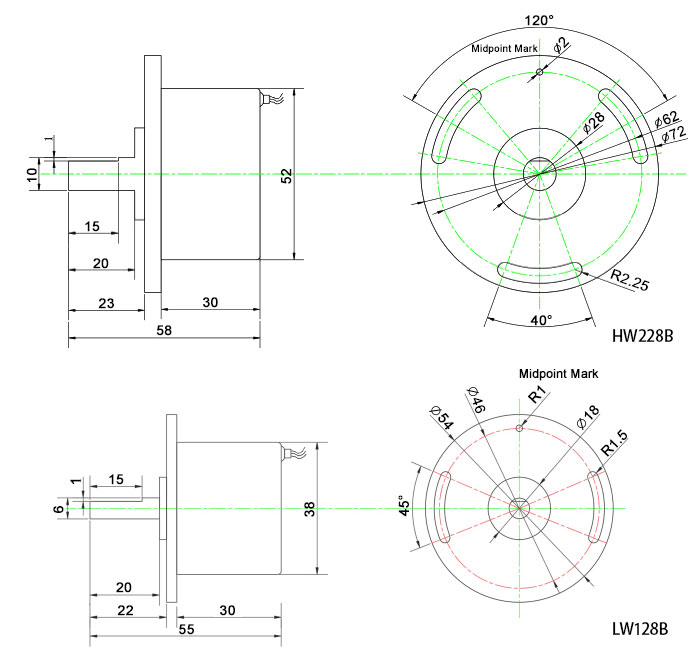

Dimensions (Unit: mm)

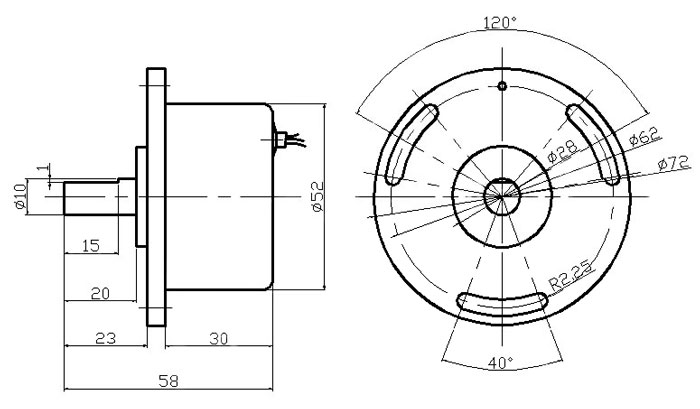

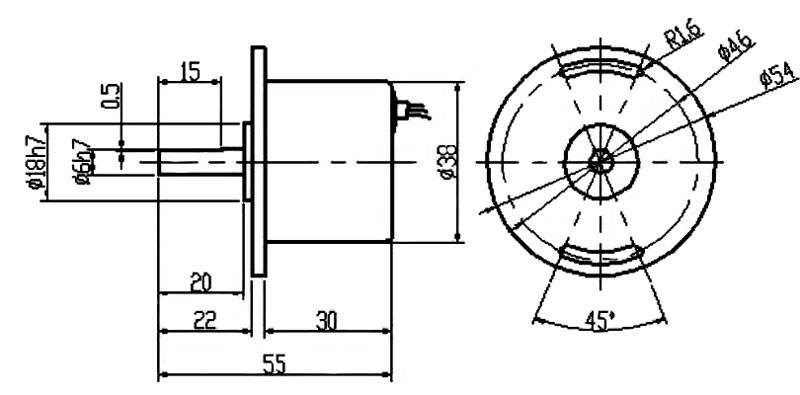

Dimensions of angle sensor non-contact 4-20ma 0-20ma

Wiring Diagram

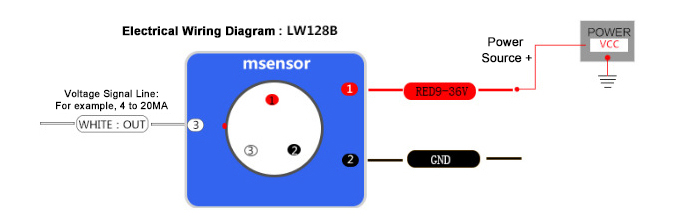

Angle sensor non contact 4-20ma 0-20ma wiring diagram

Red	Black	Green
1	2	3
VCC (Power Positive)	GND (Power Negative)	Signal Cable

Installation Methods

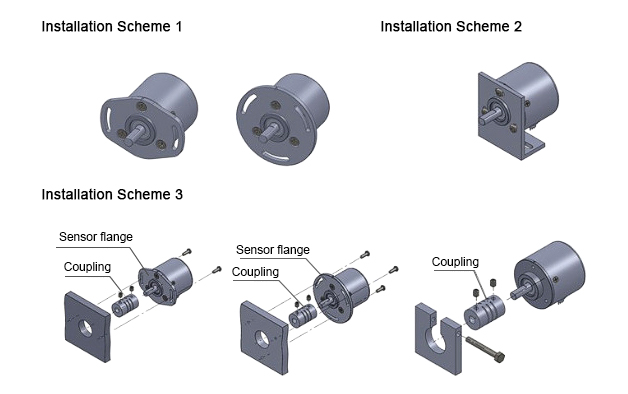

Magnetic angle sensor installation method

Angle Measuring Chart

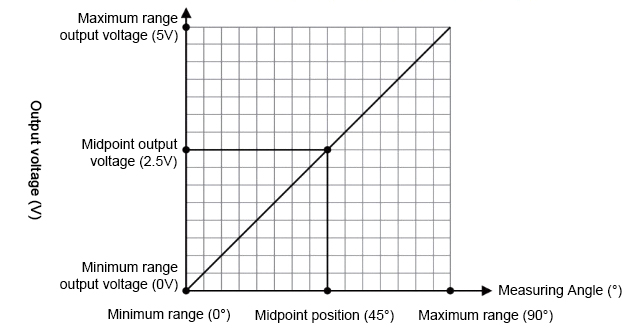

Angle sensor non contact angle measurement table

Applications

Magnetic angle sensor application

Tips: Angle sensor applications

Industrial machinery, construction equipment, petrochemical equipment, medical equipment, aerospace instruments, national defense industry and other rotating speed and Angle measurement.
Automotive electronic foot pedal angular displacement, steering wheel position, seat position and headlight position.
Automatic robot, motion control, rotary motor rotation and control.
