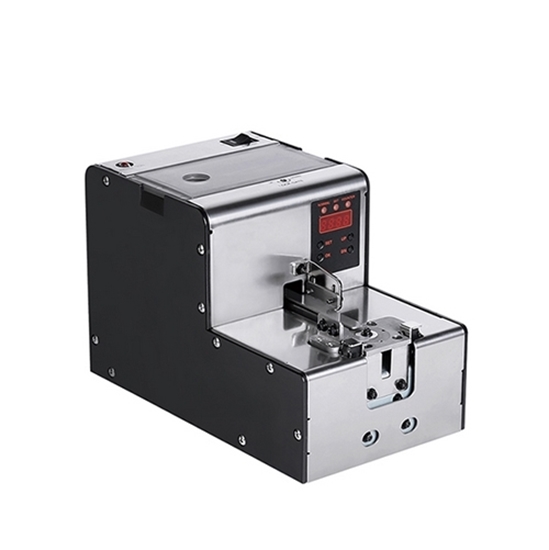

    Automatic Turntable Screw Feeder M1.7-M5.0

    Automatic screw feeder with capacity 200-220 (CC), input AC100-240V (50/60HZ) and output 12V/2.0A. Screw feeder machine has adjustable speed of supply, fast (HI) 0.7 and slow (LO) 1.5. Automatic screw feeder with applicable screw specifications M1.7, M2.0, M2.3, M2.6, M3.0, M3.5, M4.0, M4.5, M5.0 (M0.6 customized) and screw thread length≤19(mm). Usually used in batching of powder materials such as building materials, metallurgy, electric power, chemical industry, etc.
    SKU: ATO-RJ1
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Automatic screw feeder with applicable screw specifications M1.7, M2.0, M2.3, M2.6, M3.0, M3.5, M4.0, M4.5, M5.0, capacity reach to 200-220 (CC), fast speed and high precision, widely apply in metering and batching of powder materials in industrial production environments.


    Model ATO-ASF-RJ1
    Shell Material Black baking varnish
    Applicable Screws Spec. M1.7, M2.0, M2.3, M2.6, M3.0, M3.5, M4.0, M4.5, M5.0
    Screw Head Shape 0/00/1/2(+)
    Screw Thread Length ≤19mm (without screw head thickness)
    Screw Head Thickness ≥0.2mm
    Installable Screw Quantity at M1.4 2000 pcs
    at M3.5 600 pcs
    Supply Speed (Sec/EA) high 0.7
    low 1.5
    Input AC 100-240V (50/60Hz)
    Output 12V/2.0A
    Capacity 200~220cc
    Weight 3.1kg


    1. Shell material of the automatic screw feeder can select stainless steel or black baking varnish, cross-feeding mechanism, and precise positioning point. Screw discharging is smooth, fast speed, high precision, and strong stability, and it is not easy to slipping, stucking, bonding, etc.
    2. Screw feeder machine’ vibration, drum and turntable are driven by brushless motors. Digitalization control, can perform efficient function setting operation on drum motor, turntable motor and vibration motor.
    3. The automatic screw feeder machine has individual counting function and total counting function. Each time a screw is removed, the number increases by 1. Look at the value on display to know if you missed the screw.
    4. Automatic fault alarm function, anti-overcurrent, anti-overvoltage, anti-leakage, anti-breakdown.
    5. Automatic screw feeder is a professional design for automatic locking screw machines, such as XY-axis, 3-axis, 4-axis and screw-locking robots, etc.


    Turntable screw feeder working

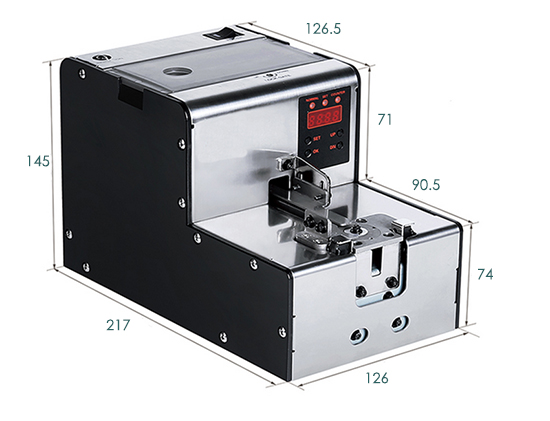

    Automatic Screw Feeder Dimension Drawing (MM)

    Automatic turntable screw feeder size

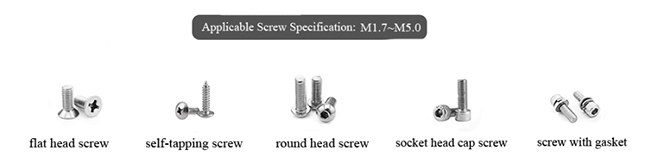

     Applicable screw specification of turntable screw feeder

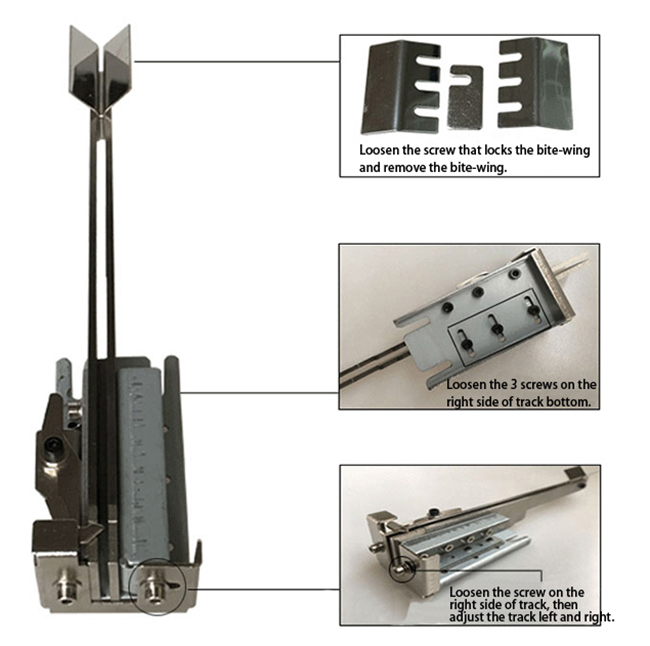

    Orbital Adjustment for Automatic Screw Feeder

    1. Loosen the screw that locks the bite-wing and remove the bite-wing.
    2. Loosen the 3 screws on the right side of orbital bottom. (Just make the orbital loose, no need to unscrew screws completely)
    3. Loosen the screw on the right side of orbital front baffle, then adjust the orbital left and right.
    4. Adjust the orbital width according to size of the screws used. Bite-wing should be adjusted to be about 0.5mm larger than the thickness of thread (make screws can go back and forth smoothly).
    5. Lock the bite-wing. Keep the width between the bite-wing and orbital front baffle consistent, and then tighten screws on the right side of the front baffle and the screws on the orbital bottom.

     Orbital adjustment for automatic screw feeder

    Tips: What are the reasons for the blockage of screw feeder?

    1. It may be that the material is viscous. For example, when the screw feeder is stopped, the internal material is not conveyed cleanly. Due to time problems, the material is stuck inside, which causes the screw feeder to block the material.
    2. It may be that the screw conveyor has hanging bearings, and the hanging bearings have accumulated a lot of cemented materials during long-term use, which has accumulated over time and formed a blocking button, which eventually caused the screw feeder to block the material.
    3. If other equipment is placed at the outlet of the screw feeder, it is easy to cause the delivery volume of the upper equipment of the equipment to be less than the feeding volume of the screw feeder, resulting in material blocking.
