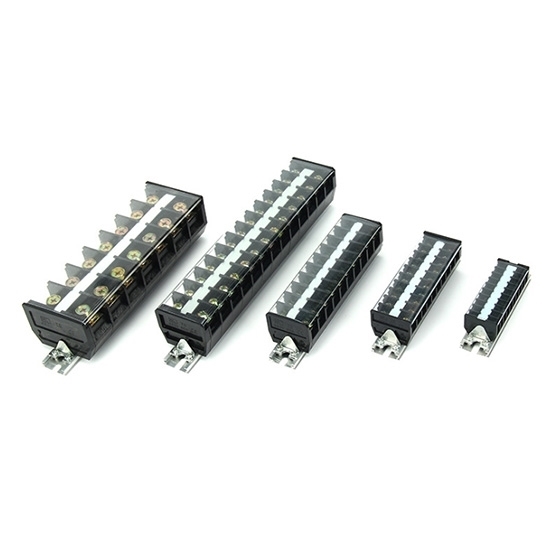

    Barrier Terminal Block, 10A/20A/30A/60A/100A/150A/200A

    5 out of 5 based on 1 reviews | Write a review
    Low price barrier terminal block online for sale, with rated voltage 660V, 10 Pole, current 10A/20A/30A/60A/100A/150A/200A are optional. Barrier terminal block can be applied to connection for various electric equipment.
    This product has a minimum quantity of 100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Barrier terminal block with light weight, rated power 200W, conductive cross section 1.5 mm² ~ 35mm². applicable sectional area of conductor is 10~ 80 mm. The current 10A/20A/30A/60A/100A/150A/200A are optional. It is widely used for home appliances, electronic circuits, machines, etc.


    Model Rated Current(A) Pole Number Outline Size (L*W*H) Conductive Cross Section (mm²) Rated Voltage Weight Rated Power Certificate
    TD-1510 10 10 108*30.1*30mm 1.5² 660V 15pcs/1kg 200W CE
    TD-2010 20 10 150*40*38mm 2.5²
    TD-3010 30 10 173*43*45.5mm
    TD-6010 60 10 216*52.5*52.5mm 10²
    TD-10010 100 10 247*60*51.5mm 125²
    TD-15010 150 10 315*68*58mm 35²
    TD-20010 200 10 315*68*58mm 35²

    Tips: The Features of Barrier Terminal Block.

    The barrier terminal block is used to facilitate the connection of the wire. It is actually a piece of metal enclosed in insulating plastic. There are holes at both ends for the wire to be inserted, and there are screws for fastening or loosening. And it is suitable for a large number of wire interconnections. In the power industry, there are special terminal blocks and terminal boxes. A certain crimping area is to ensure reliable contact and to ensure that sufficient current can pass. The existing rail-type terminal block and frame-type screw connection technology is used, and a circuit composed of electronic components is added to realize the transmission coupling of the photoelectric process. The core of automatic control is that the control unit must be reliably isolated from the sensors and actuators to avoid interference, and to ensure that the field signal matches the low voltage required by the electronic control device. It can also be used as peripheral equipment and control signals for process control. It is an interface component between the regulator and the device, and is suitable for different voltage and power ranges.

    Existing reviews of Barrier Terminal Block, 10A/20A/30A/60A/100A/150A/200A
    Perfect barrier terminal block
    Perfect barrier terminal block. Arrived quickly and worked well for my project. It did a good job of joining cables. I'm very happy with this purchase.
    From: Matt | Date: 05/05/2022
    Was this review helpful? Yes No (0/0)
    Load more reviews...
