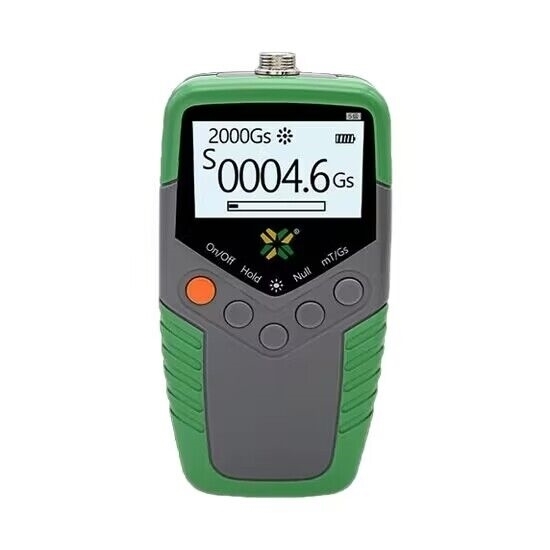

    Class 2 Accuracy Digital Gauss Meter with Probe

    5 out of 5 based on 1 reviews | Write a review
    The class 2 digital gauss meter features advanced digital signal processing technology, an easy-to-read display, and a wide selection of Hall probes. ATO handheld digital gauss meters are designed to provide accurate readings and reliable performance in a wide range of environments from industrial applications to scientific research.
    SKU: ATO-GM-86202
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Low price digital gauss meters for sale, measuring range 0~2400MT/24000GS, magnetic field testers with automatic range switching, one-touch zeroing, and maximum hold function. This digital tesla meter is widely used in scientific research, industrial applications, and academic institutions.


    • Model: ATO-GM-TD86202
    • Accuracy: Class 2, ±2% (full range met)
    • Range: 200MT, 2000MT (automatic range switching)
    • Measuring Range: 0~ 2400MT/24000GS
    • Minimum Resolution: 0.01MT/0.1GS, 4-digit display
    • Display Digit: 4 Digits (decimal)
    • Power Supply: 1 x 9V battery
    • Operating Temperature: 0°C~50°C
    • Storage Stability: -20°C~50°C
    • Dimensions: 160mmx80mmx32mm
    • Unit Weight: 260g (including battery and lead)
    • Hall Probe: Longitudinal Hall probe, lead approx. 1m long


    • ATO class 2 gauss meter is equipped with a digital display to show the magnetic field strength visually.
    • The field strength meter adopts a new generation of chips and processors, high resolution A/D chips, high sensitivity, stable counts, low power consumption, and lightweight.
    • The handheld digital gauss meter has a power indicator in the upper right corner of the screen, and the power icon disappears when the battery runs out.
    • Magnetic field testers have automatic range switching, one-touch zeroing, and maximum value-holding functions.
    • Digital gauss meter comes with 1 x 9V battery for high battery life and long standby time.

    Probe Dimension (Unit: mm)

    Radial Probe

    Radial probe dimension

    L1 (Customisable) L2 L3 L4 H1 H2 H3 H4 (with tube sleeve) Sensing Area(φ)
    900 115±5 50±1 2.2±0.1 16±0.5 1.4±0.1 1.05±0.05 4.4±0.1 0.3
    Suitable for TM5100. TW5120B, TM6100. TM6100B, TD8620, TD8650, TD8655.
    Note: Y indicates accuracy class

    Axial Hall Probe

    Axial hall probe dimension

    L1(Customisable) L2 L3 L4 H1 H2 Sensing Area(φ)
    2200 115±5 58±5 0.1±0.05 14±0.5 4.2±0.2 0.3
    Suitable for TM5100. TW5120B, TM6100. TM6100B, TD8620, TD8650, TD8655.
    Note: Y indicates accuracy class



    Digital gauss meter detail


    Gauss meters are used to measure the strength and direction of magnetic fields in various industries such as manufacturing, aerospace, medical, and automotive. They are used to detect magnetic fields generated by electrical equipment, such as transformers and motors, and in the testing and calibration of magnetic sensors. Gauss meters are also used in research and development of new materials, such as magnetic nanoparticles, and in the design and testing of magnetic shielding materials.

    Digital gauss meter applications

    Tips: What is a gauss meter?

    A gauss meter is a device that measures the strength and direction of a magnetic field. It is named after Carl Friedrich Gauss, a German mathematician and physicist who made significant contributions to the study of electromagnetism.

    A gauss meter typically consists of a sensor that detects magnetic fields and a display that shows the measurement in units of gauss or tesla. It may also have other features such as data logging, alarm functions, and the ability to measure different types of magnetic fields, such as AC and DC  fields.

    Gauss meters are commonly used in a variety of applications, including magnetic material testing, quality control in manufacturing, and research in physics and engineering. They are also used by hobbyists and enthusiasts for measuring magnetic fields of objects such as magnets, motors, and  electronic devices.
