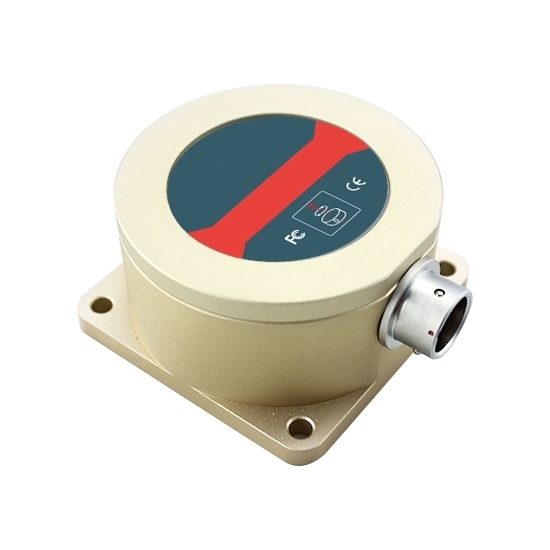

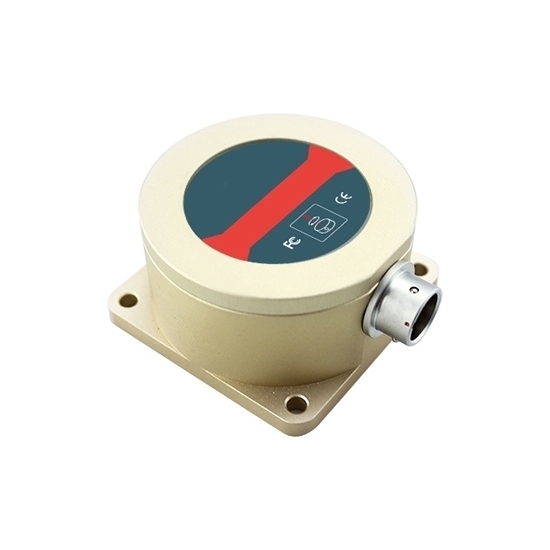

Current (Voltage) Output Gyroscope Sensor, ±50°/ ±150°/ ±300°

5 out of 5 based on 1 reviews | Write a review

$559.68

Cost-effective gyroscope sensor with current/ voltage output for selection, measuring range ±50°/ ±150°/ ±300° can be chosen, measuring axis X/ Y/ Z are optional, temperature drift <±1°/ s, consumption current 6mA. The gyro sensor is widely used in position control and attitude control of cars and moving objects, and other occasions requiring precise angle measurement.

SKU: ATO-GS-TL610D

Measuring Range *
Measuring Axis *
Output Signal *
Measuring Direction *

Qty:

Free Shipping Worldwide

Delivery date: 6-12 days

Overview

Lower cost gyro sensor featuring resolution 0.1°/ s, bandwidth> 2000Hz, short starting time 5 ms. The angular rate sensor has advantages of high performance, waterproof, light wight and long service life.

Specification

Model	ATO-TL610D-050	ATO-TL610D-150	ATO-TL610D-300	ATO-TL618D-050	ATO-TL618D-150	ATO-TL618D-300
Output signal	Voltage output (0-5V)			Current output (4-20A)
Measuring range	±50°	±150°	±300°	±50°	±150°	±300°
Ratio factor	50mV °/S	16.66 mV °/S	8.333 mV °/S	-	-	-
Measuring axis	X, Y, Z (optional)
Bandwidth	>2000Hz
Resolution	0.1°/ s
Temperature drift	<±1°/ s
Nonlinear	0.1% of FS
Zero degree bias voltage	2.5V (±0.01V)
Starting time	<5s
Input voltage	9-36V
Output voltage	0-5V
Consumption current	6mA
Working temperature	-40℃-85℃
Storage temperature	-55℃-100℃
Capacitive load	1000 Pf
Shock	5g-10g
Impact	200g pk, 2ms, 1/2 sine
Connector	5 pins aviation socket, standard 1m cable
Working life	10 years
Output rate	5Hz/ 15Hz/ 25Hz/ 50Hz/ 100Hz can be set
MTBF	≥50000 hours/ times
Iusulation resistance	≥100M
Anti-vibration	10grms, 10-1000Hz
Protection grade	IP67
Certificate	CE, FCC, RoHS
Warranty	12 months

Dimension (unit=mm)

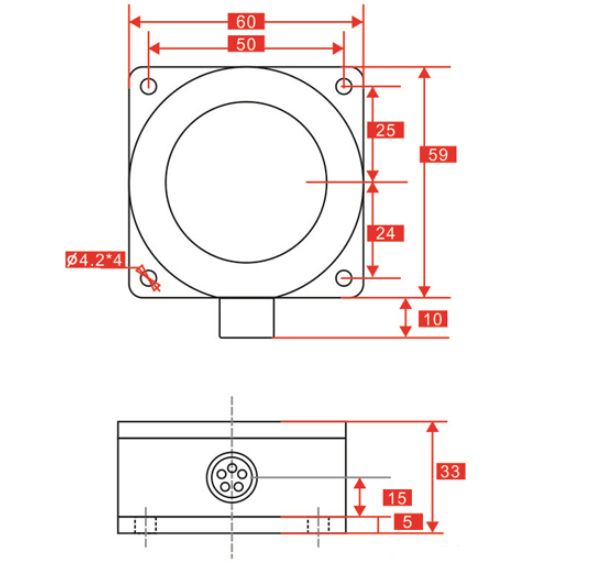

Voltage Output

Dimension of gyroscope sensor

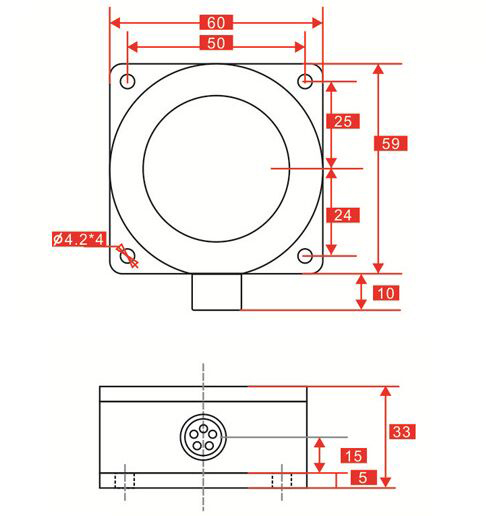

Current Output

Dimension of gyroscope sensor

Tips: Feature of Gyroscope Sensor.

The most important characteristic of a gyroscope sensor is its stability and precession.
We can find from children’s ground tops that the high-speed spinning tops can stay vertical without falling over and remain vertical to the ground, which reflects the stability of the tops when they move. The theory of studying the motion characteristics of a gyroscope is a branch of the dynamics of a rigid body moving around a fixed point. It studies the dynamic characteristics of a rotating object based on the inertia of the object. It can be said that the gyroscope sensor is a simple and easy-to-use positioning and control system based on free space movement and gestures.
