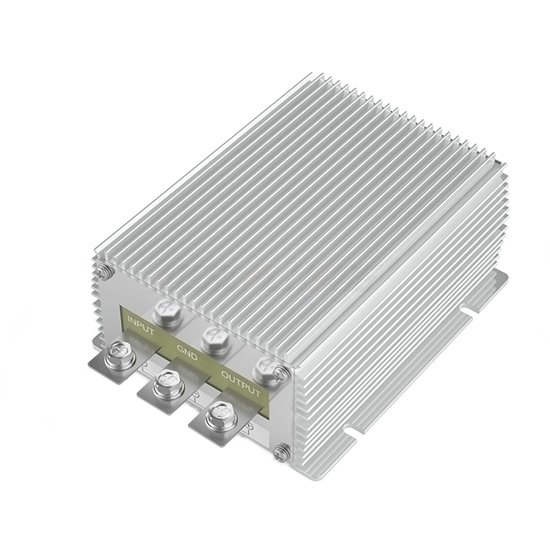

    DC-DC Boost Converter, 12V to 36V

    5 out of 5 based on 1 reviews | Write a review
    $75.26
    This series of 12V DC to 36V DC boost converters have wide input range of 10V to 25V, output power from 36W to 1080W, different models are optional. Low price DC-DC step up power modules, are provided with overload protection, overvoltage protection.
    *
    SKU: ATO-DCDC-1236
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Best DC-DC converter for sales. It adopts synchronous rectification technology, which is designed to step up 12V DC to 36V DC, with high efficiency 93%~96%, optimized for low-power applications.

    Features

    • Wide input voltage range: 10V to 25V.
    • Brand-new, die-cast aluminum shell and high quality design, maximum transfer efficiency of 96%.
    • This step up module comes with waterproof lever of IP68, moisture-proof & anti-shock protection.
    • Auto-recovery when device is back to normal operating.
    • Built-in full protection against over/under voltage input, over-current, overload, overhead, over-temperature and short circuit.
    • Industry grade DC 12V to 36V boost converter, widely used in automotive, electricity, surveillance systems, railway signals, instruments, solar generate electricity, display screen of bus and taxi, car audio device, security systems, hospital equipment, telecommunications etc.

    15A DC-DC Boost Converter Specification

    Model ATOWG-12S3615
    Input Rated voltage 12V
    Voltage range 10-25V
    Efficiency 96% @ 12V input
    Output Voltage 36V
    Max. rated current 15A
    Max. rated power 540W
    Voltage regulation ±1%
    Load regulation 2%
    No load loss 70mA
    Ripple & noise 200mV
    Environment Working temperature -40 ~ +80℃
    Working humidity 10% ~ 90%RH
    Storage temperature -40 ~ +100℃
    Function Short circuit protection NO
    Over current protection YES
    Waterproof IP68
    Over temperature protection YES
    Over voltage protection YES
    Mechanical Weight 1500g
    Size 150*127*63mm


    12V to 36V DC-DC Boost Converter Model Selection

    Code Model Price Input Voltage Output Voltage Output Current Output Power Efficiency Size Download
    1 ATOWG-12S3601 $75.26 12V DC 36V DC 1 Amps 36 Watts 94% 57*64*22mm PDF
    2 ATOWG-12S3602 $98.41 12V DC 36V DC 2 Amps 72 Watts 94% 57*64*22mm PDF
    3 ATOWG-12S3605 $121.48 12V DC 36V DC 5 Amps 180 Watts 94% 74*74*32mm PDF
    4 ATOWG-12S3606 $134.58 12V DC 36V DC 6 Amps 216 Watts 94% 74*74*32mm PDF
    5 ATOWG-12S3610 $157.22 12V DC 36V DC 10 Amps 360 Watts 94% 100*80*39mm PDF
    6 ATOWG-12S3615 $203.56 12V DC 36V DC 15 Amps 540 Watts 96% 150*127*63mm PDF
    7 ATOWG-12S3620 $284.14 12V DC 36V DC 20 Amps 720 Watts 96% 150*127*63mm PDF
    8 ATOWG-12S3630 $353.42 12V DC 36V DC 30 Amps 1080 Watts 93% 220*127*63mm PDF

    Note: The series of 12Vto 36V DC-DC boost converter models are all here, check the parameter carefully from the table and select the right converter power supply when place the order.

    Tips: How to reduce electromagnetic interference (EMI) in DC-DC step up converter?

    To reduce electromagnetic interference (EMI) in the DC-DC step up module, you can start from the following aspects:

    1. Shielding and grounding: Use a metal shield to wrap the converter and ensure good grounding to reduce electromagnetic radiation.
    2. Layout and wiring: Optimize PCB layout, shorten the area of high-frequency switching loops, avoid current loops, and reduce electromagnetic radiation sources.
    3. Filter: Add LC filters at the input and output ends to suppress high-frequency noise.
    4. Switching frequency selection: Choose an appropriate switching frequency to avoid overlapping with the operating frequency of sensitive circuits or equipment.
    5. Soft switching technology: Use soft switching technology (such as zero-voltage switching or zero-current switching) to reduce switching losses and EMI.
    6. Damping network: Add a damping network at both ends of the inductor and capacitor to reduce the ringing effect.
    Existing reviews of DC-DC Boost Converter, 12V to 36V
    DC-DC boost converter connection
    Can I connect two of your 12v to 36v DC boosters together to get a minimum of 40 amps? You list a 20 amp 12v to 36v booster. Can I connect the two of them together to get 40 amps?
    From: Sanmantha | Date: 02/08/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    You can not connect 2 DC-DC boost converter in parallel, and we provide DC-DC boost converter, 12V to 36V for up to 30A.
