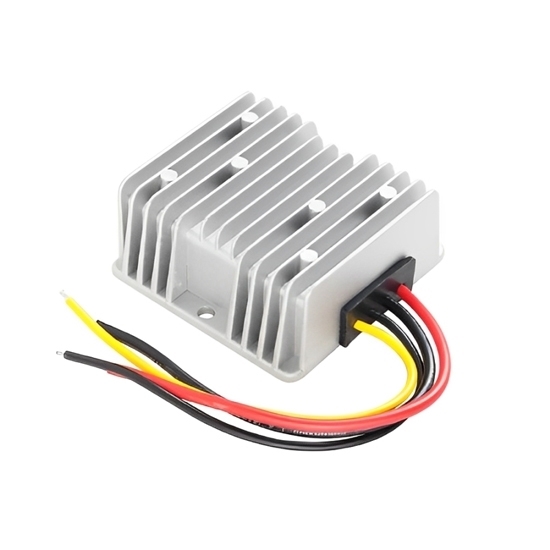

DC-DC Boost-Buck Converter, 9V-40V to 24V

5 out of 5 based on 2 reviews | Write a review
$66.15
DC-DC boost-buck converter is light weight and compact, with wide input voltage range of 9V to 40V, high conversion efficiency up to 98%, step up or step down the input voltage 12V/24V to output voltage 24V.
*
SKU: ATO-DCDC-93624
30-day Returns
Free Shipping
Delivery date: 6-12 days

9V-40V to 24V DC to DC converter with high conversion efficiency up to 98%, is designed to step up or step down input voltage 12V/24V/36V to output 24V, compact design for wide applications.

Features

  • Wide input voltage range: 9V to 40V.
  • Brand-new, die-cast aluminum shell and high quality design, maximum transfer efficiency of 96%.
  • This non-isolated power module comes with waterproof lever of IP68, moisture-proof & anti-shock protection.
  • Auto-recovery when device is back to normal operating.
  • Built-in full protection against over/under voltage input, over-current, overload, over-temperature and short circuit.
  • Industry grade DC 12V/24V to 24V boost converter, widely used in automotive, electricity, surveillance systems, railway signals, instruments, solar generate electricity, display screen of bus and taxi, car audio device, security systems, hospital equipment, telecommunications etc.

Specifications

Model ATOWG9-40S2406 ATOWG9-40S2410 ATOWG9-40S2415
Absolute Maximum Ratings
Operating Ambient Temperature -40~50℃
Shell Ambient Temperature -40~80℃
Storage Temperature -55~100℃
Operating Humidity 5~95% (Non-condensing)
Atmospheric Pressure 62-106Kpa
Altitude 4000m
Cooling Way Natural Cooling
Input Characteristics
Input Voltage 9-40V (Typ. 12/24) 9-40V (Typ. 12/24/36V)
Max. Input Voltage 40V (Continuous) 45V (Continuous)
Undervoltage Shutdown 7.8-8.2V (Automatic Recovery) 8.5-9.0V (Automatic Recovery)
Undervoltage Recovery 8.5-8.7V (Automatic Recovery) 8.8-9.3V (Automatic Recovery) 8.8-9.2V (Automatic Recovery)
Max. Input Current 22A (Vin=8.1V; Iout=6A) 28.5A (Vin=9V; Iout =10A) 42.3A (Vin=9V; Iout =15A)
No Load Current 58mA (Vin=12V) 80mA (Vin=24V) 150mA (Vin=24V)
Positive Electrode Cable 14 AWG (If the wire length is greater than 50cm, it is recommended to use a thicker wire diameter.) 12 AWG (If the wire length is greater than 50cm, it is recommended to use a thicker wire diameter.) 10 AWG (If the wire length is greater than 50cm, it is recommended to use a thicker wire diameter.)
Negative Electrode Cable
Enable Pin Cable 22 AWG (If the product has this feature) N/A
Fuse 30A (Input positive has built-in fuse) 40A (Input positive has built-in fuse 60A (Input positive has built-in fuse)
Output Characteristics
Efficiency 92.7% (Vin=12V; Iout=6A) 97.8% (Vin=24V; Iout=10A) 98.2% (Vin=24V; Iout=15A)
Output Voltage 23.9-24.3V (Vin=12V; Iout=6A) 23.7-24.4V (Vin=24V; Iout=10A) 23.8-24.4V (Vin=24V; Iout =15A)
Regulator Accuracy ±1% ±5%
Voltage Regulation ±3%
Load Regulation ±3%
Overvoltage Protection N/A 45.5-47.0V
Output Current 0-6A 0-10A 0-15A
Overcurrent Protection 9.7-10.2A (Vin=12V) 11-14A (Vin=24V) 16-18A (Vin=24V)
External Capacitance 0-4000μF μF (Don' t Need)
Output Ripple and Noise 230mVp-p (Vin=9-40V; Iout=6A, Oscilloscope Bandwidth: 20 MHz) 220mVp-p (Vin=9-40V; Iout=10A, Oscilloscope Bandwidth: 20 MHz) 290mVp-p (Vin=9-40V; Iout=15A, Oscilloscope Bandwidth: 20 MHz)
Output Voltage Rise Time 8.3mS 30mS 450mS
Boot Delay Time 20mS 35mS 450mS
Out Voltage Overshoot 2% (Vin=12V, 50%-75% Load Step) 5% (Vin=24V, 50%-75% Load Step)
Over Temperature Protection N/A 85℃ (Shell)
Short Circuit Protection N/A Yes (Long-term (4h) Short Circuit is Not Damaged, Hiccup Mode)
Positive Electrode Cable 16 AWG (If the wire length is greater than 50cm, it is
recommended to use a thicker wire diameter.)
12 AWG (If the wire length is greater than 50cm, it is
recommended to use a thicker wire diameter.)
Negative Electrode Cable
Safety and EMC Features
Anti-electric Strength
Input to Output N/A
Input to Shell ≥500V (Leakage Current ≤ 3.5mA, 1min,
No Breakdown, No Arcing)
Output to Shell
Insulation Resistance
Input to Output ≥50MΩ (Test Voltage =500V)
Input to Shell
Output to Shell
Other Characteristics
Weight About 290g About 550g
Package White Box
MTBF ≥200000H
Switching Frequency 80±10kHz 150±10kHz


DC-DC Converter Model Selection

Code Model Price Input Voltage Range
Output Voltage Output Current Output Power Efficiency Size Download
1 ATOWG9-40S2406 $66.15 9-40V DC 24V DC 6 Amps 144 Watts 92.7% 74*74*32mm ATO PDF
2 ATOWG9-40S2410 $81.53 9-40V DC 24V DC 10 Amps 240 Watts 97.8% 74*74*32mm ATO PDF
3 ATOWG9-40S2415 $93.84 9-40V DC 24V DC 15 Amps 360 Watts 98.2% 100*80*39mm ATO PDF

Note: The DC-DC boost converter models are all here, check the parameter carefully from the table and select the right converter power supply when place the order.

Tips: DC-DC boost-buck converter applications

DC-DC converters are commonly used in mobile devices such as mobile phones and notebook computers that are mainly powered by batteries. There are often many sub-circuits in this type of electronic equipment, and the required power supply voltage is also different from the power provided by a battery or an external power supply. And when the battery's power decreases, its voltage also drops. The switching-type DC-DC converter can be used with a battery whose voltage has dropped, so that the voltage of the supply circuit can be maintained within a certain range, so there is no need to use multiple batteries to achieve this purpose.

Most DC-DC converters also regulate the output voltage, but there are some exceptions. For example, high-efficiency LED drive circuits are DC-DC converters that regulate the LED current, and there are simple charge pumps. Is to increase the output voltage to double or triple the original.

DC-DC converters can also be used in conjunction with photovoltaic arrays or wind engines. The purpose is to collect the most energy. This type of equipment is called a power optimizer.

Generally used in commercial power supply 50-60Hz transformer, if the power exceeds a few watts, its volume will be very large, and very heavy, and the copper loss of the winding and the eddy current of the iron core will cause energy loss. DC-DC converters will design circuits so that transformers or inductors can work at higher frequencies, so the components are smaller, lighter, and cheaper. Even this kind of components will be used in some occasions where traditional mains frequency transformers were originally used. For example, household electrical equipment often first rectifies the commercial power supply into direct current, uses the technology of a switching power supply to convert it into a high-frequency alternating current of the required voltage, and finally rectifies it to a direct current of the corresponding voltage. The whole circuit is more complicated than traditional systems with transformers and rectifiers, but it is cheaper and more efficient.
