    Digital Force Gauge 2 kN/ 3 kN/ 4 kN to 2000 kN

    5 out of 5 based on 2 reviews | Write a review
    Digital force gauge with high accuracy measurement, capacity from 2 kN/ 3 kN/ 4 kN to 2000 kN. Force gauge meter with external sensor equipped with 6-digit large screen display and acceleration of gravity can be set by itself. Charging voltage 100V-240V. Optional SI unit: N (newton), kg (kilogram), lb (pound) available for mutual conversion and data storage can store 447 test values. Automatic shutdown time can be set by yourself. Small, simple, multi-functional, widely used in electronic appliances, architectural hardware, power machinery and so on.
    SKU: ATO-HA-2000
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Digital force gauge capacity from 2 kN/ 3 kN/ 4 kN to 2000 kN, equipped with 6-digit large screen display and common SI unit: N (newton), kg (kilogram), lb (pound) can be selected and available for mutual conversion. Force gauge meter with data storage can reach 447 test values. Power supply voltage 100V-240V.


    Model ATO-HA- 2000 ATO-HA- 3000 ATO-HA- 5000





    ATO-HA- 100K ATO-HA- 200K ATO-HA- 300K ATO-HA- 500K ATO-HA- 1000K ATO-HA- 2000K
    Capacity 2 kN 3 kN 5 kN 10 kN 20 kN 30 kN 50 kN 100 kN 200 kN 300 kN 500 kN 1000 kN 2000 kN
    200 kg 300 kg 500 kg 1000 kg 2000 kg 3000 kg 5000 kg 10 ton 20 ton 30 ton 50 ton 100 ton 200 ton
    450 lb 650 lb 1100 lb 2.2 klb 4.5 klb 6.5 klb 11 klb 22 klb 45 klb 65 klb 110 klb 220 klb 450 klb
    Load division value 1 N 0.001 kN 0.01 kN 0.1 kN 1 kN
    0.1 kg 0.1 kg 1 kg 10 kg 100 kg
    0.1 lb 0.0001 klb 0.001 klb 0.01 klb 0.1 klb
    Sensor structure load cell External type
    Power supply 7.2V 1.2Vx6 Ni-MH battery pack
    Output interface RS232 nine-hole socket
    Charging time 4 ~ 6 hours
    Battery continuous use time about 15 hours
    Charger Input AC 100~ 240V
    Output DC 12V 500mA
    Working temperature 5°C ~ 35°C
    Transport temperature -10°C~60°C
    Relative humidity 15%~80%RH
    Working environment No source of vibration and corrosive medium around
    Battery Life ≥ 300 times
    Precision ±1%

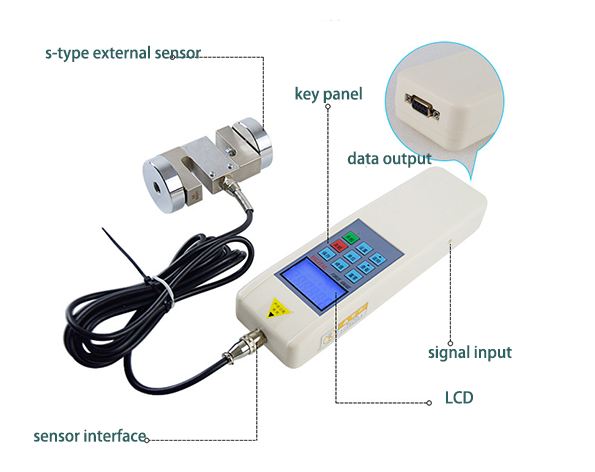

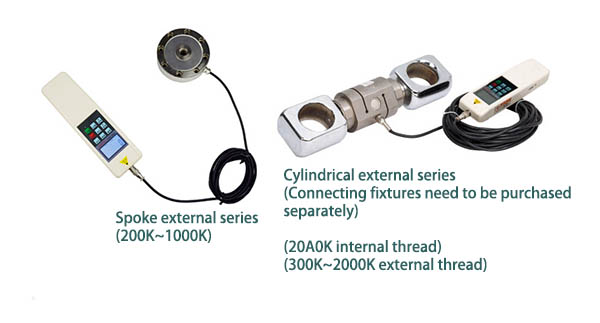

    digital external force gauge seriesDigital external force gauge structure

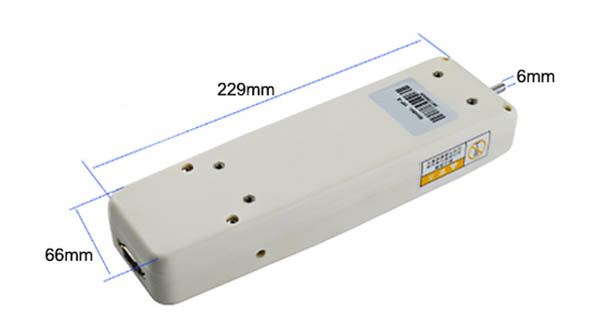

     digital force gauge size



    1. Digital force gauge equipped with external sensor and 6 bit big screen high precision high resolution with five test modes, three display modes for selection.
    2. Optional unit: N (newton), kg (kilogram), lb (pound) three units of measurement are available for mutual conversion.
    3. Force gauge meter gravitational acceleration setting function: the user can input the exact value of the gravitational acceleration of the place of use, making the test and unit conversion more accurate
    4. Automatic peak value time can be set freely from 1-9999 seconds. The upper and lower limits can be set for statistical analysis, and the buzzer will alarm by setting the limit range.
    5. Digital force meter with data storage function, can store 447 test values. The data can be input into the computer through the data line for various analysis (also applicable to multiple instruments and one computer for various analysis at the same time).
    6. Green and environmental protection, automatic shutdown after 10 minutes of no operation, 10 minutes is the default, you can set the automatic shutdown to the required time. When the automatic shutdown time is 0, it will not automatically shut down. High-quality charging power supply with voltage 100V~240V and overload protection function.
    7. The digital push pull gauge unique switch contact on-off force test function makes the switch on-off force test more accurate.
    8. Low battery detection shutdown, when the battery power is low, it will automatically shut down to prevent inaccurate measurement caused by insufficient power.

    Tips: Where does digital force gauge apply?

    1. Digital force gauge can be used to test: tension, compression, peeling force, tearing force, adhesive force, bending force, breaking force, welding force, puncture force, opening force, etc.
    2. Digital push pull gauge can divided into two types: built-in sensor and external sensor. The built-in sensor has a measuring range of 150kg. The external sensor can be matched with load cells of different sizes (including one-way and double-sound force) according to actual needs.
    3. For example, with analog signal or switch signal, 232 or 485 interface, which can be customized according to user needs.
    4. It has a multi-purpose function. And it can be combined with various testing machines and fixtures to form high-precision small force measuring machines for different purposes.
