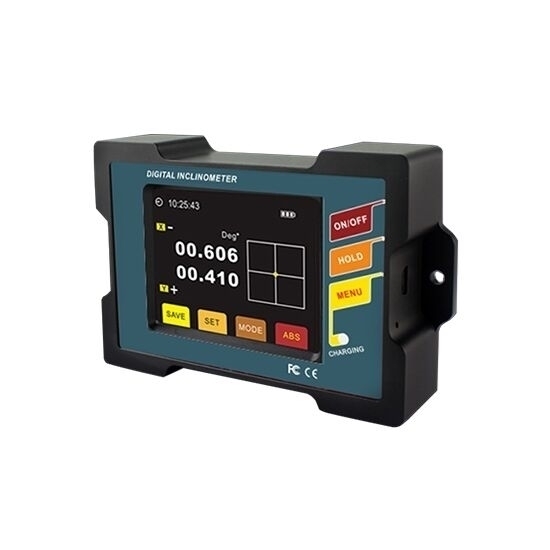

High Precision Digital Inclinometer, Dual Axis, Output RS485/ RS232

5 out of 5 based on 1 reviews | Write a review

$912.70

Low-priced digital inclinometers for sale. The dual axis magnetic inclinometer digital with selectable ±15°/±30° measuring ranges, max absolute accuracy <0.005° , 0.001° angle resolution, and 0.05°/rms absolute accuracy. It offers a 64-color luminous LCD and supports absolute/relative measurement switching.

Measuring Range *
Output Signal *

SKU: ATO-DMI-825

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Our electronic magneti inclinometer is a high accuracy measuring tool designed for precise angle detection in various industrial and professional scenarios. It combines advanced sensing technology with user-friendly features, ensuring reliable and accurate measurements while offering excellent portability and durability. Whether used in mechanical installation, construction alignment, or equipment calibration, this 2 axis inclinometer meets the strict demands of high-precision measurement tasks.

Specification

Model	DMI825-15	DMI825-30
Angle Measuring Range	±15°	±30°
Mm Measuring Range	267mm	577mm
Millimeter Measuring Accuracy	0.1 mm (RMS)	0.2 mm (RMS)
The Highest Measuring Accuracy	＜0.005 (Full measuring range)	＜0.001 (Full measuring range)
Measuring Axis	Dual axis
Angle Measuringt Solution	0.001°
Three Measuring Mode Selectable	Radian, Angle, mm/meter can be set
Absolute Accuracy	0.05°/rms
Millimeter Measuring LCD	0.02 mm
LCD	64-color true color luminous display
LCD Visible Area Size	L57.6mm*W43.2mm
Working Temperature	-10℃-70℃
Working Humidity	85% RH
Power Supply	3.7V Charging Lithium Battery
Ideal Charging Time	5h
Battery Sustainable Charging Times	11h
Output Signal	RS485/RS232
Equipped with PC Software	VC Software
Connect Plug in	Standard 5 Pin USB Connector
Shock Resistance	10g @11ms, three-axis (Half sine wave)
Shock Impact	10g rms, 10-100Hz
Weight	300g
Waterproof Grade	IP54
Material	Aluminum Anodizing
Size	L117mmW75mmH27.1mm
Certificate	CE, FCC, ROHS
Warranty	12 months

Features

Exceptional Accuracy: Boasts a maximum absolute accuracy of less than 0.005° and a repeatability of 0.003°, ensuring ultra-precise angle readings for critical applications.
Flexible Measuring Range: Digital slope meter offers selectable maximum measuring angles of ±15° and ±30°, adapting to different measurement requirements in diverse working environments.
High-Resolution Display: Equipped with a 64-color true color luminous LCD screen (visible area size: L57.6mm*W43.2mm) that provides clear, vivid readings even in low-light conditions, thanks to its night vision four-color screen function.
Versatile Measurement Modes: Supports switching between absolute and relative measurement, as well as three selectable units, enhancing usability for various measurement scenarios.
Convenient Installation & Use: Features double benchmark strong magnet installation for easy and stable attachment to metal surfaces; both sides and bottom of the device can be used for measurement, increasing operational flexibility.
Intelligent Compensation Functions: Built-in auto-angle interleaved compensation and auto temperature drift compensation, minimizing errors caused by angle changes and temperature fluctuations.
Practical Data & Power Features: Best digital inclinometer includes a data store function to save important measurement data; powered by a 3.7V rechargeable lithium battery with 11 hours of sustainable use after a 5-hour full charge, and supports filter frequency selection for optimized data stability.
Robust & Durable Design: Dual axis mechanical inclinometer constructed with aluminum anodizing material, it has a waterproof grade of IP54, shock resistance of 10g @11ms (three-axis, half sine wave), and shock impact of 10g rms, suitable for harsh industrial environments.

Dimension (unit=mm)

Dimension of digital inclinometer DMI815

Measuring Direction

Measuring direction of digital inclinometer DMI815

Absolute/Relative Measurement Mode

Default absolute measurement mode

Absolute measurement of digital inclinometer DMI815

Click the "ZERO" button to switch to "ABS" relative mode

ABS relative mode of digital inclinometer DMI815

Application

Digital inclinometer application

5 Tips for Using & Maintaining Your Dual Axis Magnetic Digital Inclinometer

Selection of output signal (RS485/RS232) for dual axis digital inclinometer: Consider the communication distance and on-site interference when choosing between RS485 and RS232 output to ensure stable data transmission.
Calibration frequency of digital inclinometer: Regularly calibrate the device according to the frequency of use (recommended every 3-6 months) to maintain its high measurement accuracy.
Battery maintenance for digital inclinometer: Avoid overcharging or deep discharging the lithium battery; store the device with a 50%-70% battery level when not in use for a long time to extend battery life.
Protection of digital inclinometer in harsh environments: Although it has IP54 waterproof grade, avoid long-term immersion in water or exposure to corrosive substances; use a protective case during transportation to prevent shock damage.
Application scenarios for dual axis digital inclinometer: It is especially suitable for tasks requiring multi-directional angle measurement, such as bridge deflection monitoring, ship hull alignment, and precision machine tool installation.

Digital Display Inclinometer, Dual Axis, Output USB1.1

This is a 3D demo of ATO high accuracy digital inclinometer. Featuring dual axis design and USB1.1 output, it provides optional measuring ranges ±15°/ ±30° with absolute accracy 0.05°/ rms. The inclinometer is powered by a 3.7V rechargeable lithium battery with filter frequency versions optional.

Existing reviews of High Precision Digital Inclinometer, Dual Axis, Output RS485/ RS232

100% accurate quality made , excellent I am very happy.

I am very impressed with the quality of this digital inclinometer. I have purchased a few different types not one if them had the 4 types of measurements none of them have been 100% accurate ,this one is the one you want, if you are a stickler for detail and accuracy, this one is for you.

From: Mar | Date: 30/06/2022

Was this review helpful? Yes No (0/0)

Load more reviews...
