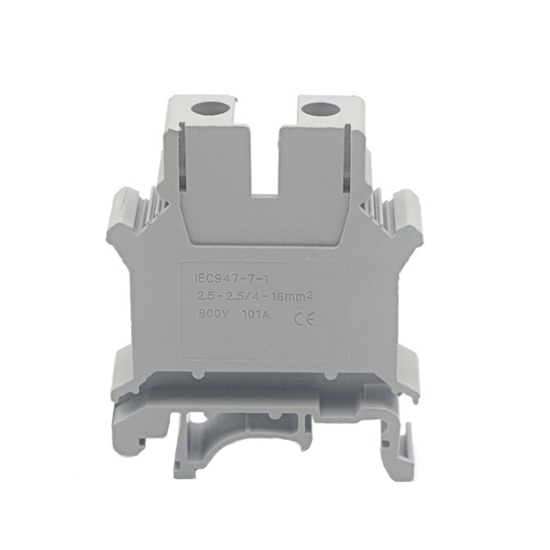

    DIN Rail Terminal Block, 101A, 800V

    5 out of 5 based on 2 reviews | Write a review
    High current rail terminal connector block light weight, small size and cheap price, 800V, 101Amp, 1.5-1.8 Nm torsion torque, flexible conductor 4-16 mm, widely used in electric power industry.
    SKU: ATO-TB-UK-16N
    This product has a minimum quantity of 100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Rail terminal block is one of important devices for electrical engineering and used to connect. Rail terminal block with rated current 101 Amp, free shipping and good value for money.


    Model ATO-TB-UK-16N
    Dimension 42.5mm*12.2mm*52.5mm (W*T*H)
    Screw Nominal Diameter M4 mm
    Torsion Torque 1.5~1.8 Nm
    Stripping Length 11 mm
    Rated Voltage 800V
    Rated Current 101A
    Section Area of Conductor 16 mm2
    Rigid Conductor 2.5-25 mm2
    Flxible Conductor 4-16 mm2
    Applicable Rail Mounting Feet G32-15L18/15, TH35-7.5
    Certificate CE, UL, Rohs
    Weight 100 Pcs/1kg

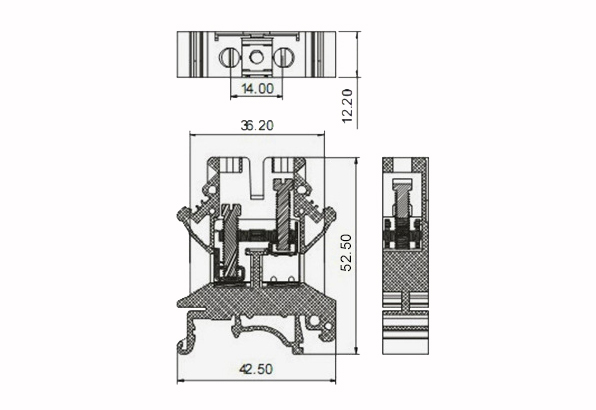

    Dimension (Unit=mm)  Dimension of UK 16N

    Tips: How to Prevent Failure of Teminal Block?

    The plastic insulation materials and conductive parts of terminals are directly related to the quality of terminals, which determine the insulation and conductive properties of terminals respectively. Any terminal failure will lead to the failure of the whole system engineering. Prevention is the purpose and analysis is the basis.

    1. Prevention of poor contact.
    1) Conduction detection.
    2) Instantaneous break detection.
    Some terminals are used in dynamic vibration environment. The experiment proves that the static contact resistance can't guarantee the contact reliability in dynamic environment. Because, often contact resistance qualified connector in vibration, shock and other simulated environmental tests still appear instantaneous power failure phenomenon.
    2. Prevent poor insulation.
    1) Inspection of insulating materials.
    The quality of raw materials has a great influence on the insulation performance of insulators. Therefore, the choice of raw material manufacturers is particularly important. We should not blindly reduce the cost and lose the quality of materials. We should choose the materials of large factories with good reputation.
    2) Inspection of insulation resistance of insulator.
    3. Prevention of poor fixation
    1) Interchangeability check.
    Interchangeability check is a dynamic check. It requires that the same series of matching plugs and sockets can be connected with each other, from which we can find out whether it is impossible to insert, locate and lock, or even disintegrate under the action of rotating force due to the size of insulators, contacts and other parts being out of tolerance, missing parts or not being assembled in place.
    2) Torque test.
    3) General measurement of crimping wire.
