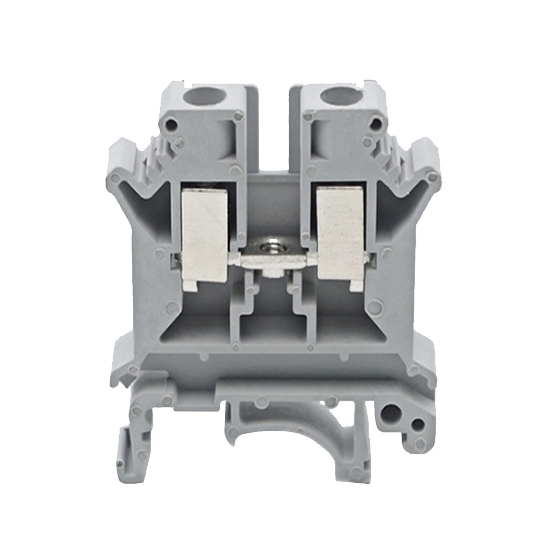

    57A DIN Rail Terminal Connector Block, M4 mm

    5 out of 5 based on 1 reviews | Write a review
    Competitive price rail terminal block connector, with rated voltage 800V, current 57A, stripping length 10 mm, applies widely to the electric power industry.
    This product has a minimum quantity of 100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High current rail terminal block with rated voltage 800V, conductor section area 6mm2, light weight, small size and low price, ATO offers many types of teminal blocks to choose.


    Model ATO-TB-UK-6N
    Dimension 42.5mm*8.2mm*46mm (W*T*H)
    Screw Nominal Diameter M4 mm
    Torsion Torque 1.5~1.8 Nm
    Stripping Length 10 mm
    Rated Voltage 800V
    Rated Current 57A
    Section Area of Conductor 6 mm2
    Rigid Conductor 0.2-10 mm2
    Flxible Conductor 0.2-6 mm2
    Applicable Rail Mounting Feet G32-15L18/15, TH35-7.5
    Certificate CE, UL, Rohs
    Weight 100 Pcs/1kg

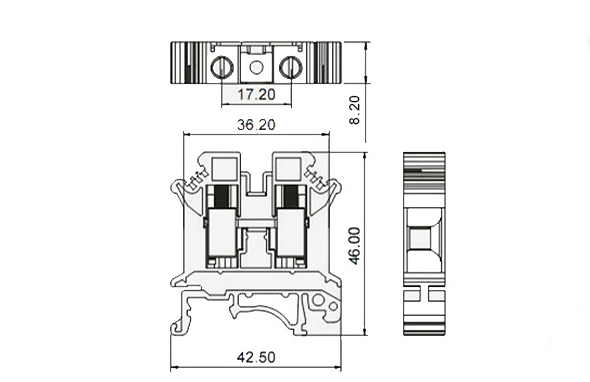

    Dimension (Unit=mm)

    Dimension of UK 6N

    Tips: Wiring Precautions for Terminal Blocks.
    1. The tightening wiring force should be moderate to prevent the bolts and nuts from being slipped with too much force. If the bolts and nuts are found to be slipped, they should be replaced in time. It is strictly forbidden to work.
    2. When tightening or loosening the screws with a screwdriver, you must force the screwdriver to tighten the screws, and then tighten or loosen the screws to prevent the screwdriver and the screws from slipping, causing damage to the screws that are not easy to disassemble, especially the common air-opening in the hanging box.
    3. If you find bolts and nuts that are difficult to disassemble, don't act recklessly to prevent deformation and make disassembly more difficult. You should tap them properly, or add screw loosener, dilute hydrochloric acid, etc. to disassemble later.
    4. Do not use pliers to tighten or loosen bolts and nuts to prevent damage. Adjust the opening when using a live-end wrench to prevent the bolts and nuts from being damaged or deformed and difficult to disassemble.
    5. The same terminal allows up to two wires of the same type and specification to be connected.
    6. It is strictly forbidden to install non-copper gaskets or non-conductive gaskets in the middle of wire connectors or wire lugs.
    7. When the wire connector is connected, the contact surface is required to be smooth and free of oxidation. When the wiring nose or copper bar is connected, the conductive paste can be applied after the contact surface is cleaned, and then tightened.
