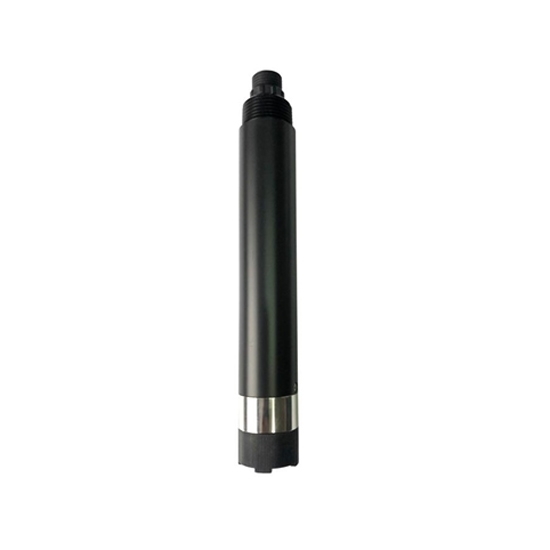

Dissolved Oxygen Sensor for Water Quality, 0~20mg/L

$301.59
Fluorescence dissolved oxygen sensor for water quality uses the fluorescence method to measure dissolved oxygen in a range of 020 mg/L. The water quality sensor has automatic temperature compensation with a built-in Pt1000 sensor. The sensor outputs data via RS-485 with Modbus/RTU protocol. With low power consumption, two-point calibration, and easy maintenance, ideal for applications such as aquaculture, industrial water treatment, environmental monitoring, and research on natural water bodies.
SKU: ATO-WQS-DOS
30-day Returns
Free Shipping
Delivery date: 6-12 days

The fluorescence dissolved oxygen sensor measures 0-20 mg/L with automatic temperature compensation, RS-485 output, and low power use. Ideal for aquaculture, water treatment, and environmental monitoring.

Specification

Model ATO-RDO-106
Measurement Principle Luminescence Method
Measurement Range 0~20 mg/L (0~200% Saturation, at 25°C)
Resolution 0.01 mg/L, 0.1°C
Product Accuracy ±2%, ±0.3°C
Temperature Compensation Automatic (Pt1000)
Output Signal RS485 (Modbus/RTU)
Operating Conditions 0~50°C, <0.2MPa
Storage Temperature -5~65°C
Installation Method Immersion Installation
Cable Length 5 meters (customizable)
Power Consumption 0.2W @12V
Power Supply 12~24VDC
Protection Rating IP68
Calibration Method Two-Point Calibration
Sensor Lifespan 1 year (under normal conditions)
Housing Material POM, ABS, and 316L Stainless Steel


Feature

  • No Electrolyte Required: Operates without the need for electrolyte or cathodes, ensuring stable and corrosion-free performance.
  • No Oxygen Consumption: Unaffected by water flow rate, making it suitable for stagnant or dynamic water environments.
  • Built-in Temperature Sensor: Includes automatic temperature compensation (Pt1000) for accurate readings under varying temperature conditions.
  • Resistant to Interference: Highly resistant to chemical substances like sulfides, ensuring stable and precise measurements without signal drift.
  • Fast Response Time: Reacts quickly to changes in dissolved oxygen levels, providing accurate and real-time data.
  • Low Maintenance: Longer service life and reduced maintenance requirements compared to traditional membrane-based sensors.
  • Ease of Use: Features a luminescence-based design with simple operation and maintenance, lowering overall operating costs.
  • Reliable Communication: Supports RS-485 interface with Modbus/RTU protocol for seamless integration into various monitoring systems.
  • Energy-Efficient and Durable Design: Designed with low-power consumption and anti-interference capabilities for reliable long-term use.

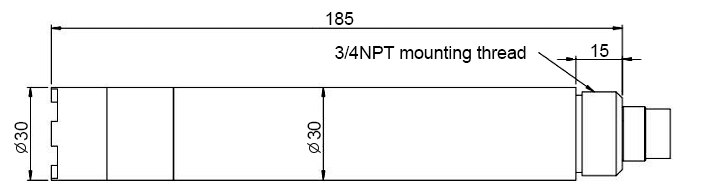

Dimension (Unit: mm)

Dissolved oxygen sensor size

Note: The sensor connector is a male M16-5 pole waterproof connector.

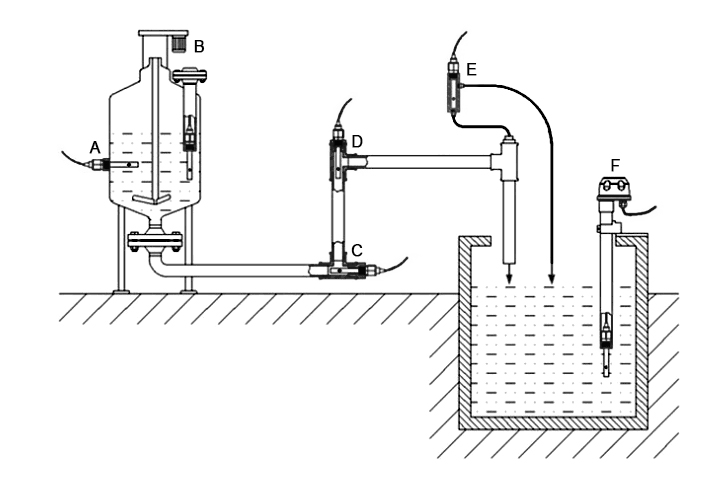

Installation Method

Turbidity sensor for water quality installation method

A B C
Sidewall Mount Top Flange Mount Pipe Turning Mount
D E F
Pipe Turning Mount Flow-through Mount Submersible Mount


Application

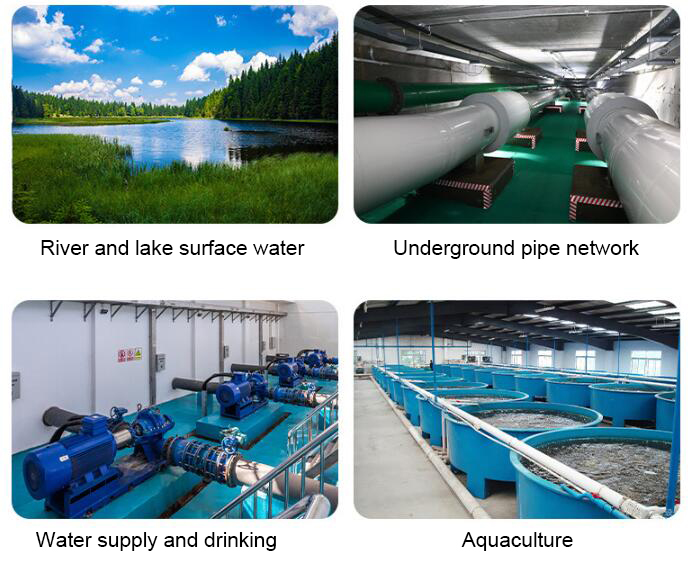

Turbidity sensor for water quality application

Tips: How does this sensor compare to traditional membrane-based dissolved oxygen sensors?

Unlike traditional sensors, this fluorescence-based sensor does not require electrolyte solutions or frequent membrane replacement, significantly reducing maintenance efforts and costs. It also has a longer lifespan and is unaffected by water flow or fouling, making it more reliable in long-term monitoring applications. The fluorescence method also provides faster response times and higher accuracy, especially in low-oxygen environments.
