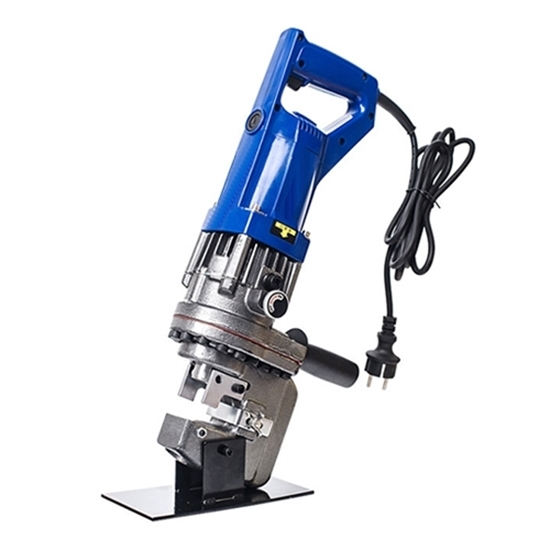

    Electric Hydraulic Hole Punch 10 Ton, 220V, 4A

    Electric hydraulic hole punch for affordable price. Voltage 110V (can be customizable) and 220V. Output 10 ton, motor power 900W and rated current 4A. Hydraulic metal hole punch with standard punching dies 6.5mm, 9mm, 13mm, 17mm, 20.5mm, and angle steel 4-6#. Iron/Steel Plate ≤6mm and copper or aluminum busbar ≤8mm. Throat Depth reach to 40mm and punching speed 2-3s.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Hydraulic hole punch machine with 110V (can be customizable) and 220V power supply. Throat depth reach to 40mm and standard punching dies 6.5mm, 9mm, 13mm, 17mm, 20.5mm. Power by 900W electric motor.


    Model ATO-MHP-20
    Output Force 10 Ton
    Rated Voltage 220V (customizable 110V)
    Rated Current 4A
    Motor Power 900W
    Max. Punching Thickness Copper/Aluminum Busbar ≤8mm
    Iron/Steel Plate ≤6mm
    Angle Steel 4-6#
    Throat Depth 40mm
    Punching Speed 2-3s
    Weight 12 kg
    Punching Dies Standard Configuration Φ 6.5mm, 9mm, 13mm, 17mm, 20.5mm.  1 set for each (includes upper die and lower die)


    1. Hydraulic hole punch with 900W strong motor power, widely used for punching metal plates such as angle iron, flat iron, copper, aluminum row, etc. Especially suitable for field work in electric power, construction and other industries.
    2. The hydraulic punching machine grip conforms to ergonomics and is comfortable to operate. It is suitable for drilling operations on various steel, iron, copper, aluminum plates, formed steel, channel steel, I-beam, etc.
    3. Portable hydraulic hole punching machine with oil filling port, easy maintenance.
    4. Portable hydraulic punch accurate positioning without deviation.

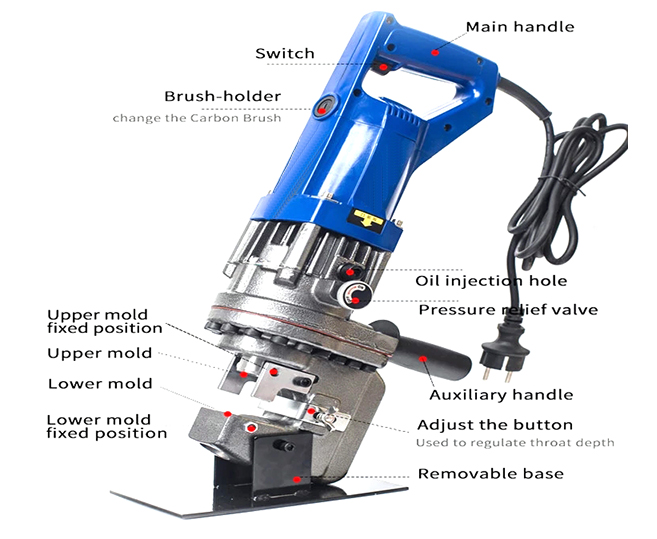

    10 ton electric hydraulic punch structure

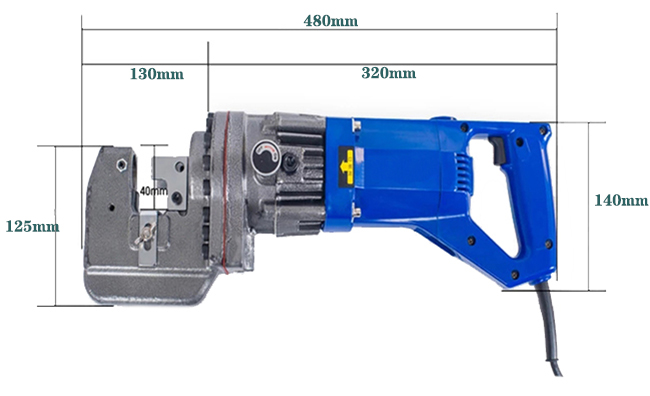

    10 ton electric hydraulic punch machine size

    10-ton hydraulic punch materials

    Tips: What are the hydraulic punch application?

    1. Connect the oil pump and the working head with a quick connector.
    2. Select the corresponding upper and lower molds, install the upper mold first and then the lower mold. When installing the upper mold, first unscrew the positioning screw to a certain position and then install the lower mold. Be sure to put it in place, and then tighten the positioning screw to work.
    3. Put the workpiece in place, close the oil return screw of the oil pump, and move the handle until the oil return screw is loosened after the work is completed. For example, when punching a thin metal plate, be sure to insert the return pad between the return tripod and the workpiece, otherwise the workpiece will get stuck on the mould.
