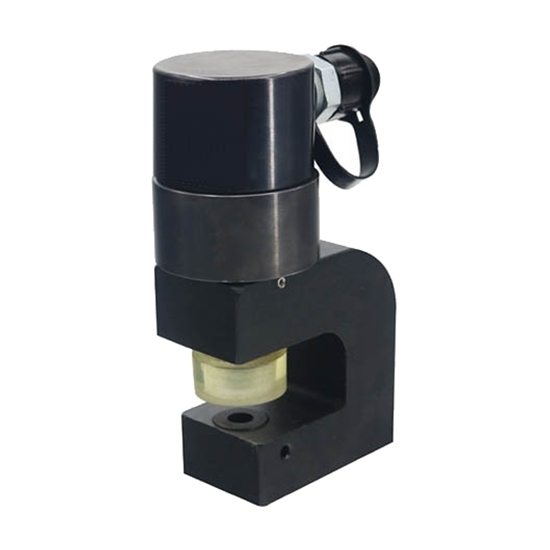

    Hydraulic Hole Punch Machine 10 ton

    5 out of 5 based on 1 reviews | Write a review
    Hydraulic hole punch machine for sale, made of iron sheet and copper busbar material, optional maximum punching thickness 6mm or 4mm. Portable hydraulic hole punching machine 5 ton/10 ton output force for selection, and standard dies 3/8 inch. Throat depth 40mm/35mm. Fast speed punching with accurate position without deviation. Hydraulic punching could avoid cutting scraps while punching hole. It is much safer and clearer while operation.
    SKU: ATO-HPUN-10
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Hydraulic punching machine 5 ton/10 ton can be selected with iron sheet and copper busbar. Standard dies reach 3/8 inch and throat depth 40mm/35mm. Work with pumps.

    Note: The hydraulic punching machine needs to be used with a pump. (Hydraulic hand pump ATO-CP-180ATO-CP-700 or hydraulic electric pump ATO-HHB-700A is recommended).


    Model ATO-CH-18D ATO-CH-18F
    Output Force 10 Ton 5 Ton
    Max. Punching Thickness Iron Sheet 6mm 4mm
    Copper Busbar 6mm 4mm
    Throat Depth 40mm 35mm
    Size 320*140*230mm 320*140*230mm
    Weight 4.6 kg 3.3 kg
    Default Punching Dies Configuration Φ 10.5mm, 1 set (includes upper die and lower die)
    Optional Punching Dies Φ 6.5mm, 8.5mm, 12.5mm, 14.5mm, 16.5mm, 18.5mm


    1. Hydraulic punching machine optional 5 ton/10 ton output force, maximum punching thickness 6mm or 4mm for selection, is a special tool for punching holes during busbar installation.
    2. Hydraulic hole punch needs to be used with matching pumps (manual pumps, foot pumps, electric pumps).
    3. Portable hydraulic hole punching machine standard dies 3/8 inch and throat depth 40mm/35mm, suitable for punching metal materials such as aluminum and copper bars.
    4. The punching operation is fast, and the positioning is accurate without deviation, which can make punching dies of various shapes.
    5. Hydraulic punching can avoid the chips generated during drilling, and it is safer and cleaner during operation and it can be carried to the site or fixed in the factory for large-scale punching operations.
    6. One set of 10.5, 13.8, 17.5, 20.5mm punching dies in the standard accessories. Packing box and one set of grinding tool fixing wrench and hexagonal wrench.

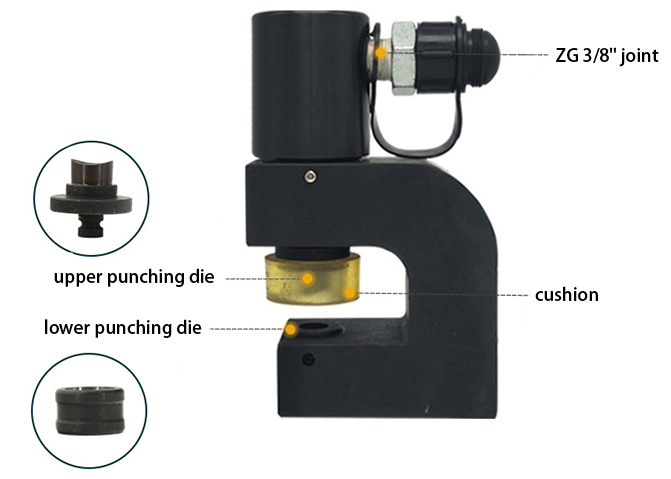

    10 ton hydraulic hole punch machine structure

    Tips: How to maintain hydraulic punch machine?

    1. Before starting the machine, it is necessary to observe whether the levelness of each part of the machine is intact and whether the electrical contacts are intact. Before working, observe whether the punching machine is lubricated, start the machine operation, if there is no bad phenomenon, it can work.
    2. Do not overload, and rebuild hardened steel is strictly prohibited. Staff should wear protective gear and gloves, sandals and slippers are strictly prohibited.
    3. The drilling machine needs to be refueled regularly, and it is strictly forbidden to skew. Pay attention to the work of protecting fingers during work. When the plate is rushed to the final pressure on the plate, it is forbidden to use scissors to cut. In the process of disassembling the machine, it is forbidden to knock on the parts.
    4. Stacking of large quantities of other items in the work area is prohibited and must be parked while cleaning. After the work is over, the power should be turned off and the site should be cleaned up. Strictly control the size of punched paper, beyond the range of forbidden punching.
    Existing reviews of Hydraulic Hole Punch Machine 10 ton
    Hydraulic punch did well
    I am punching 3/8 inch holes in aluminum in less than 15 seconds each. Does very well for its intended purpose. Satisfied that this hydraulic punch operation smooth and no leaks. Very easy to use. I am really satisfied with this item.
    From: jorel | Date: 22/02/2023
