Electromagnetic Relay, 3PDT, 12/24/110/220V coils

5 out of 5 based on 1 reviews | Write a review

$52.99

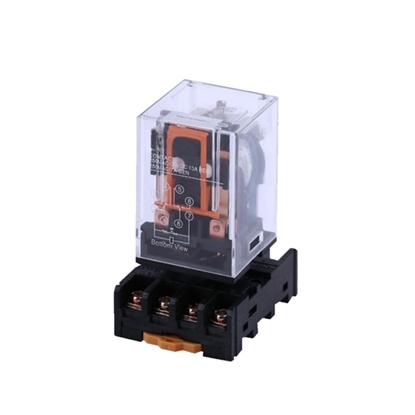

General purpose electromagnetic relay, 11 pins, 3PDT contact type, available for the common coil voltages of 12V DC, 24V DC, 110V AC and 220V AC, rated load 5A/240V AC 28V DC, compact size, favorable price and high quality.

Coil Voltage(V) *

SKU: ATO-EMR-HH53P

Qty:

30-day Returns

Free Shipping

Delivery date: 2-12 days

Overview
Related Video

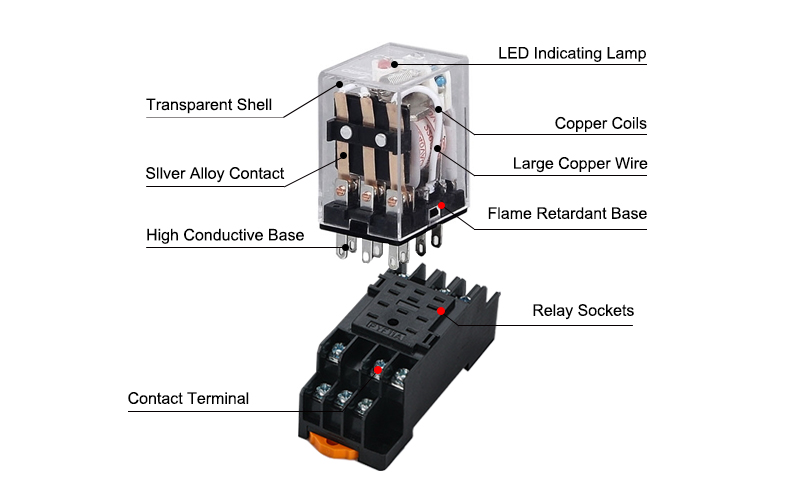

11-pin electromagnetic relay has 3PDT contact form with clear housing, generally used to switch circuit in a wide applications like electronic equipment, communication equipment, automatic equipment and tools etc.

Specification

Basics	Model		ATO-HH53P/MY3NJ (Relay with Socket)
	Dimension (LWH)		27×21×35mm
	Weight		35g
	Ambient Temperature		-25℃~+55℃
	Terminal Type		Plug-in
	Number of Pins		11
Technical Parameters	Contact Form		3PDT
	Contact Material		Silver alloy
	Contact Capacity (Resistive load)		5A/28V DC, 5A/240V AC
	Coil Power		DC≤0.9W, AC≤1.2VA
	Coil Voltage (Optional)		12V DC, 24VDC, 110V AC, 220V AC
	Pick-up Voltage at 23℃		DC≤75%, AC≤80%
	Drop-out Voltage at 23℃		DC≥10%, AC≥30%
	Contact Resistance @6V DC 1A		≤100MΩ
	Dielectric Strength	Between open contact	≥1000V AC 50Hz/1min
		Between adjacent contact	≥1000V AC 50Hz/1min
		Between coil & contact	≥1500VAC 50Hz/1min
	Leakage current		≤1mA
	Insulation Resistance (MΩ)		≥500MΩ at 500V DC
	Service life	Electrical	10⁵Times (Frequency: On 1 Time/1s, Off 1 Time/1s)
		Mechanical	10⁶Times (Frequency: 300 Time/1min)

Note: Here just shows the contact form 3PDT, and another contact forms 3NO and 3NC are still available. What's more, please kindly note that other coil voltages are also available(DC: 6-220V; AC: 6-380V). If you have any requirments, please don't hesitate to contact us.

Dimensions & Connection Diagram

Details

Tips: What’s an electromagnetic relay (EMR)?

Electromagnetic relay is an electronic controller fitted with control system (also known as input circuit) and controlled system (also known as output circuit). EMR is often applied to automatic control circuit. As an automatic switch, electromagnetic relay tries to control larger current and higher voltage by smaller current and lower voltage. Therefore, it plays an important role in automatic adjustment, safety protection and circuit conversion.

Contactors are widely used in industrial equipment. It is a common application to control 110V/120V/220V/240V AC contactors with 12V/24V/36V DC relays. Users can use this method to control unsafe voltages. This video will show you how to use AC contactor with a relay at safe voltage.

Electromagnetic Relay Applications

Electromagnetic relays are key components in electrical engineering and play an important role in various applications. In this video, we will look at why electromagnetic relays are important in our lives.

Essential Electronic Components in Electrical Systems

Welcome back to the ATO Channel, you go-to source for electrical and industrial automation insights.

Electromagnetic Switches: Relays VS. Contactors

In this video we will try to clear the confusion many people have between relays and contactors by showing you how to tell the difference based on five criteria: Definition, Capacity, Structure, Contacts and Applications.

Relays vs Circuit Breakers: What’s the Difference

In this video, we've described the difference between a relay and a circuit breaker as well as explaining their basic working and operation by means of animation. If you find this video helpful, please LIKE it and SHARE with your friends. Don't forget to check out the purchase links above if any featured items're of your interest.

3-phase motor reverse connection

In this video, we have 120V/220V/240/380V/415V AC motors with power from 1hp~100hp, widely used to drive various industrial machines such as fans, pumps, machine tools.
