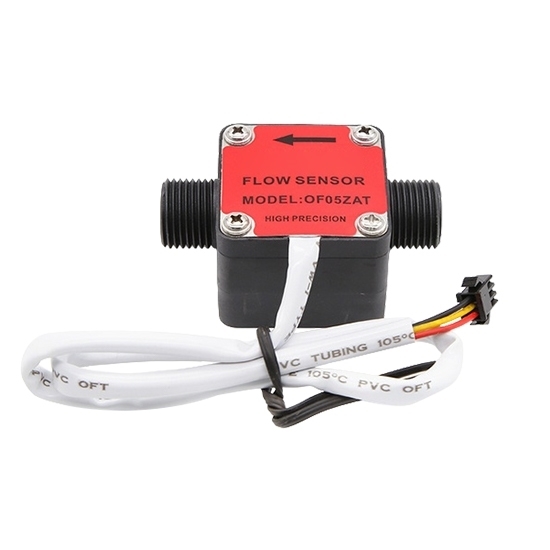

Gear Flow Sensor for Water/Diesel, 0.5-60L/min, DN8-DN25

5 out of 5 based on 1 reviews | Write a review
$79.93
High-precision gear flow sensor has a variety of flow ranges (0.5~5 L/min to 3~60 L/min) and multiple interface options (G1/4 to G1), supports 5~24V DC power supply, and the gear flow sensor has an accuracy of less than 1%FS. It is suitable for flow measurement of low-viscosity liquids such as water and diesel.
*
SKU: ATO-FS-AFD7
30-day Returns
Free Shipping
Delivery date: 6-12 days

The operating temperature range of this gear flow sensor is 0~80°C and the humidity range is 35~90%RH (no frost). Its housing is sturdy, compact, and long-term wear-resistant, and it can provide flow measurement in harsh industrial and outdoor environments.

Features

  • The gear flow sensor is compact in design, saves space, is easy to install, and adapts to a variety of installation environments.
  • It adopts the volumetric flow measurement principle, accurately calculates the fluid flow rate by rotating gears, and provides high-precision measurement data.
  • The gear is inlaid with stainless steel beads to effectively enhance wear resistance and extend service life.

Specification

Model ATO-AFD7005 ATO-AFD7013 ATO-AFD7020 ATO-AFD7050 ATO-AFD7060
Flow range (L/min) 0.5~5 0.7~13 0.8~20 0.5~50 3~60
Thread type G1/4 G3/8 G1/2 G3/4 G1
Pipe diameter DN8 DN10 DN15 DN20 DN25
Using temperature range 0~80℃
Using humidity range 35~90%RH (no frost)
Accuracy Within 1%FS (liquid is water or diesel)
Repeatability <2.0%
Contact liquid material ETFE/PPS/SuS304 (stainless steel)
Pressure level Water pressure below 1.75Mpa
Ambient temperature -25~80℃
Ambient humidity 25~95%RH
Power supply 5~24VDC
Signal output Three-wire system 5~24V, GND, signal output

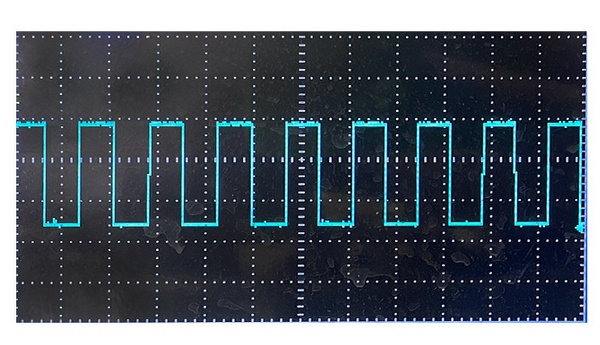

Output pulse high level Greater than DC 4.5V (input voltage DC 5V)
Output pulse low level Less than DC 0.5V (input voltage DC 5V)
Output pulse duty cycle 50±10%
Output rise time 0.04μs
Output fall time 0.18μs
Flow-pulse characteristics Horizontal test pulse frequency F(Hz)=[K*Q]±1%(horizontal test) (K is the frequency coefficient, Q is the flow rate L/min)

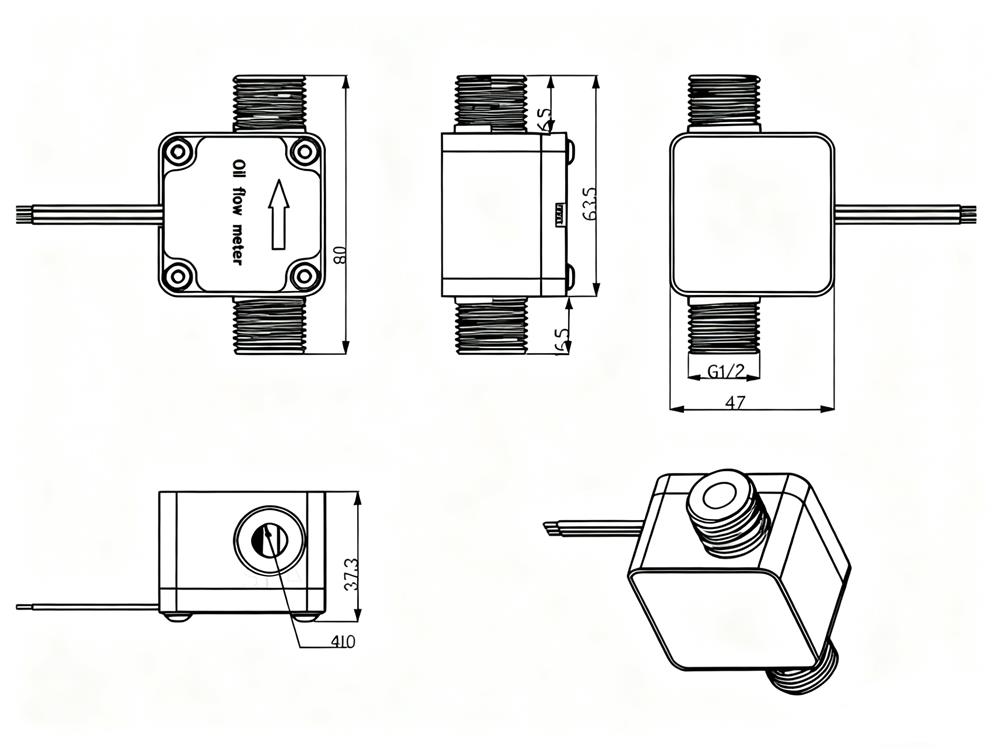

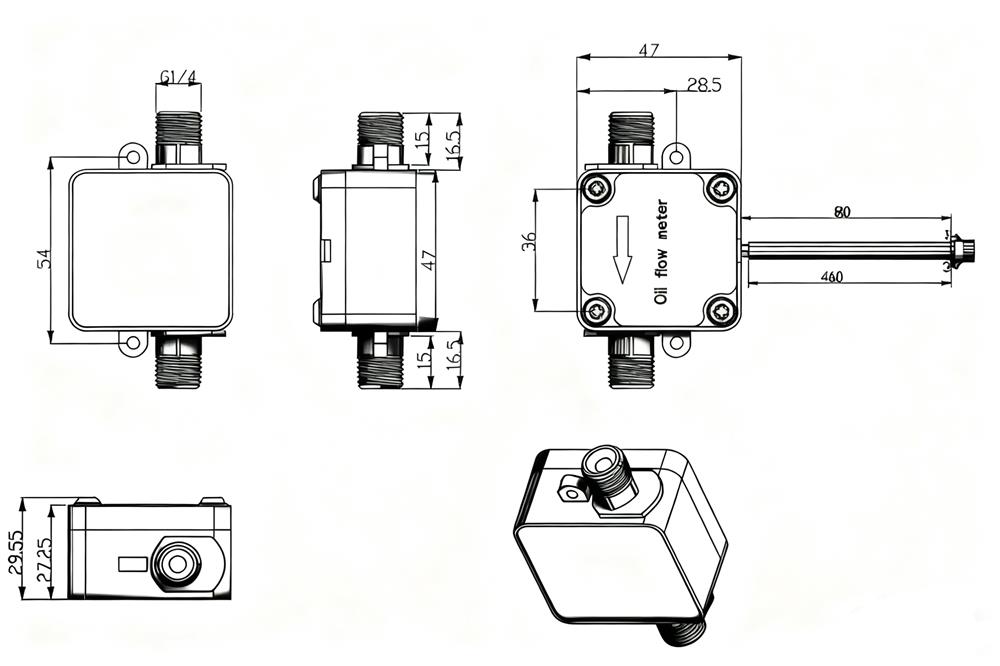

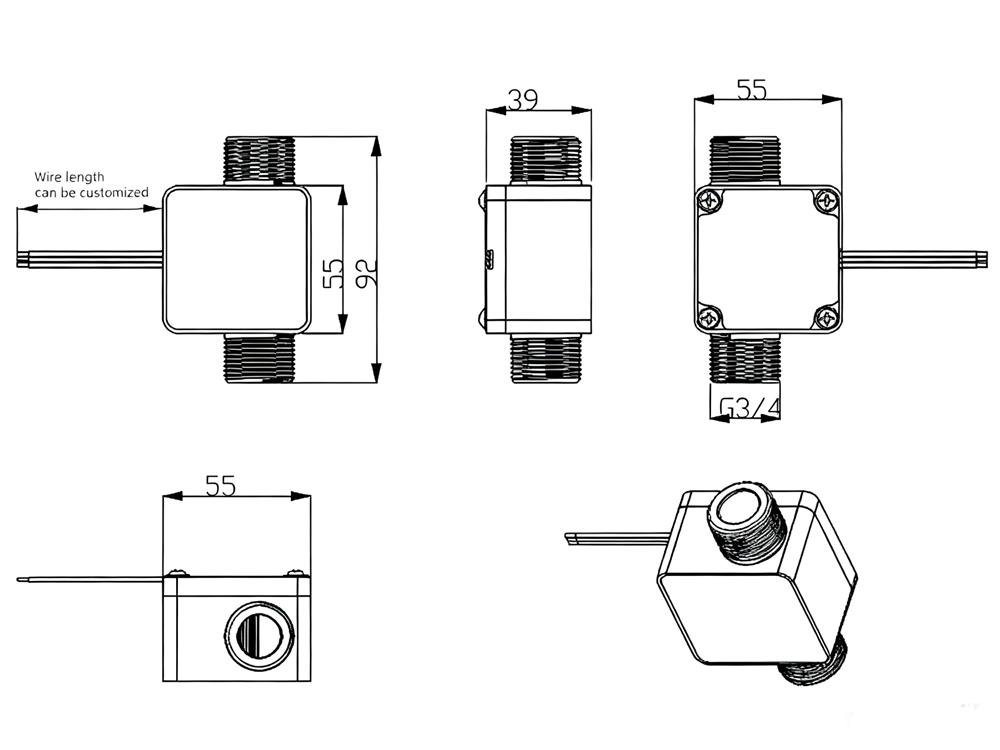

Dimension (mm)

Gear flow sensor dimension

Model ATO-AFD7005 ATO-AFD7013 ATO-AFD7020 ATO-AFD7050 ATO-AFD7060
Body size (A) 60.5 67 79
Body height (B) 36.5 42.5 47.5
Internal thread (C) G1/4 G3/8 G1/2 G3/4 G1


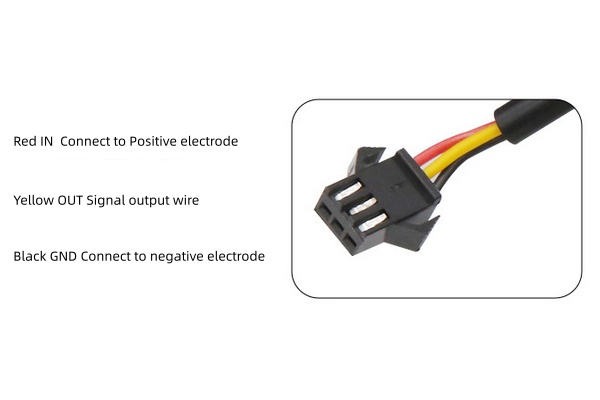

Pin Definition

Gear flow sensor pin definition

Line sequence Output pin description
1 brown Power supply positive 5~24V DC power supply
2 yellow Power supply negative
3 blue Signal output


Installation Instructions

When piping the gear flow sensor, use a wrench to pipe the metal part (pipe fittings) that is integrated with the piping. If a wrench is used on other parts, the flow switch may be damaged. In particular, a wrench cannot be used on the M12 connector. Otherwise, the connector may be damaged.

Note: Do not allow the sealing tape to mix into the pipe when installing the piping. Do not allow the piping to leak due to looseness when connecting. If tightening beyond the tightening torque range, the switch may be damaged. If assembled with less than the specified tightening torque, the connection thread may loosen.

Safety torque table

Thread G1/4 G3/8 G1/2 G3/4 G1
Applicable torque range 22~24 N·m 22~24 N·m 28~30 N·m 28~30 N·m 28~30 N·m
Torque safety range <200N·m


Applications

Gear flow sensor application

Tips: Working principle of gear flow sensor

Gear flow sensor is a flow meter that measures volume flow with high precision. Its working principle is the positive displacement principle. The flow of the medium causes the gear to rotate. The rotation of the gear drives the rotation of the magnetic pole, which is then scanned by the non-contact Hall sensor. Continuous rotation scanning generates continuous pulses, and finally generates a frequency signal that is proportional to the flow, and then the flow value is obtained. This gear liquid flow sensor based on the standard volumetric principle has a pair of meshing gears as rotors in the cavity. The two gears and the cavity can each form a fixed volume, called the standard volume. The flow rate is measured by calculating the number of flows that pass through the standard volume within a certain period of time.
