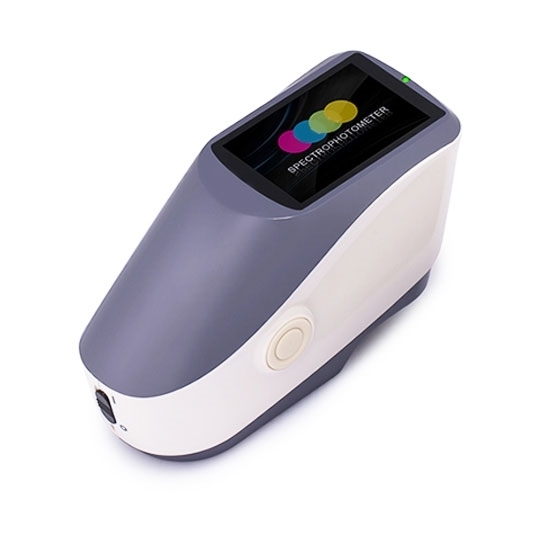

    Handheld Spectrophotometer, Caliber 4mm/8mm

    5 out of 5 based on 2 reviews | Write a review
    $5,168.75
    Professional handheld spectrophotometer with large digital LCD display, 4mm/8mm caliber, measuring fast and accurate measurement, light weight and portable colorimeter device.
    *
    SKU: ATO-CM-YS3060
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Portable handheld spectrophotometer is used for accurate color measurement in plastic electronics, paint inks, textile and garment printing, printing, ceramics, etc, caliber 4mm, manufacturer direct sales.

    Note: The user can perform black and white calibration through the standard black and white box of the instrument and refer to the user manual to complete the calibration independently.

    Specification:

    Model ATO-CM-YS3060
    Optical Geometry Reflect: di:8°, de:8° (diffused illumination, 8-degree viewing angle)
    Integrating Sphere Size 48mm
    Light Source Combined LED Light, UV Light
    Spectrophotometric Mode Concave Grating
    Sensor 256 Image Element Double Array CMOS Image Sensor
    Wavelength Range 400-700nm
    Wavelength Interval 10nm
    Semiband Width 10nm
    Measured Reflectance Range 0-200%
    Measuring Aperture Dual Aperture: 10mm/8mm & 5mm/4mm
    Specular Component SCI&SCE
    Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
    Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
    Other Colorimetric Index WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), TI(ASTM E313, CIE/ISO),Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness
    Observer Angle 2°/10°
    Illuminant D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
    Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
    Measuring Time 2.6s
    Repeatability MAV/SCI: ΔE*≤0.03
    Inter-instrument Error MAV/SCI: ΔE*≤0.15
    Measurement Mode Single Measurement, Average Measurement
    Locating Method Camera View Finder Locating
    Battery Li-ion battery. 5000 measurements within 8 hours
    Dimension 184*77*105mm
    Weight 600g
    Illuminant Life Span 5 years, more than 3 million times measurements
    Display 3.5-inch TFT color LCD, Capacitive Touch Screen
    Data Port USB/RS232
    Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude<2000m
    Storage Environment -20~50℃, 0~85%RH (no condensing)

    Packing List

    No. Name Quantity
    1 Spectrophotometer 1
    2 Power adapter 1
    3 Data cable 1
    4 Manual 1
    5 CD (including management software) 1
    6 White correction box 1
    7 Protection cap 1
    8 Universal test module (Optional match) 1
    9 Powder test box (Optional match) 1

    Details

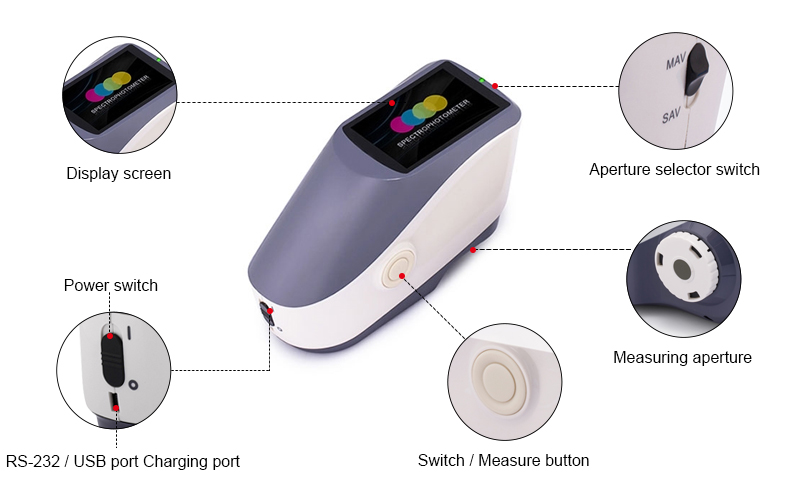

    Spectrophotometer Colorimeter Details

    Color Spectrophotometer Accessories

    Accessories



    Note:

    1. Universal Test Components
    Features: Powerful accessory with high sensitivity which is used to measure liquid, paste and powder.
    Dimension: L*W*H=190x190x85 mm

    2. Powder Test Box
    Features: Easy to use; Focus on measuring powder.
    Dimension: ø50X25mm

    Applications
    Colorimeter applications

    Tips: The importance of handheld spectrophotometer in color detection in production processes

    In the production process, if the color difference meter is used to measure the color of the sample, we will find that the color of the product changes due to the production process. What effect does the production process have on the final color change of the product?

    For example, heating causes a certain change in the yellowness, brightness, and gloss of the product. This change may be sharp or may occur as a gradual change. Cooling, which causes differences in product gloss and brightness; grinding, which causes differences in product brightness and surface color. Not only that, but the production process also contains many factors, such as humidity variation, overexposure, molding, extrusion, roll milling, brush removal, embossing, calendering, etc. If the color difference detection is not performed on these factors, it will cause the appearance of the product. The change. Mastering the production process and knowing some factors that cause the color change of the product to be out of control, the operator can monitor the production process with a simple color detection instrument to control the final color of the product.

    Therefore, it is not only economical and time-saving to control the color of products in the production process by using handheld spectrophotometer, but also important to maintain the reputation of products in front of customers. Color control is not difficult and can be done at any stage of the production process. However, it is best to start as early as possible with color control to ensure that the final color meets the requirements.
