    Heavy Duty Connector, 24 Pin, 500VAC / 16 Amp

    5 out of 5 based on 1 reviews | Write a review
    The wiring form of 24 pin heavy duty connector is screw connection. It has working current 16A, working voltage 500VAC, temperature range -40℃~+125℃ (-40℉~+257℉), insertion/withdrawal cycles 500 times and protection class IP65. 24 pin heavy duty connector has different 4 shell items for choice.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

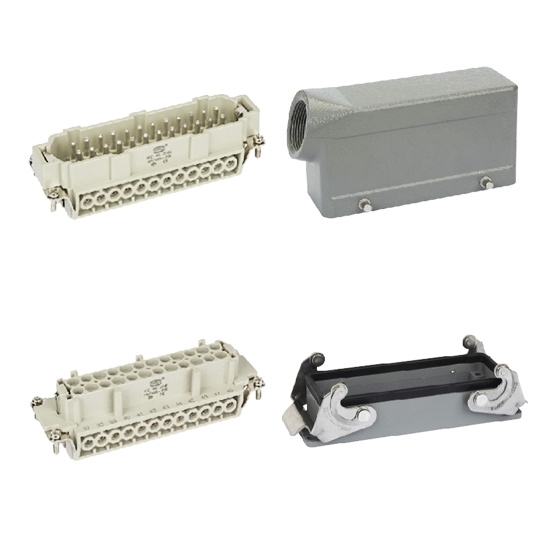

    24 pin heavy duty connector with working voltage 500VAC and current 16 Amp.


    Basic Model ATO-HDCN-HE-024-1 ATO-HDCN-HE-024-2 ATO-HDCN-HE-024-3 ATO-HDCN-HE-024-4
    Shipping weight 1kg
    Standard DIN EN 60 664-1, DIN EN 61 984
    Number of pins 24 pin + PE
    Certificate CCC, CE, ROHS, RU, CSA, TUV
    Inserts Item HE-024-M HE-024-M HE-024-M HE-024-M
    Working current 16A
    Working voltage 500V
    Rated pulse voltage urms 6kV
    Pollution degree 3 (C)
    Insulation resistance ≥1010Ω
    Material Polycarbonate
    Working temperature Range -40℃~+125℃ (-40℉~+257℉)
    Flammability according to UL94 V0
    Working voltage according to UL / CSA 600V
    Insertion / withdrawal cycles ≥500
    Contacts Item HE-024-F HE-024-F HE-024-F HE-024-F
    Material Copper alloy
    Surface treatment Silver/ Gold plating
    Contact resistance ≤1mΩ
    Wiring form Screw connection
    Wire specification 0.75-2.5mm2 AWG 18-14
    Tightening torque 0.5N·m
    Shell Hood item H24B-TS-M25 H24B-TG-M25 H24B-TS-M25 H24B-TG-M25
    Hood thread M25 M25 M25 M25
    Housing item H24B-AG H24B-AG H24B-SGR-2M25 H24B-SGR-2M25
    Housing thread - - 2*M25 2*M25
    Material Cast aluminum
    Surface treatment Powder-coated, gray
    Interlocking element Interlocking method: metal elastic pressing, material: galvanized iron
    Sealing element NBR
    Applicable temperature range -40℃~+125℃ (-40℉~+257℉)
    Flammability class V0
    Protection class IP65

    Dimension (unit: mm):

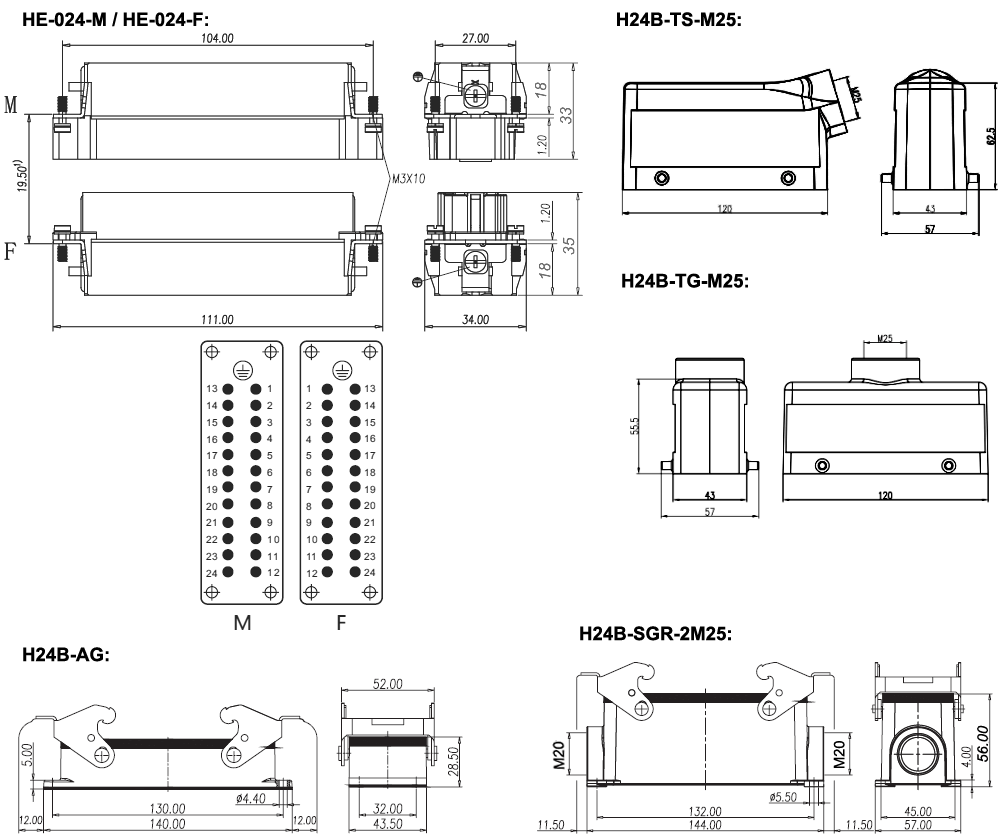

    24 pin AC 500V/16A heavy duty connector dimension
    Tips: What are the advantages of heavy duty connector compared with traditional connection methods?

    Heavy duty connector is designed for demanding applications. It consists of three important components: inserts, contacts and shell. The inserts and contacts form an electrical module to provide electrical connections for the device, while the housing is made of metal or thermoplastic material, with a strong structure that can provide reliable mechanical and environmental protection for the electrical connection. The waterproof and anti-corrosion characteristics of the metal shell ensure that the heavy duty connector can work in harsh environments and meet the needs of users' outdoor connections.
    The heavy-duty connector adopts a modular design and continuously expands functions according to the needs of the application. It not only realizes barrier-free and fast connection between modular equipment, but also guarantees the transmission of signals and power supply, and meets the diverse connection needs of users. For mechanical equipment manufacturers, it can save installation time, improve connection secure and reliable, and reduce overall production costs.
    Compared with traditional connection methods, using heavy duty connectors can save installation costs of 20-30% for processing centers, while increasing production efficiency. It is mainly used in industrial automation, equipment manufacturing, industrial system, control technology and other fields.
