    Heavy Duty Connector, 32 Pin, AC 250 Volt / AC 500 Volt, 16A

    $99.96
    Heavy duty connector 32 pin with AC 250V/500V working voltage, 10A working current, pollution degree III, applicable temperature range -40℃~+125℃ (-40℉~+257℉) can be used in harsh environments. 32 pin heavy duty connectors have the certificate of CCC, CE, ROHS, RU, CSA, TUV.
    SKU: ATO-HDCN-32P
    *
    Free Shipping Worldwide
    Delivery date: 6-20 days

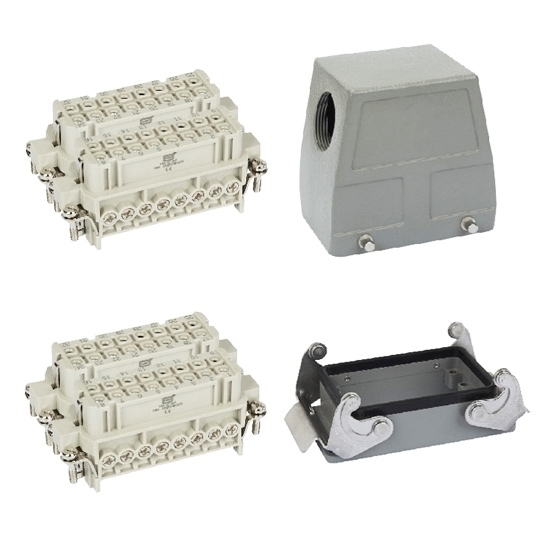

    32 pin heavy duty connector with working voltage AC 250 Volt / AC 500 Volt and current 16A.

    Specification:

    Basic Model ATO-HDCN-HA-032-1 ATO-HDCN-HA-032-2 ATO-HDCN-HA-032-3 ATO-HDCN-HA-032-4 ATO-HDCN-HE-032-1 ATO-HDCN-HE-032-2 ATO-HDCN-HE-032-3 ATO-HDCN-HE-032-4
    Shipping weight 1kg
    Standard DIN EN 60 664-1, DIN EN 61 984
    Number of pins 2*(16 pin + PE)
    Certificate CCC, CE, ROHS, RU, CSA, TUV
    Inserts Item HA-016-M (1-16)
    HA-016-M (17-32)
    HA-016-M (1-16)
    HA-016-M (17-32)
    HA-016-M (1-16)
    HA-016-M (17-32)
    HA-016-M (1-16)
    HA-016-M (17-32)
    HE-016-M (1-16)
    HE-016-M (17-32)
    HE-016-M (1-16)
    HE-016-M (17-32)
    HE-016-M (1-16)
    HE-016-M (17-32)
    HE-016-M (1-16)
    HE-016-M (17-32)
    Working current 16A
    Working voltage 250V 250V 250V 250V 500V 500V 500V 500V
    Rated pulse voltage urms 4kV 4kV 4kV 4kV 6kV 6kV 6kV 6kV
    Pollution degree 3 (C)
    Insulation resistance ≥1010Ω
    Material Polycarbonate
    Working temperature Range -40℃~+125℃ (-40℉~+257℉)
    Flammability according to UL94 V0
    Working voltage according to UL / CSA 600V
    Insertion / withdrawal cycles ≥500
    Contacts Item HA-016-F (1-16)
    HA-016-F (17-32)
    HA-016-F (1-16)
    HA-016-F (17-32)
    HA-016-F (1-16)
    HA-016-F (17-32)
    HA-016-F (1-16)
    HA-016-F (17-32)
    HE-016-F (1-16)
    HE-016-F (17-32)
    HE-016-F (1-16)
    HE-016-F (17-32)
    HE-016-F (1-16)
    HE-016-F (17-32)
    HE-016-F (1-16)
    HE-016-F (17-32)
    Material Copper alloy
    Surface treatment Silver/ Gold plating
    Contact resistance ≤1mΩ
    Wiring form Screw connection
    Wire specification 0.75-2.5mm2 AWG 18-14
    Tightening torque 0.5N·m
    Shell Hood item H32A-TS-M25 H32A-TG-M25 H32A-TS-M25 H32A-TG-M25 H32B-TS-M32 H32B-TG-M32 H32B-TS-M32 H32B-TG-M32
    Hood thread M25 M25 M25 M25 M32 M32 M32 M32
    Housing item H32A-AG H32A-AG H32A-SGR-2M25 H32A-SGR-2M25 H32B-AG H32B-AG H32B-SGR-2M32 H32B-SGR-2M32
    Housing thread - - 2*M25 2*M25 - - 2*M32 2*M32
    Material Cast zinc Cast zinc Cast zinc Cast zinc Cast aluminum Cast aluminum Cast aluminum Cast aluminum
    Surface treatment Powder-coated, gray
    Interlocking element Interlocking method: metal elastic pressing, material: galvanized iron/ stainless steel Interlocking method: metal elastic pressing, material: galvanized iron
    Sealing element NBR
    Applicable temperature range -40℃~+125℃ (-40℉~+257℉)
    Flammability class V0
    Protection class IP65

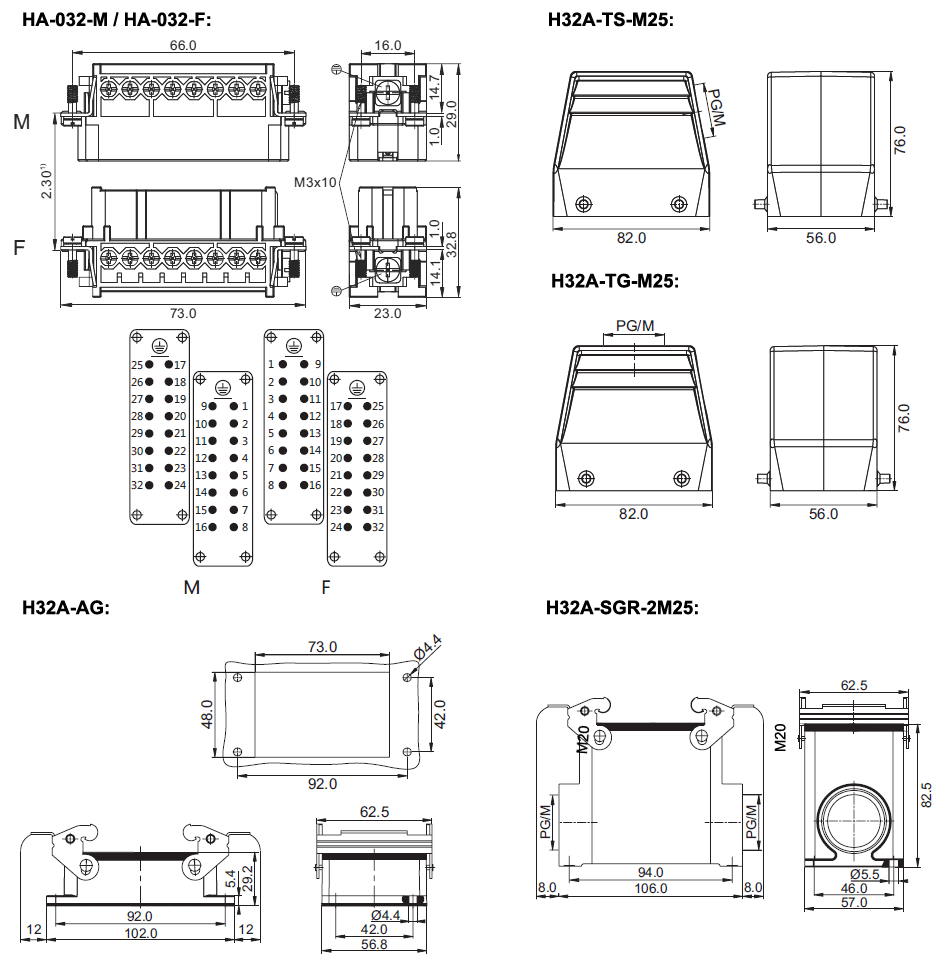

    Dimension for 32 pin 250 volt heavy duty connector (unit: mm):
    32 pin AC 250V heavy duty connector dimension

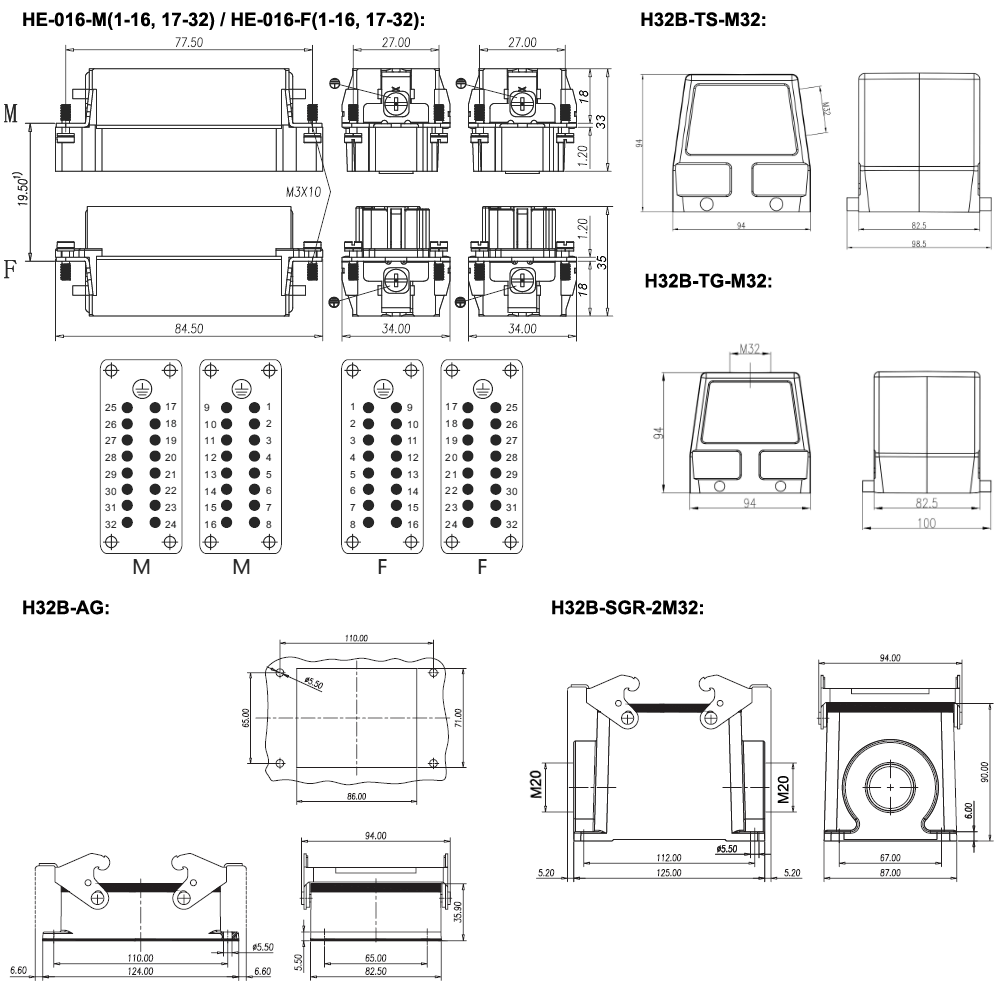

    Dimension for 32 pin 500 volt heavy duty connector (unit: mm):
    32 pin AC 500V heavy duty connector dimension
    Tips: Application of heavy duty connector in gearbox production line
    The gearbox assembly production line is a non-synchronous flexible conveying line, which uses aluminium alloy profiles and has a beautiful overall appearance. It adopts a combination of standard sections and non-standard sections and has strong adaptability, stable operation, low noise, safety and reliability, easy operation and maintenance management. Most types of presses and assembly machines are on-line type, with accurate positioning and accurate press-fitting. By changing the tooling, they can be compatible with different types of products. Adopt advanced electrical control system, collect pallet data through code carrier and reader. Form information network through industrial Ethernet and PLC, store real-time collected production information in database, and automatically generate various reports to realize product Quality traceability, monitoring and management. Large LED display, real-time display of production information, equipment status, notifications, clock, etc.
    The entire line construction of the customer is completed by the integrator, and after tedious assembly and debugging, it is transported to the gearbox manufacturer.
    So the following points are necessary:

    • It needs to be separated during transportation. Wiring requirements are convenient for plugging.
    • Improve connection reliability.
    • Simplified equipment wiring.

    The traditional solution uses a junction box to transfer signals and power supply. However, it is difficult to debug after the wires are unconnected and transported. By using the heavy-duty connector, not only the connection problem is solved, but also the convenient plugging enables customers to do more with less.
    The common types of heavy duty connectors are 3 pin, 16 pin, 24 pin and 32 pin.
