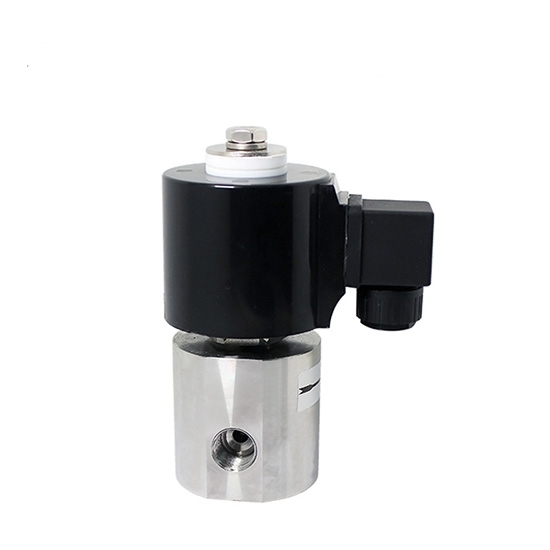

High Pressure Solenoid Valve, 2 Way, NC, AC 24V/110V/220V

5 out of 5 based on 1 reviews | Write a review
$219.30
Good price high pressure solenoid valve for sale online. AC solenoid valve with pilot and pressure between 0.1 MPa and 25 MPa. 1/4", 3/8" and 1/2" port size of hot water solenoid valve can be chosen. 2 way normally closed (NC) solenoid valve widely used in stage special effects, power equipment, medical equipment and electric power equipment.
*
*
*
*
*
SKU: ATO-HPSV-AC
30-day Returns
Free Shipping
Delivery date: 5-7 days

High pressure solenoid valve with pilot, operated piston construction for compress air machine, injecting plastic machine. Solenoid valve often used in medical equipment and drying equipment.

Specification:

(Normally open can be customized)

Model ATO-HKKB-08 ATO-HKKB-08 ATO-HKKB-10 ATO-HKKB-15
Port Size 1/4" 1/4" 3/8" 1/2"
Orifice 1.2 2 2.5 3
Cv 0.03 0.09 0.15 0.24
Min Pressure 0.1 MPa 0.1 MPa 0.1 MPa 0.1 MPa
Max Pressure (AC 24VA) 25 MPa 25 MPa 25 MPa 25 MPa
Max Pressure (DC 18W) 25 MPa 25 MPa 25 MPa 10 MPa
Seals Material PTFE
Body Material SS304
Coil S21B
Voltage AC 24V/110V/220V
Port Thread BSPP, BSPT, NPT
Medium water, hot water, compressed air, oil
Temperature -10 ℃ ~ 180 ℃
Tolerance ±10%


Dimension (Unit: mm)

High pressure solenoid valve dimension

Size A (mm) C (mm)
HKKB-1/4" 53 148
HKKB-3/8" 53 148
HKKB-1/2" 53 148

Tips: Precautions For Installation of High Pressure Solenoid Valve

  • Read the manual before installation.
  • The pipeline should be washed before use, the medium is not clean should be installed filter, to prevent impurities from interfering with the normal work of the valve.
  • A long time after the suspension of the solenoid valve, should be easy to use after the removal of condensation; When disassembling and washing, the parts should be put in order and then restored to their original state.
  • Solenoid valve is generally one-way work, can not be reversed, the arrow on the valve is the direction of movement of the pipeline fluid, must be consistent.
  • Solenoid valve in the frozen place to work again should be heated treatment, or set insulation measures.
  • Solenoid valve installation general valve body level, coil vertical upward, some products can be arbitrarily installed, but when the conditions permit the best vertical, in order to increase the service life.
