Industrial Endoscope for Android/Iphone, 6mm Probe, 360 Degree

5 out of 5 based on 1 reviews | Write a review

$669.70

Industrial endoscope for sale, with LED light and 18650 battery installation, supports Android, and apple systems. Come with a probe 360° rotation, Mega HD, endoscope camera that can self-adjust the viewing angle. IP67 waterproof borescope is a USB interface with high-temperature warning, reversible charging, and steering pixels. Widely applied in automotive repair, home appliance repair, pipeline inspection, and so on.

SKU: ATO-WSTC

Qty:

30-day Returns

Free Shipping

Delivery date: 10-20 days

Overview

Industrial endoscope with IP67 waterproof, 360 degree steerable probe, support Android/Apple system, can adjust viewing angle automatically. Touch and button dual operation. Led light make brightness adjustable. Easy to install and use.

Specifications

Model	ATO-WS-TC
Host	Size	220x78x50mm
	Battery	18650 Lithium battery (with protective plate)
	Battery life	More than 2 hours
	Store	Mobile phone internal storage
	Interface	USB/Type-C
	High-temperature protection	High-temperature intelligent alarm equipment automatically shuts down
	Compatible devices (series)	Android, IOS system
	Protection level	IP54
	Operating temperature	- 10°C~50°C
	Storage temperature	- 20°C~60°C
	Relative humidity	Maximum 90%, no condensation
Lens	Direction of view	Look directly
	Field of view (θ)	100°
	Depth of field (DOF)	10mm~200mm
	Pixel	1000000
	Lighting type	High-brightness ceramic LED
	Brightness level	Level 4
	Diameter(D)	6.0±0.2mm
	Guide	360° head swing
	Bending angle(a)	Maximum 210 degrees
	Protection level	IP67
	Operating temperature	-20°C~70°C
Insertion Tube	Length	1m
Insertion Tube	Material	Wear-resistant elastic metal hose
System	Operation method	Support mobile phone touch operation and key operation
	Support function	Photography, video recording, brightness adjustment, zoom, high temperature, etc.
	File format	Image JPEG (JPG) format, video mp4 format
	File management	Editable header and reporting functions
	Image control	Features freezing, zooming, taking photos, flipping, and video playback
	Supported languages	Seven languages including Chinese (Simplified and Traditional) and English
Accessories	Type-C cable, Micro-USB cable, Apple cable, 2500 mAh battery, mobile phone holder, lanyard, instrument bag, manual

Features

With IP67 waterproof function, the portable endoscope borescope has a USB interface and many good performances such as high-temperature warning, reversible charging, and steering pixel.
It can be operated by the APP button or the device button, which is convenient for the operator to use. Adjustable viewing angle, folding, and storage.
Equipped with Type-C cable, Micro-USB cable, and Lighting Apple cable, industrial endoscopes are compatible with Android and Apple systems. Install APP on your cell phone and connect the cable to the device to use it
Metal hose is wear-resistant and high-temperature resistant, which is good for maintaining stable signal transmission.
Digital endoscope has 360° probe steering, tungsten material is not easy to break, fatigue test 20,000+. With high brightness LED auxiliary light, brightness 4 levels adjustable, the endoscope camera can present the best image effect. The megapixel probe can be high-quality imaging, clear picture
IP67 protection level can be adapted to more used environments, such as automotive repair, home appliance repair, pipeline inspection

Details

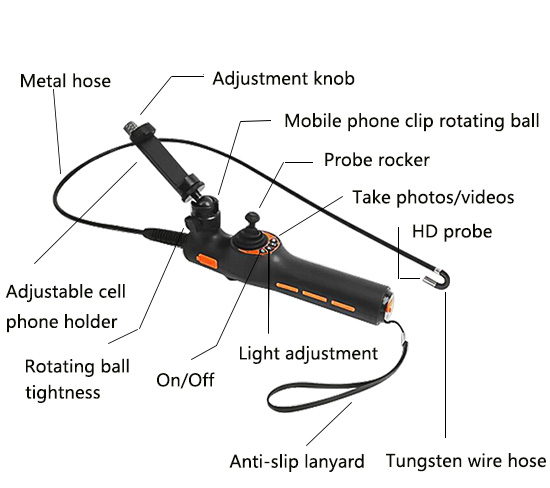

6mm probe endoscope structure

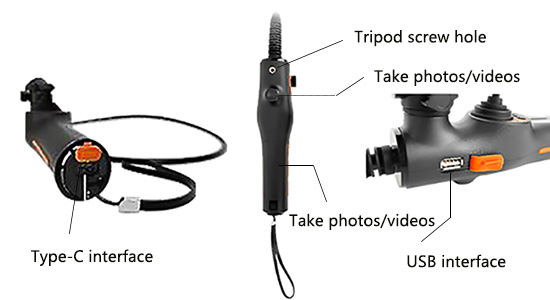

6mm probe endoscope component structure

Tips: What are the uses of industrial endoscopes?

Industrial endoscopes can be used in automobile parts casting, hydraulic casting, pump body and valve body casting, mechanical parts casting, pipeline fittings casting units, and are used to inspect casting sand inclusions, burrs, staggered holes, etc.
Industrial endoscopes can be used for regular inspections of aircraft turbines, blades, engines, weld surfaces, duct surfaces, internal combustion chambers, or body inspections, as well as in the research, development, and manufacturing of rocket engines.
Industrial endoscopes can be used for internal defect detection and inspection of storage tanks, heat exchangers, spherical tank trucks in petroleum refineries, pipeline facilities in the chemical industry, containers, cylinders, pipelines, etc. in special inspection institutes, and pressure vessel production units.
