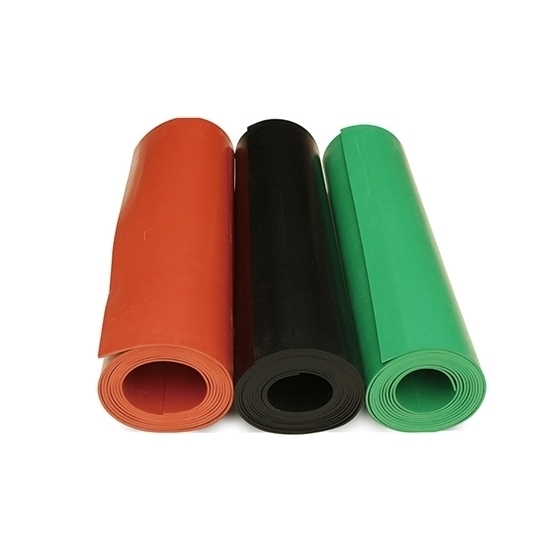

    Insulation Rubber Sheet, 6mm*15kV

    5 out of 5 based on 4 reviews | Write a review
    The extreme elasticity of rubber has become the first reason for the choice of the 6mm*15kV insulating rubber sheet. Good elasticity makes the insulating rubber sheet difficult to break during other processes such as stopping the floor, and has good stretch ability and extensibility.
    SKU: ATO-RS-01-6mm
    This product has a minimum quantity of 5
    Free Shipping Worldwide
    Delivery date: 6-12 days

    The most important thing in choosing rubber as an insulating plate is that the rubber has good insulation, which allows the insulating rubber plate to work normally under high voltage, without being affected by high voltage.

    Selection configuration table

    You can choose the rubber sheet you need according to your requirements. And 5kg is our minimum order quantity.

    Basics Model ATO-RS-01-6mm
    Thickness 6mm
    Width 1m
    Conventional specifications 50kg standard part
    Color Black Red Green
    Pressure resistance 15kV
    Technical Parameters Electrical insulation performance test 15kV
    Time required for power frequency withstand voltage test 1min
    actual test measurement time 2min
    Measured value of power frequency withstand voltage experiment ≥15kv
    Hardness (Shore A) 55-70
    Tensile strength (Mpa) ≥5.0
    Elongation at break ≥250%
    Fixed elongation (150%) permanent deformation ≤25%
    Hot air aging (70℃*72h): the reduction rate of tensile strength ≤30%
    Water absorptio ≤1.5%


    The insulating rubber sheet made of rubber is also waterproof, and the insulating rubber sheet is laid in the air, which effectively avoids the accident of water penetration and plays a role in maintaining the safety of the staff. Rubber is not only used in the power industry but also widely used in other industrial fields. The molecular chain does not contain polar groups and is a non-polar rubber. Only resistant to some polar solvents. Therefore, its oil resistance is very poor. The insulating rubber sheet has good alkali resistance, but is not resistant to strong acid.

    Existing reviews of Insulation Rubber Sheet, 6mm*15kV
    High quality insulation rubber sheet
    Our workshop has strict requirements for insulation rubber sheets. After receiving the goods, the staff took them for a high-voltage insulation test. The inspector said the rubber sheet is of high quality. It was basically undamaged under the specified voltage, and no breakdown occurred. Later I would consider ordering again.
    From: Keenon | Date: 13/07/2021
    Was this review helpful? Yes No (0/0)
    Good rubber
    Wow! simple, thin, easy to trim to any shape to reduce vibrations, cushion and insulate. This is a product any homeowner or apartment dweller should have on hand.
    From: Abys | Date: 06/05/2022
    Was this review helpful? Yes No (0/0)
    I buy rubber sheets to make a lot of things
    At first I bought the rubber to add it to the back of the speakers in the backyard to have less vibration. Now I use it a lot, for example to prevent scratches on a surface.
    From: Whitney | Date: 13/05/2022
    Was this review helpful? Yes No (0/0)
    Useful rubber sheet
    Its a product that, after one or two uses you find many uses you might not have thought about. I've used rubber sheet to cushion windows and block air flow.
    From: Daye | Date: 18/05/2022
    Was this review helpful? Yes No (0/0)
