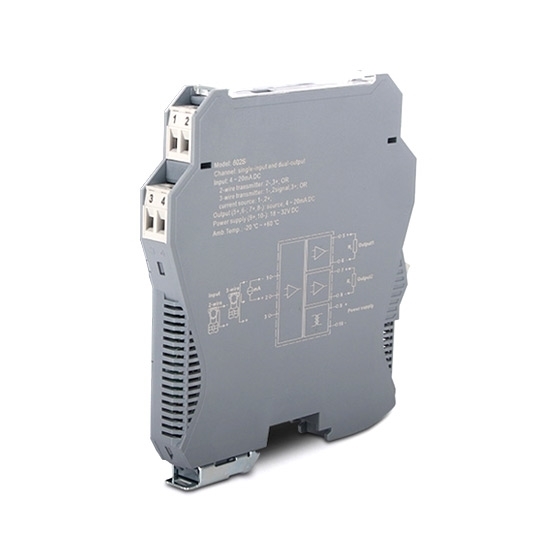

Loop Powered Signal Isolator 4-20mA/0-20mA/0-5V/1-5V/0-10V

5 out of 5 based on 1 reviews | Write a review
$108.26
Signal isolators ATO-SIGNI-602S series are the upgraded loop-powered signal isolators with smaller installation space and better anti-interfere ability (IEC 61326-3-1). Loop-powered signal isolator has a high accuracy of 0.1%FS and 35mm DIN rail installation structure. Now it is widely used for signal isolation/conversion/distribution of electrical cabinet, VFD, PLC control cabinet and pump station.
*
*
*
SKU: ATO-SIGNI-602S
30-day Returns
Free Shipping
Delivery date: 6-12 days

Signal isolator can convert 4-20mA/ 0-10mA/ 0-20mA/ 0-5V/ 1-5V/ 0-10V signal to standard signal or other customized signal.

Specification:

Model ATO-SIGNI-602S
Shipping weight 0.5kg
Dimension 12.7*110*118.9mm, 17.7*110*118.9mm
Type of signal * 4-20mA, 0-10mA, 0-20mA, 0-5V, 1-5V, 0-10V
Power supply DC 24V, DC 18-32V
Accuracy 0.1%FS
Number of input & output channels * 1 input channel & 1 output channel, 1 input channel & 2 output channels, 2 input channels & 2 output channels, 1 input channel & 3 output channels, 1 input channel & 4 output channels
Input impedance 100Ω
Response time ≤0.5s
Installation 35mm DIN rail

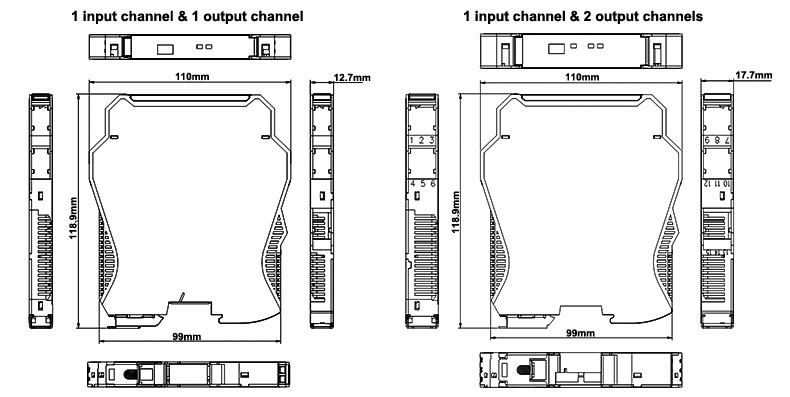

Dimensional drawing:
Loop powered signal isolator with usb interface dimensional drawing
Wiring diagram:
Loop powered signal isolator with usb interface wiring diagram
Tips


Existing reviews of Loop Powered Signal Isolator 4-20mA/0-20mA/0-5V/1-5V/0-10V
Good Signal Isolation at a Reasonable Price
Good signal isolation at a reasonable price, it can separate signals well, I bought two signal isolations and both are work great, signal isolator solves many signal interference problems.
From: Brenda | Date: 21/02/2021
Was this review helpful? Yes No (0/0)
Write your review for Loop Powered Signal Isolator 4-20mA/0-20mA/0-5V/1-5V/0-10V
  • Only registered users can write reviews
  • Bad
  • Excellent
Customers who bought this item also bought

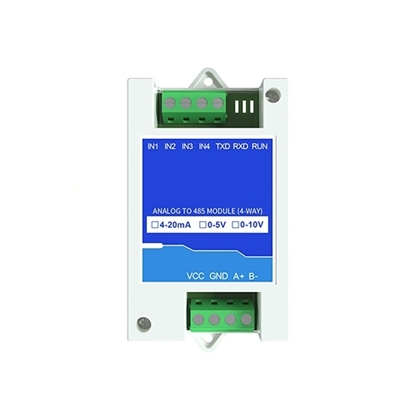

4-20mA/0-5V/0-10V to RS485 Converter, 4 Channel
